AMPLITEC Cavity Filter 868 MHz For Lora Flarm Booster Helium hotspot Network Miner HNT Filter 868MHz SMA 7M 4M SAW Cavity Filter
* Bandwidth 7M / 4M / 26M or customize.
* Insertion Loss ≤ 1.4 dB.
* Ripple ≤0.5dB.
* VSWR <=1.2dB.
* Input /output impedance 50ohm.
* Attenuation (dB) ≥ 55 @ DC-857 MHz ; ≥ 55 @ 876-3800 MHz.
Amplitec 4M/7M 868Mhz Cavity Filter For Helium Miner
To suppress interference signals outside the frequency bandwidth of the Lora wireless network.

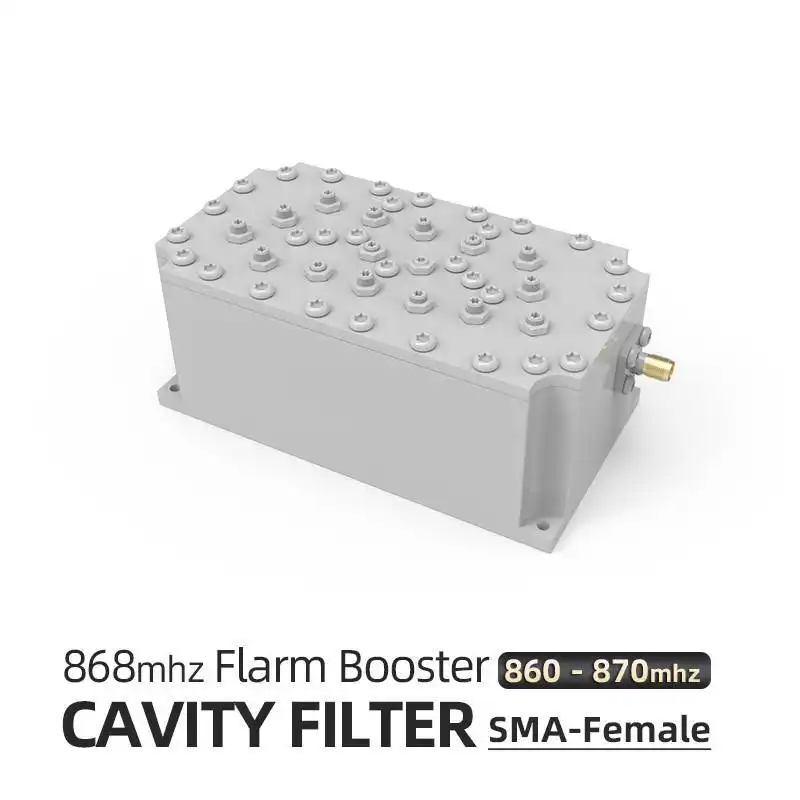

The FL868-S20 Cavity Filter is a band-pass filter for Helium IoT, the main function is to suppress interference signals outside the frequency bandwidth of the Lora wireless network. Compared with RF SAW Filter, Cavity Filter has stronger out-of-band suppression capability and smaller insertion loss.
By adding an CFL868-S20 cavity filter at the service antenna position of Helium Miner, it can effectively improve the receiving sensitivity of Miner and increase the access capability by 3~5 times.
|
Model |
FL868-S20 |
|
Frequency Range |
863 ~ 870 MHz |
|
Bandwidth |
7M / 4M or customize |
|
Connector Type |
SMA-Female or customized |
|
Insertion Loss |
≤ 1.4 dB |
|
Ripple |
≤0.5dB |
|
VSWR |
<=1.2dB |
|
Input /output impedance |
50Ω |
|
Max Power |
20W |
|
Attenuation (dB) |
≥ 55 @ DC-857 MHz ; ≥ 55 @ 876-3800 MHz |
|
Operating Temperature |
-40℃ ～ +85℃ |
|
Dimension |
130*60*45 mm |
|
Operating Humidity |
≤ 95% |
|
RF Connector |
SMA-Female |
* Bandwidth 7M / 4M / 26M or customize.
* Insertion Loss ≤ 1.4 dB.
* Ripple ≤0.5dB.
* VSWR <=1.2dB.
* Input /output impedance 50ohm.
* Attenuation (dB) ≥ 55 @ DC-857 MHz ; ≥ 55 @ 876-3800 MHz.
