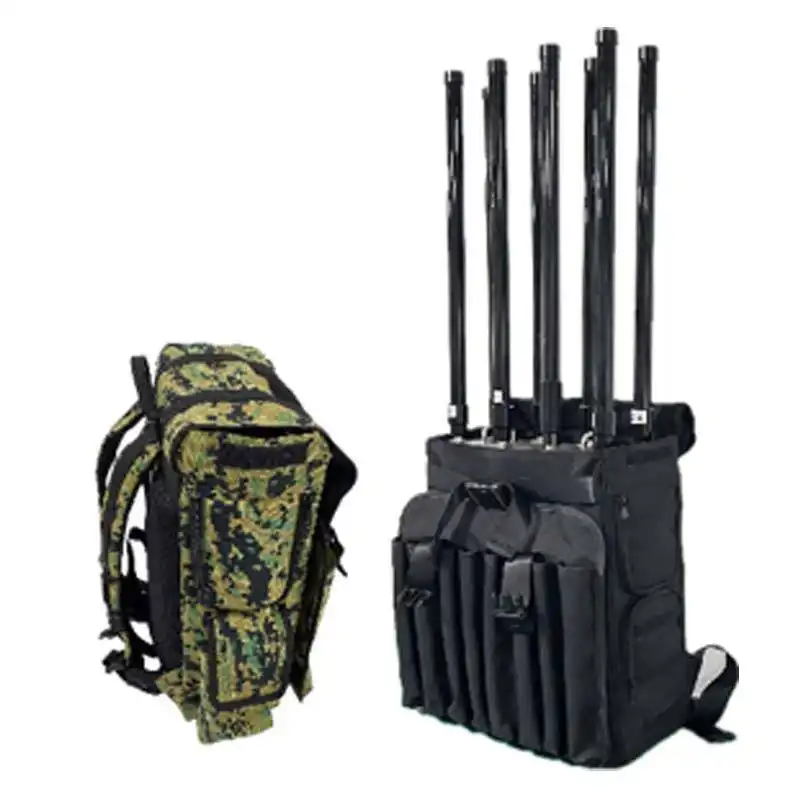

AMPLITEC Backpack type drone jammer
* Backpack style design, equipped with an operating handle, easy to operate,
* Using ultra-high frequency broadband seamless interference technology to quickly generate multiple suppressed signals,
* The countermeasure signal fully covers the remote control, image transmission, and positioning frequency bands of mainstream unmanned aerial vehicle products,
* 8-channel output, segmented control, arbitrary switching of countermeasure mode,
* Configure 8 omnidirectional antennas, with no dead corners in 360 degrees,
* Easy to operate, works immediately upon startup, no need for professional skills,
* The built-in battery can last for 1 hour and can be quickly replaced.
|
Model：B47-F8 |
||
|
Item |
Specifications |
|
|
Working Frequency |
Channel 1 |
420-450MHz |
|
Channel 2 |
840-930MHz |
|
|
Channel 3 |
1160-1280MHz |
|
|
Channel 4 |
1550-1630MHz |
|
|
Channel 5 |
2380-2500MHz |
|
|
Channel 6 |
5150-5300MHz |
|
|
Channel 7 |
5600-5730mhz |
|
|
Channel 8 |
5720-5880MHz |
|
|
Output Power |
50W per band |
|
|
Jamming Distance |
500 ~ 1000m |
|
|
Power Supply |
Built-in Lithium Battery 28V/20000mAh |
|
|
Power Consumption |
≤960 W |
|
|
IP Rating |
IP65 |
|
|
Ambient Humidity |
80% |
|
|
Operating Temperature |
-20 to 55℃ |
|
|
Color |
Black or Military camouflage |
|
|
Dimensions |
480x360x140 mm （exclude antenna） |
|
|
Weight |
≤ 18.5kg |
|
* Backpack style design, equipped with an operating handle, easy to operate,
* Using ultra-high frequency broadband seamless interference technology to quickly generate multiple suppressed signals,
* The countermeasure signal fully covers the remote control, image transmission, and positioning frequency bands of mainstream unmanned aerial vehicle products,
* 8-channel output, segmented control, arbitrary switching of countermeasure mode,
* Configure 8 omnidirectional antennas, with no dead corners in 360 degrees,
* Easy to operate, works immediately upon startup, no need for professional skills,
* The built-in battery can last for 1 hour and can be quickly replaced.
