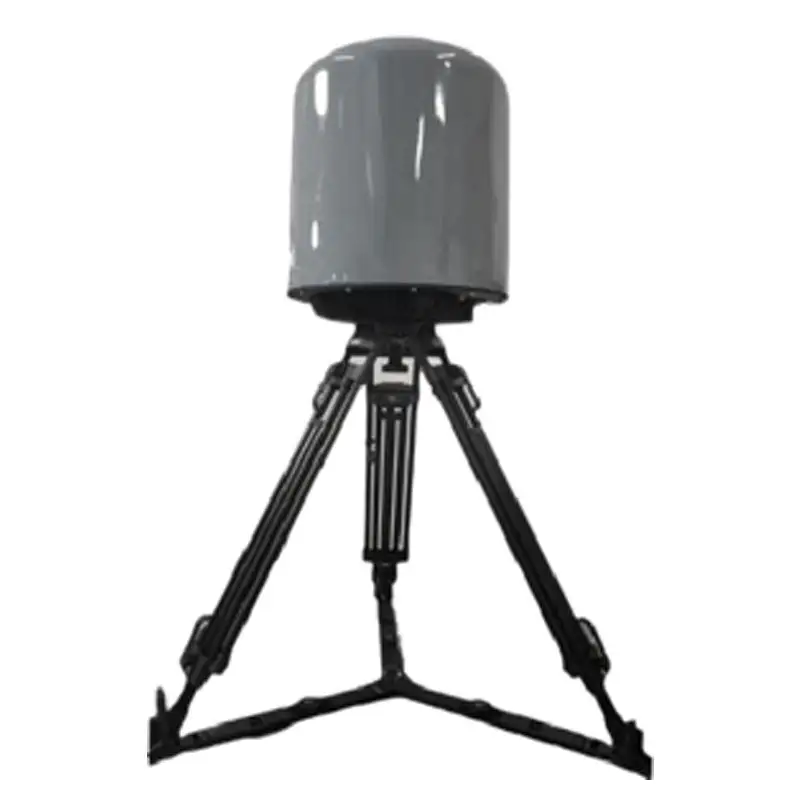

AMPLITEC Fixed unmanned aerial vehicle detector
* Passive broadband direction finding,
* it can locate the position of the drone,
* it can locate the position of the remote control (pilot),
* The system can plan and search for the action route of the drone operator, providing a "one click location navigation" function,
* A whitelist can be set, and the system will not alert when detecting a whitelist drone
|
Model：H2L |
|
|
Item |
Specifications |
|
Detecting Frequency Band |
100MHz ~ 6GHz |
|
Detecting Type |
360° Passive detecting |
|
Positioning Distance |
2 ~ 5 Km |
|
Positioning Error |
≤10m |
|
Positioning Refresh |
≤30s |
|
Tracking Number |
5 UAV at at same time |
|
Power Supply |
AC 110/220V |
|
IP Rating |
IP65 |
|
Ambient Humidity |
80% |
|
Operating Temperature |
-20 to 55℃ |
|
Dimensions |
750*800mm |
|
Weight |
≤20Kg |
* Passive broadband direction finding,
* it can locate the position of the drone,
* it can locate the position of the remote control (pilot),
* The system can plan and search for the action route of the drone operator, providing a "one click location navigation" function,
* A whitelist can be set, and the system will not alert when detecting a whitelist drone
