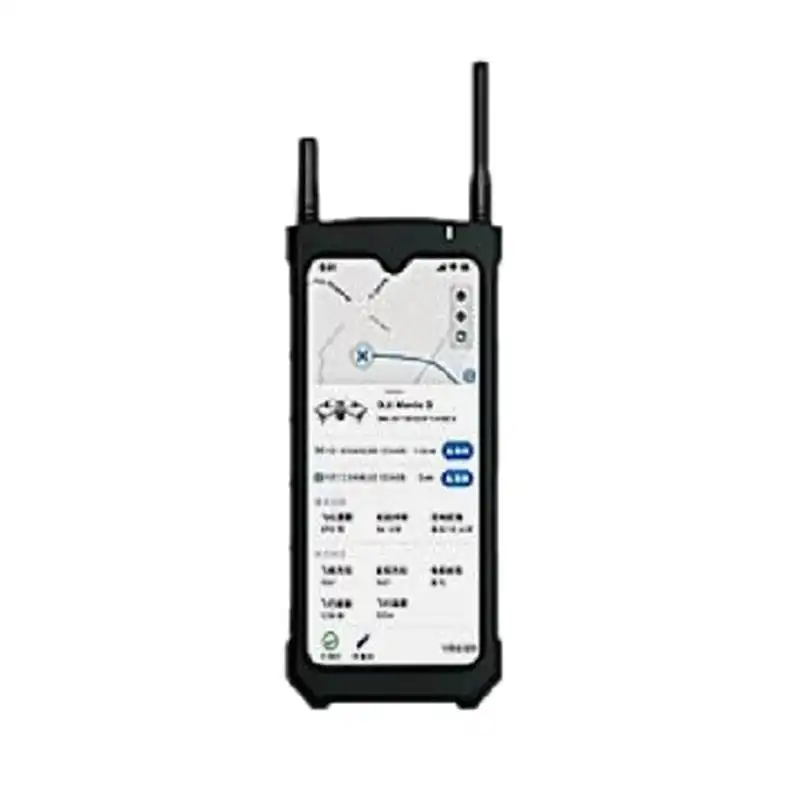

AMPLITEC Handheld drone detector Low loss
* Small size, light weight,
* it can locate the position of the drone
* it can locate the position of the remote control (pilot)
* The system can plan and search for the action route of the drone operator, providing a "one click location navigation" function,
* A whitelist can be set, and the system will not alert when detecting whitelisted drones
Model：H2L | |
Item | Specifications |
Detecting Frequency Band | 900MHz, 1.4G, 2.4G, 5.2G, 5.8G |
Detecting Type | OcuSync type UAV |
Positioning Distance | 1~6 Km |
Positioning Error | ≤10m |
Positioning Refresh | ≤30s |
Tracking Number | 5 UAV at at same time |
Screen Size | 22” |
Screen Resolution | 2400*1080 |
Screen Refresh Rate | 120Hz |
Power Supply | Built-in Lithium Battery |
Battery Capacity | 4 hours |
IP Rating | IP65 |
Ambient Humidity | ≤95% |
Operating Temperature | -20 to 55℃ |
Dimensions | L*W*H(520×415×224mm) |
Weight | ≤18Kg |
* Small size, light weight,
* it can locate the position of the drone
* it can locate the position of the remote control (pilot)
* The system can plan and search for the action route of the drone operator, providing a "one click location navigation" function,
* A whitelist can be set, and the system will not alert when detecting whitelisted drones
