AMPLITEC O37T-Mxxx Series Digital Multi-Carrier Public Safety and Emergency Communications Fiber Optic Repeater

* Support TETRA/P25/DMR and other public safety communication systems.

* Advanced FPGA digital filtering technology, programmable channel number and bandwidth.

* Digital fiber optic processing can transmit over long distances, up to 15KM.

* Automatic level control, limiting output power to ensure safe and stable coverage range.

* Support Local OMT monitoring by USB connection, support remote NMS monitoring by wireless modem.

* MTBF >100,000 hours.

    oops...!

    no product data.

    Go to homepage

    Amplitec O37T series digital multi-carrier public safety and emergency communication fiber optic repeater is a communication device that uses software radio technology to transmit radio frequency over optical cable. It is used to extend the coverage of public safety and emergency communication systems such as TETRA, DMR, PMR, P25, etc.

    The O37T digital multi-carrier public safety and emergency communication optical fiber repeater consists of two parts: the main unit (MU) and the remote unit (RU).

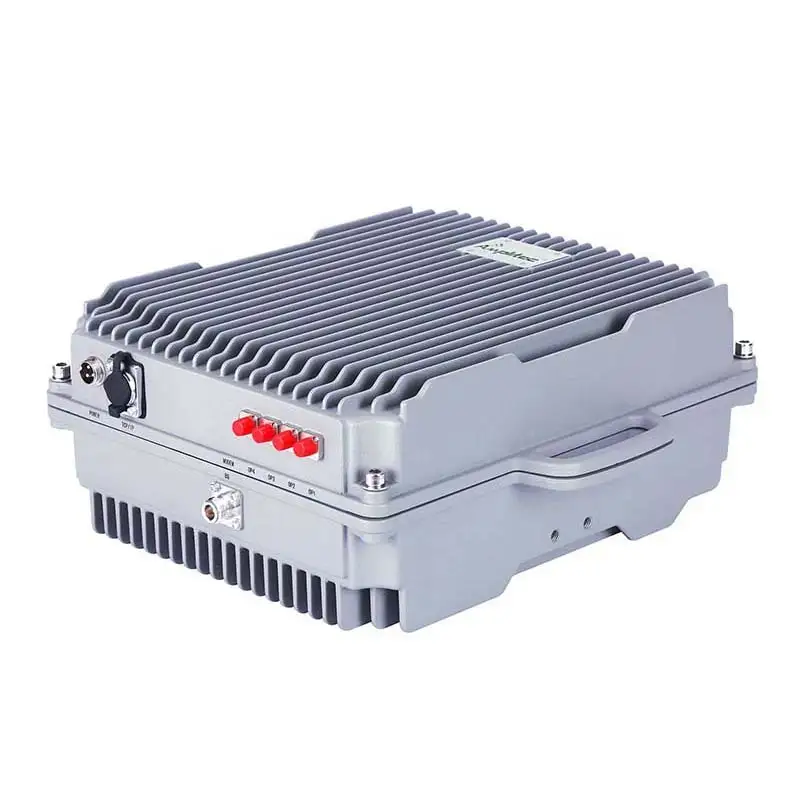

    The main unit (MU) adopts high-efficiency aluminum alloy die-casting chassis structure, reaching IP65 protection level, and can be mounted on indoor walls or outdoor poles. The main unit (MU) is equipped with four 1.25GB/S optical interfaces, one USB local monitoring interface, one RJ45 remote monitoring interface and one N-Female RF interface.

    AMPLITEC O37T-Mxxx Series Digital Multi-Carrier Public Safety and Emergency Communications Fiber Optic Repeater 3

    The remote unit (RU )also adopts high-efficiency aluminum alloy die-casting chassis structure, reaching IP65 protection level, and can be mounted on indoor walls or outdoor poles. The remote unit is equipped with two 1.25GB/S optical interfaces, one USB local monitoring interface and one N-Female RF interface.

    AMPLITEC O37T-Mxxx Series Digital Multi-Carrier Public Safety and Emergency Communications Fiber Optic Repeater 4

    The main unit (MU) and the remote unit RU are connected by an optical cable. The main unit (MU) receives the Down Link RF signal from the TETRA, DMR, PMR, P25 and other communication base stations through Donor antenna coupling, and then converts it into a digital CPRI optical signal and transmits it through optical fiber to the remote unit (RU.) The remote unit (RU )converts the digital CPRI optical signal transmitted from the MU into an RF signal, amplifies and transmits it to the coverage area through the antenna. Conversely, the remote unit (RU )receives the Up Link RF signal from the communication terminal through the antenna, and then converts it into a digital CPRI optical signal and transmits it through optical fiber to the main unit(MU). The main unit (MU) converts the received digital CPRI optical signal back into an RF signal, amplifies it, and transmits it back to the base station through Donor Antenna.

    The networking diagram of the main unit (MU) and the remote unit (RU) are very flexible,supporting star networking, chain networking, and star-chain hybrid networking. The main unit (MU) can connect four remote units (RU) in a star configuration, and the remote unit (RU) can connect multiple remote units(RU) in a chain configuration, adapting to various scenarios.


    The O37T Mxxx series fiber optic repeater has multiple models suitable for public safety and emergency communication systems in various frequency bands. In addition, other frequencies can be customized according to customer needs.

    Model

    Frequency of Up Link

    Frequency of Down Link

    O37T-M380

    380 ~ 385 MHz

    390 ~ 395 MHz

    O37T-M390

    385 ~ 390 MHz

    395 ~ 400 MHz

    O37T-M400

    415 ~ 415 MHz

    420 ~ 425 MHz

    O37T-M420

    415 ~ 420 MHz

    425 ~ 430 MHz

    O37T-M500

    500~ 505 MHz

    485 ~ 490 MHz


    Item

    Up Link

    Down Link

    Frequency

    Customizable

    Customizable

    Operation Bandwidth

    5MHz

    5MHz

    Number of Channels

    1 ~ 16

    1 ~ 16

    Bandwidth of Channels

    12.5/25KHz Optional

    12.5/25KHz Optional

    Gain

    80±2dB (MU+RU)

    85±2dB (MU+RU)

    Output Power

    30±2dBm (MU)

    37dBm±2 (RU)

    Gain attenuate

    1~25dB, Step of 1dB(MU or RU)

    ALC control Range

    30 dB

    30 dB

    VSWR

     1.5

    Spurious

    <-13 dBm (2 Carrier )

    Spurious emission

    ≤-36dBm @ 9KHz~1GHz,

    ≤-30dBm @ 1GHz~12.75GHz

    ORx / OTx Wavelength

    1310 nm / 1550 nm (WDM)

    Noise figure

    ≤9dB (1 Master Unit and 1 Remote)

    Time Delay

    ≤35 μS @12.5K

    Monitoring

    Local

    Via USB Connection Local OMT

    Remote

    Via Modem Connection NMS

    Remote & Local Control

    1.UL&DL Gain

    2.Working Frequency

    3.Sub band ON/OFF

    4.Temperature Alarm Level Limit

    5.UL/DL Output Over Power Alarm Level Limit

    6.DL Output Under Power Alarm Level Limit

    7.DL VSWR Alarm Level Limit

    8.Alarm Enable

    9.UL&DL PA ON/OFF

    10.Bandwidth mode

    Remote & Local Monitoring

    1.UL&DL Output Power

    2.Temperature

    3.Alarms(Over Temp Alarm,AC Power Alarm,Low Battery Alarm,UL/DL Power Alarm,LD/PD Alarm,Door Alarm,VSWR Alarm)

    4.UL&DL PA ON/OFF

    5.Working Frequency

    6.Sub band ON/OFF

    7.Bandwidth Mode

    Optical transmit power

    -2 ± 2dBm

    Optical receive sensitivity

    ≤-13dBm

    Optical transmission

    15 KM

    optical interface

    LC/LC or FC/FC

    I/O Impedance

    50Ω

    RF Port Connectors

    N-Female

    Humidity

    <90%

    Operating Temperature

    -10℃ ~ +55℃

    Power supply

    AC 100~264V/ 50~63Hz

    Power consumption

    50W@ MU

    200W@ RU

    Dimension

    370*332*130 mm@ MU

    370*332*130 mm@ RU

    Weight

    12 kg @ MU

    12 kg @ RU

    Note: The specification might be adjusted, please reconfirm the final specification before order confirmed

    * Support TETRA/P25/DMR and other public safety communication systems.

    * Advanced FPGA digital filtering technology, programmable channel number and bandwidth.

    * Digital fiber optic processing can transmit over long distances, up to 15KM.

    * Automatic level control, limiting output power to ensure safe and stable coverage range.

    * Support Local OMT monitoring by USB connection, support remote NMS monitoring by wireless modem.

    * MTBF >100,000 hours.
