Specialize in Signal Repeater & Jammer R&D and manufacturing since 2006

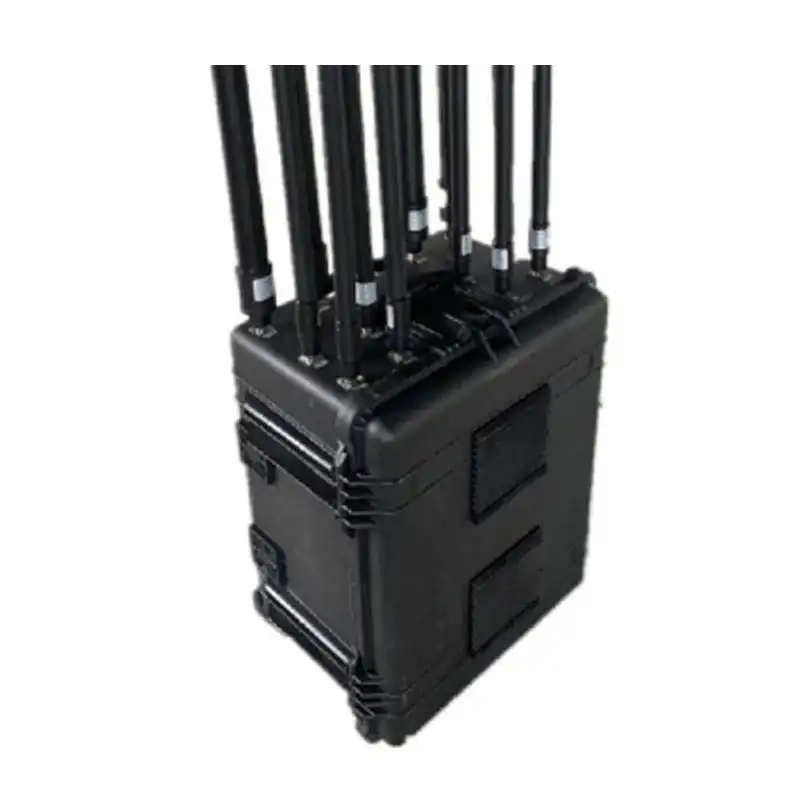

AMPLITEC Portable DDS signal jammer Low loss
* Advanced digital pilot interference signal source with high interference efficiency
* 20MHz-6GHz frequency range, up to 13 interference channels, flexible configuration of interference frequency for each channel
* Built in integrated charging and discharging battery module, seamless switching between battery/AC power supply
* Support remote monitoring of device operation status, remote adjustment of device parameters
* The total power is 450W, and the effective shielding distance of each RF channel is 30-50 meters (depending on the signal field strength of the base station)
|
Model：P45J-13B-DDS |
|
|
Item |
Specifications |
|
Frequency Range |
20MHz ~ 6000MHz |
|
Technology |
2G/3G/4G/5G, WIFI, GPS, Bluetooth, Lora, |
|
Number of RF Channel |
Max 13 Channels |
|
Frequency of Channel |
Can be set, |
|
Bandwidth of Channel |
Max 150MHz per channel |
|
Total Output Power |
Max 450W |
|
Jamming Distance |
30 ~ 50m(Depends on signal strength) |
|
Antenna |
Max 13 pcs ommi antennas |
|
Power Supply |
AC 110V/220V & Built-in Battery |
|
Battery Capacity |
Full Power working 70 minute min |
|
Power Consumption |
≤1200W |
|
Local Monitoring Interface |
RJ45 |
|
Remote Monitoring |
TCP/IP |
|
Dimensions |
629×497×353mm |
|
Weight |
≤ 55 kg |
|
IP Rating |
IP42 |
|
Operating Temperature |
-10 to 50℃ |
