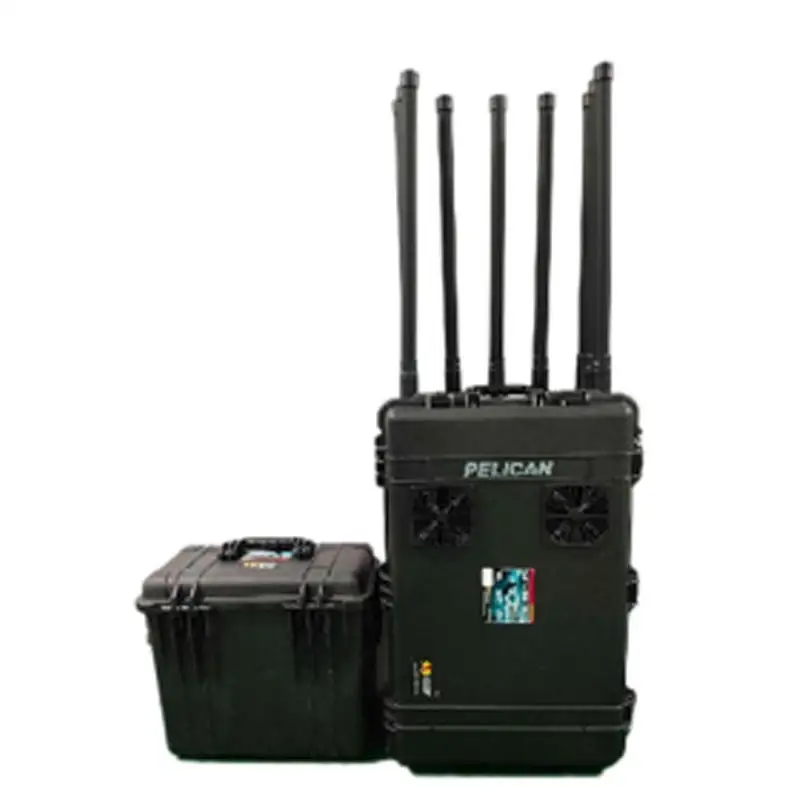

AMPLITEC Portable drone jammer Low loss
* Trolley box design, convenient for carrying and transportation,
* Using ultra-high frequency broadband seamless interference technology to quickly generate multiple suppressed signals,
* The countermeasure signal fully covers the remote control, image transmission, and positioning frequency bands of mainstream unmanned aerial vehicle products,
* 8-channel output, segmented control, arbitrary switching of countermeasure mode,
* Configure 8 omnidirectional antennas, with no dead corners in 360 degrees,
* Easy to operate, works immediately upon startup, no need for professional skills,
* External independent battery box, with a battery life of 40 minutes.
|
Model：LX50-F8 |
||
|
Item |
Specifications |
|
|
Working Frequency |
Channel 1 |
420-450MHz |
|
Channel 2 |
840-930MHz |
|
|
Channel 3 |
1160-1280MHz |
|
|
Channel 4 |
1550-1630MHz |
|
|
Channel 5 |
2380-2500MHz |
|
|
Channel 6 |
5150-5300MHz |
|
|
Channel 7 |
5600-5730mhz |
|
|
Channel 8 |
5720-5880MHz |
|
|
Output Power |
100W per band |
|
|
Jamming Distance |
1000 ~ 4000m |
|
|
Power Supply |
External Battery Box 28V/80Ah or AC 110/220V |
|
|
Power Consumption |
≤1800 W |
|
|
IP Rating |
IP40 |
|
|
Ambient Humidity |
80% |
|
|
Operating Temperature |
-20 to 55℃ |
|
|
Dimensions |
802x520x316mm （exclude antenna） |
|
|
Weight |
Main Unit ≤50kg，Battery Box ≤30kg |
|
* Trolley box design, convenient for carrying and transportation,
* Using ultra-high frequency broadband seamless interference technology to quickly generate multiple suppressed signals,
* The countermeasure signal fully covers the remote control, image transmission, and positioning frequency bands of mainstream unmanned aerial vehicle products,
* 8-channel output, segmented control, arbitrary switching of countermeasure mode,
* Configure 8 omnidirectional antennas, with no dead corners in 360 degrees,
* Easy to operate, works immediately upon startup, no need for professional skills,
* External independent battery box, with a battery life of 40 minutes.
