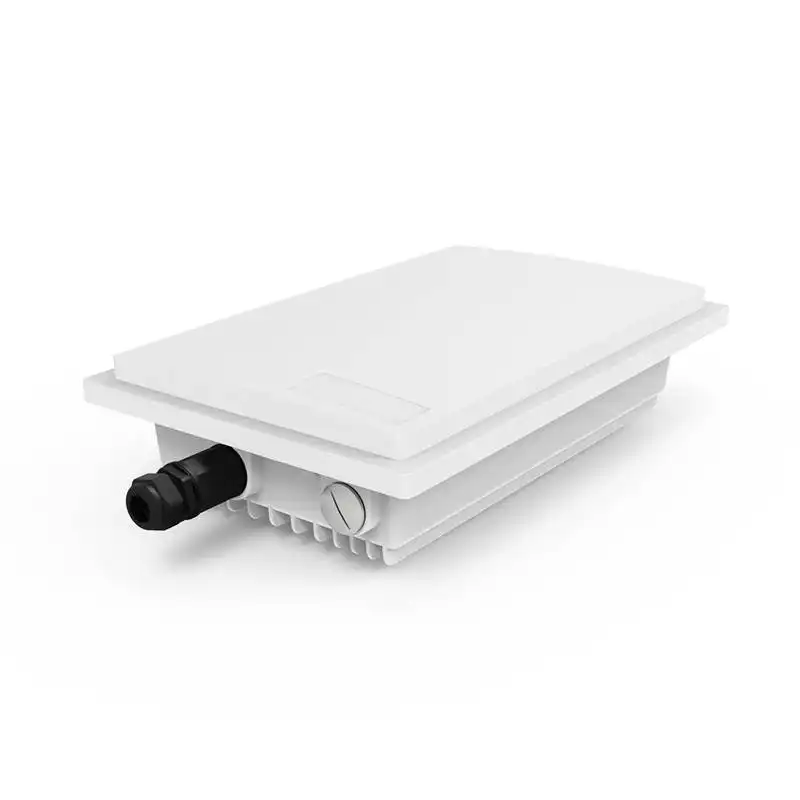

AMPLITEC 3km 5.8ghz 300Mbps Point To Multi-point CPE WDS TDMA Waterproof Wifi wireless bridge for outdoor long range
* Adopt a high performance AR9344 chip, the maximum rate can reach 300Mbps, outdoor transmission distance of 3km.
* Support point-to-point, or point-to-multipoint transmission mode.
* Unique antenna, RF amplifier, and low-noise receiver design to ensure long-distance transmission.
* TDMA technology can maximize the use of bandwidth resources to better support point-to-multipoint data transmission.
* Support POE mode power supply, and the power supply is more convenient and reliable.
* Can be remotely controlled and managed via a webpage for easy configuration.
In traditional monitoring, video data is transmitted through optical fibers. What is the biggest drawback? That is the trouble of construction, because it is necessary to wire and pull the optical fiber from the monitored place to the monitoring room. If it is the monitoring of urban roads, it will be very troublesome. To bury the optical fiber underground, you need to open the road, causing environmental damage. And the construction time and cost are very large. However, if a wireless bridge is used, no wiring is required. The wireless bridge for long-distance transmission only needs to be installed, and the monitoring video data can be sent back to the monitoring room immediately. Greatly saves time and labor costs. According to statistics, the labor cost and time cost of wired monitoring and wireless bridge monitoring are almost 20 times different.
Amplitec 3km 5.8ghz 300Mbps Point To Multi-point TDMA Waterproof Wifi wireless bridge for outdoor long distance, not only support 3km long distance, but also have TDMA technology can maximize the use of bandwidth resources to better support point-to-multipoint data transmission. Not many suppliers in the world can do TDMA wireless wifi bridge.
|
Product Model |
AWB300-43 |
|
Network Protocol |
Management tools to automatically search for IP addresses; Web management |
|
Wireless Transmission Distance |
3000 meters |
|
Support Capacity |
10 channel 2M stream IPC |
|
Networking Method |
Point to point; point to multi-point |
|
Wireless Standards |
IEEE 802.11b/g/n（2*2 MIMO 300 Mbps） |
|
Working Frequency |
4900MHz～6100MHz |
|
Antenna Angle |
Half-power beamwidth：65° ± 5° |
|
Reception Sensitivity |
87 ± 2dB @11Mbps |
|
Maximum Air Interface Transmission Rate |
≤ 300 Mbps |
|
Network Interface Type |
1 RJ45 ,10/100 Mbps self-adaptive |
|
Channel Width |
20/40 MHz |
|
Working Scenes |
Roadways |
|
Security Mode |
WPA2-PSK |
|
Security Mechanisms |
Hide the wireless network name |
|
Network Mode |
Bridging |
|
Management Approach |
Web,client |
|
System Logs |
System log information printing |
|
Software Updates |
Web,Client Updates |
|
Power Input |
12-24 VPOE, 1A |
|
Power Consumption |
≤6W |
|
Overall Dimensions |
361mm × 200mm × 87 mm |
|
Weight |
Approx. 1.45kg |
|
Working Temperature |
-30℃~70℃ |
|
Working Humidity |
5% RH～95% RH Non-condensing |
|
Storage Temperature |
-40℃~80℃ |
|
Storage Humidity |
5% RH～95% RH Non-condensing |
|
Installation Method |
Wall-mounted, pole type |
|
Power Supply Method |
PoE power supply |
* Adopt a high performance AR9344 chip, the maximum rate can reach 300Mbps, outdoor transmission distance of 3km.
* Support point-to-point, or point-to-multipoint transmission mode.
* Unique antenna, RF amplifier, and low-noise receiver design to ensure long-distance transmission.
* TDMA technology can maximize the use of bandwidth resources to better support point-to-multipoint data transmission.
* Support POE mode power supply, and the power supply is more convenient and reliable.
* Can be remotely controlled and managed via a webpage for easy configuration.
