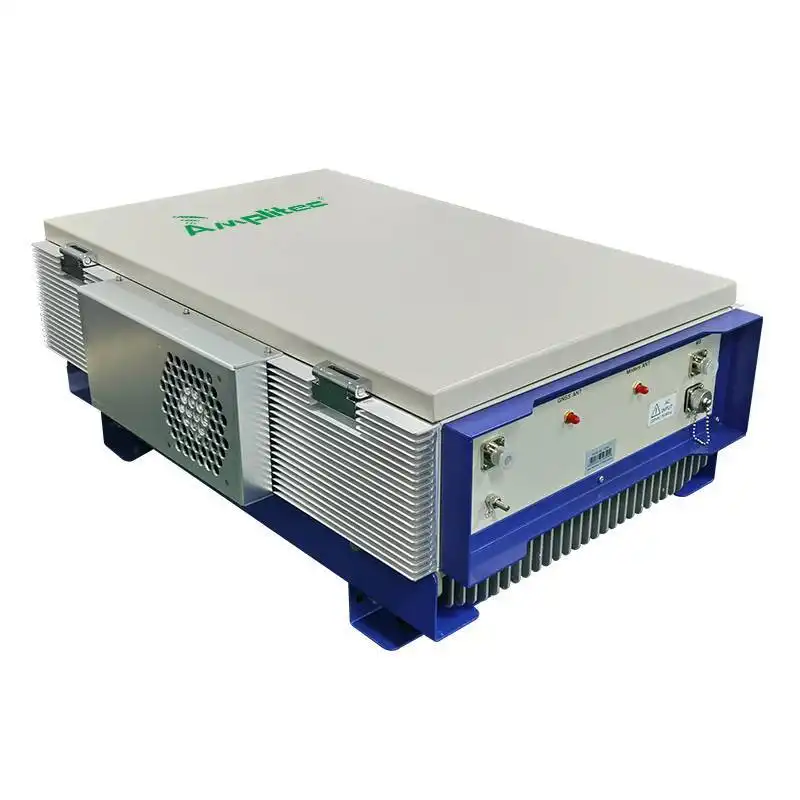

AMPLITEC 43dBm 20W Digital Band Selective Mobile Cell Phone Network Cellular Signal Booster Low loss

* 99% pass customs clearance,Amplitec have many certificates,such as CE,RoHS,FCC,etc...

* 43dBm 95dB signal booster indoor coverage area upto 15000-23000㎡,outdoor upto 4-8km and waterproof easy to install.

* Sub-band frequency and bandwidth can be set by local monitoring panel, which is easier and more convenient.

* Digital filter technology makes out-of-band rejection more effective.

* OLED screen can clearly display working frequency, gain, output power and easily check working status of the device.

* Manual gain control function, to attenuate gain with 1dB step among range of 31dB.

* ALC, with wide range of 31dB, auto limit the output power to ensure stable performance.

* Device auto detect isolation after start-up, to avoid self-oscillation.

* Can be controlled and monitored, via USB connects PC for local control, via 3G or4G modem connects PC for remote control.

*Amplitec handle many engineering cases around the world,we have rich experience in mobile phone signal coverage project.

*Amplitec Own Chinese the largest signal booster manufacturing factory, so our quality control and production capacity leading the world.

*Most of Amplitec's signal booster have certificates,such as CE, RoHS, FCC, etc...

*Amplitec have rich exhibition experience, our signal boosters are recognized in many regions around the world.

Model	S43T-Bx S43T-BxBx S43T-BxBxBx
Frequency Band	Any one in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ S43T-Bx Any two in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ S43T-BxBx Any three in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ S43T-BxBxBx
Sub-bands	1~3 for each band
Bandwidth	0.2 ~ 20 MHz can by set for each sub-band
Gain	UL 90dB , DL 95dB
Output Power	UL 25dBm, DL 43dBm
Gain Attenuate	1~31dB, Step of 1dB
ALC Control Range	≥30dB
VSWR	≤2.0
Spurious Emission	≤-36dBm @ 9KHz~1GHz ≤-30dBm @ 1GHz~12.75GHz
ACRR	Fully comply with 3GPP
EVM	Fully comply with 3GPP
PCDE	Fully comply with 3GPP
Out of band Gain	Fully comply with 3GPP
Noise Figure	≤6dB @ S43T-Bx ≤8dB @ S43T-BxBx, @ S43T-BxBxBx
Group Delay	≤13μs
Power Supply	AC 100~264V / 50Hz
Dimension	490x410x190mm @ S43T-Bx 490x410x210mm @ S43T-BxBx 698x500x225mm @ S43T-BxBxBx
Weight	<25kg @ S43T-Bx <28kg @ S43T-BxBx <38kg @ S43T-BxBxBx
Note：The letter "x" means the 3gpp 4G band number: 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66
