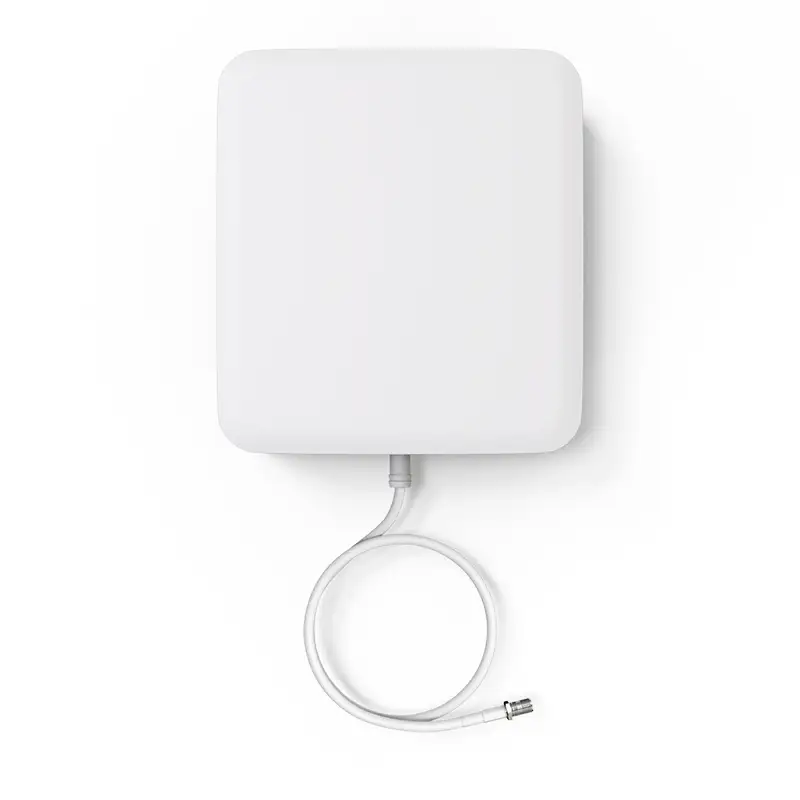

AMPLITEC 4g 5g Indoor Panel Mobile Network Cell Phone Booster Signal Antenna Aerial Low loss
* The new 4g 5g booster antenna, support 806~960/1710~2700/3300~3800MHz, can receive 4g 5g signals at the same time.
* The antenna material is more refined, which not only looks better, but also greatly improves the efficiency of signal reception.
* Good anti-vibration and aging resistance.
* Small size and light weight, easy to install.
With the continuous popularity of 5g, 5g smart phones gradually replace 4g mobile phones. However, the cost of 5g base station is very high. In addition, the proportion of 5g users is still too small. If you continue to build 5g base station, it is difficult to earn back the cost in a short time. Therefore, there is still a lot of potential for improvement in the layout of 5g BTS. The base station is not enough, so many people's 5g mobile phones cannot receive 5g signals. Therefore, the demand for 5g signal repeater is growing.
In addition, in order to better fit this market, Amplitec has also developed a dual band 4g 5g mobile phone signal booster, which is applicable to a large increase of the population. It can enhance both 4G and 5G signals. It is very high cost performance to use with this 4g 5g antenna. The market prospect is clear.
Frequency | 806~960/1710~2700/3300~3800MHz |
Bandwidth | 154/990/500MHz |
Gain | 6~8dBi |
VSWR | ≤ 1.8 |
Max. power | 50W |
Impedance | 50Ω |
Polarization | Vertical |
Horizontal Beamwidth | 115/75/95° |
Vertical Beamwidth | 65/60° |
Front to Back Ratio | ≥ 15dB |
PIM3 | ≤ -120dBc |
Rated Wind Velocity | 60m/s |
Lightning Protection | DC Ground |
Weight | ≤ 0.4kg |
Color | White |
Operating Temperature | -10℃~+55℃ |
Dimension | 165×155×65mm |
Connector Type | SMA-Female or customized |
Terminal line | White 3D-FB, L=300mm |
Radiating Element Material | Aluminum Alloy |
Radome Material | UV-Resistance ABS |
Accessories for installation | Wall mounting |
* The new 4g 5g booster antenna, support 806~960/1710~2700/3300~3800MHz, can receive 4g 5g signals at the same time.
* The antenna material is more refined, which not only looks better, but also greatly improves the efficiency of signal reception.
* Good anti-vibration and aging resistance.
* Small size and light weight, easy to install.
