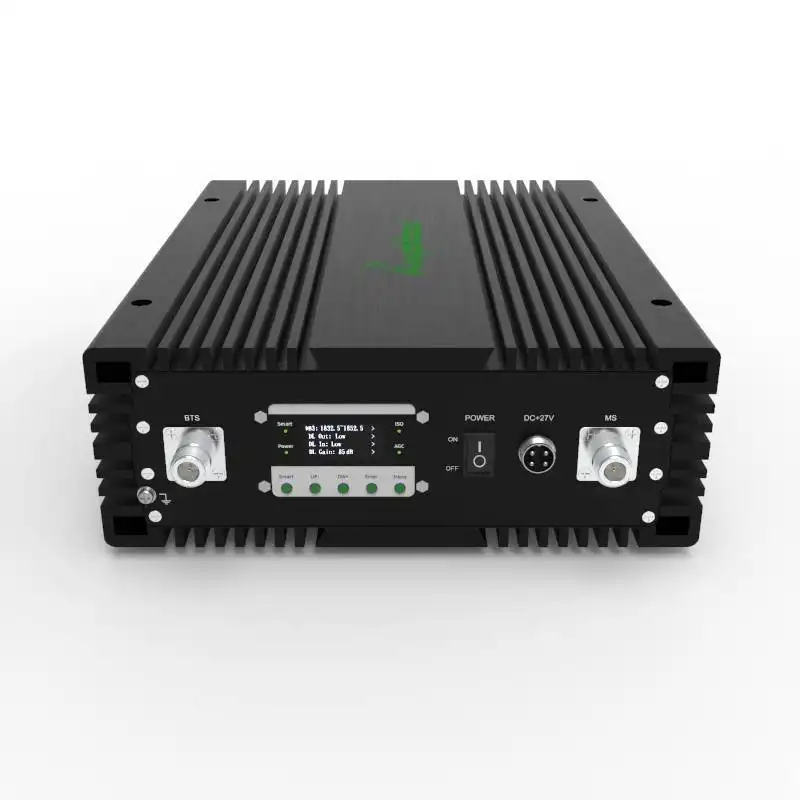

20dBm Band Selective Range Extender Cell Phone Signal Booster
* 99% pass customs clearance,Amplitec have many certificates,such as CE,RoHS,FCC,etc...
* 100% solve mobile cell phone weak signal problem.
* OLED display of operating status at a glance, easy and convenient Push-button operation.
* Can be controlled and monitored, via USB connects PC for local control, via 3G or4G modem connects PC for remote control.
* Adjustable frequency and bandwidth.
* Support the uplink quiet noise function, low interference.
* Digital ALC, auto control of output power ensuring stable signal coverage.
* Anti-interference, real time auto ISO detection and Self Oscillation Elimination keeping base station away from interference.
* Manual gain attenuation, attenuation of gain in the range of 1-31dB with 1dB step.
* Amplitec handle many engineering cases around the world,we have rich experience in mobile phone signal coverage project.
* Amplitec Own Chinese the largest signal booster manufacturing factory, so our quality control and production capacity leading the world.
* Most of Amplitec's signal booster have certificates,such as CE, RoHS, FCC, etc...
* Can be controlled and monitored, via USB connects PC for local control, via 3G or4G modem connects PC for remote control.
* Amplitec have rich exhibition experience, our signal boosters are recognized in many regions around the world.
* Anti-interference,real time auto ISO detection and Self Oscillation Elimination keeping base station away from interference.
* Able to increase signal coverage,decrease mobile phone radiation,and increase mobile phone battery lifespan.
* Amplitec brand is wide used on many countrys of the world Such as Australia,United States,United Kingdom,Indonesia,Spain,Brazil,Kuwait,South Africa,Sweden,etc.
-Recommended repeater antennas accessories full sets including:
Model | F20T-Bx F20T-BxBx F20T-BxBxBx |
Frequency Band | Any one in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ F20T-Bx Any two in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ F20T-BxBx Any three in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ F20T-BxBxBx |
Bandwidth | 0.2~24MHz can be set |
Gain | UL 70dB , DL 70dB |
Output Power | UL 15dBm, DL 20dBm |
Gain Attenuate | 1~31dB, Step of 1dB |
ALC Control Range | ≥30dB |
VSWR | ≤2.0 |
Spurious Emission | ≤-36dBm @ 9KHz~1GHz ≤-30dBm @ 1GHz~12.75GHz |
ACRR | Fully comply with 3GPP |
EVM | Fully comply with 3GPP |
PCDE | Fully comply with 3GPP |
Out of band Gain | Fully comply with 3GPP |
Noise Figure | ≤6dB @ F20T-Bx ≤8dB @ F20T-BxBx, @ F20T-BxBxBx |
Group Delay | ≤9μs |
Power Supply | DC 12V3A @ F20T-Bx DC 12V5A @ F20T-BxBx, @ F20T-BxBxBx |
Dimension | 268x250x58mm @ F20T-Bx 268x220x96mm @ F20T-BxBx 330x268x96mm @ F20T-BxBxBx |
Weight | <3kg @ F20T-Bx <5kg @ F20T-BxBx <9kg @ F20T-BxBxBx |
Note：The letter "x" means the 3gpp 4G band number: 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 | |
* 99% pass customs clearance,Amplitec have many certificates,such as CE,RoHS,FCC,etc...
* 100% solve mobile cell phone weak signal problem.
* OLED display of operating status at a glance, easy and convenient Push-button operation.
* Can be controlled and monitored, via USB connects PC for local control, via 3G or4G modem connects PC for remote control.
* Adjustable frequency and bandwidth.
* Support the uplink quiet noise function, low interference.
* Digital ALC, auto control of output power ensuring stable signal coverage.
* Anti-interference, real time auto ISO detection and Self Oscillation Elimination keeping base station away from interference.
* Manual gain attenuation, attenuation of gain in the range of 1-31dB with 1dB step.
