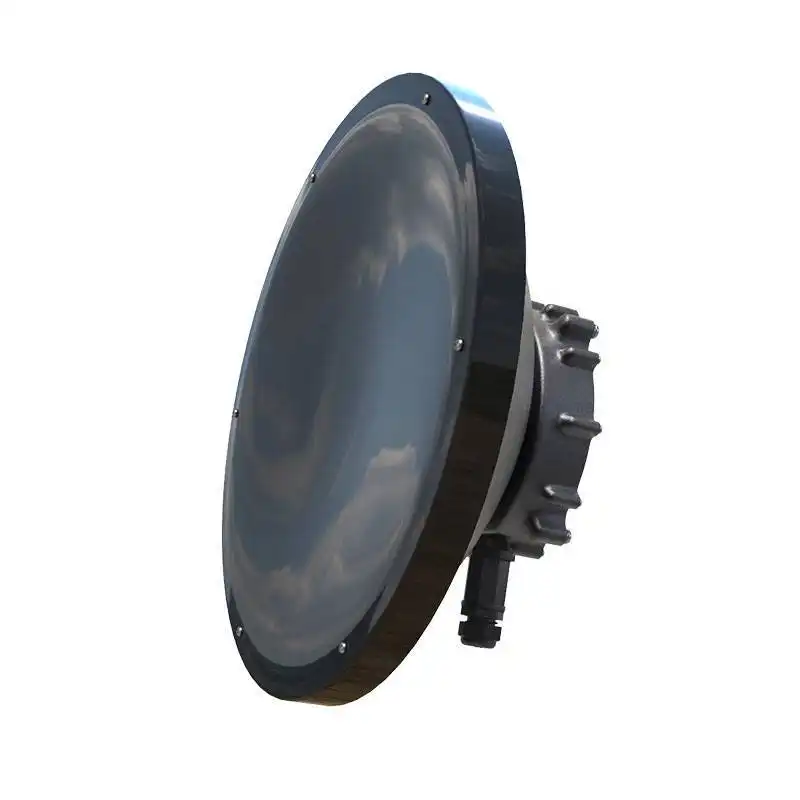

AMPLITEC 5km 10km TDMA Outdoor Point To Point 5ghz 2.4ghz Long Range Wireless Network Wds Mode Ethernet Wifi Bridge

* Adopt a high performance AR9344 chip, the maximum rate can reach 300Mbps, outdoor transmission distance of 5km.

* Support point-to-point, or point-to-multipoint transmission mode.

* Unique antenna, RF amplifier and low-noise receiver design to ensure long-distance transmission.

* TDMA technology can maximize the use of bandwidth resources to better support point-to-multipoint data transmission.

* Support POE mode power supply, and the power supply is more convenient and reliable.

* Can be remotely controlled and managed via a webpage for easy configuration.

    oops...!

    no product data.

    Go to homepage

    Amplitec 5km 10km TDMA Outdoor Point To Point 5ghz 2.4ghz Long Range Wireless Network Wds Ethernet Wifi Bridge. This model can select point to point and point to mul-ti point network method. Not only support 5km long distance, but also have TDMA technology can maximize the use of bandwidth resources to better support point-to-multipoint data transmission.

    What's TDMA? The full name of TDMA is Time Division Multiple Access. It is a communication technology for realizing a shared transmission medium (generally the radio field) or network. It allows multiple users to use the same frequency in different time slices (slots). Users transfer rapidly, one after the other, each using their own time slice. This allows multiple users to share the same transmission medium (eg radio frequency). Our TDMA wireless WIFI bridge has a point-to-multipoint distance of up to 5KM and more than 10KM.

    wds bridging

    Product Model

    AWB300-50

    Network Protocol

    Management tools to automatically search for IP addresses;

    Web management

    Wireless Transmission Distance

    5000-10000 meters

    Support Capacity

    10 channel 2M stream IPC

    Networking Method

    Point to point; point to multi-point

    Wireless Standards

    IEEE 802.11b/g/n2*2 MIMO 300 Mbps

    Working Frequency

    4900MHz6100MHz

    Antenna Angle

    Half-power beamwidth65° ± 5°

    Reception Sensitivity

    87 ± 2dB @11Mbps

    Maximum Air Interface

    Transmission Rate

    ≤ 300 Mbps

    Network Interface Type

    1 RJ45 ,10/100 Mbps self-adaptive

    Channel Width

    20/40 MHz

    Working Scenes

    Roadways

    Security Mode

    WPA2-PSK

    Security Mechanisms

    Hide the wireless network name

    Network Mode

    Bridging

    Management Approach

    Web,client

    System Logs

    System log information printing

    Software Updates

    Web,Client Updates

    Power Input

    12-24 VPOE, 1A

    Power Consumption

    ≤6W

    Overall Dimensions

    Ø370mm × 143mm

    Weight

    Approx. 3kg

    Working Temperature

    -30℃~70℃

    Working Humidity

    5% RH95% RH Non-condensing

    Storage Temperature

    -40℃~80℃

    Storage Humidity

    5% RH95% RH Non-condensing

    Installation Method

    Wall-mounted, pole type

    Power Supply Method

    PoE power supply


    wifi bridge

    wireless bridge

    point to point wireless bridge


    * Adopt a high performance AR9344 chip, the maximum rate can reach 300Mbps, outdoor transmission distance of 5km.

    * Support point-to-point, or point-to-multipoint transmission mode.

    * Unique antenna, RF amplifier and low-noise receiver design to ensure long-distance transmission.

    * TDMA technology can maximize the use of bandwidth resources to better support point-to-multipoint data transmission.

    * Support POE mode power supply, and the power supply is more convenient and reliable.

    * Can be remotely controlled and managed via a webpage for easy configuration.

    5km 10km TDMA Outdoor Point To Point 5ghz 2.4ghz Long Range Wireless Network Wds Mode Ethernet Wifi Bridge
