Specialize in Signal Repeater & Jammer R&D and manufacturing since 2006
AMPLITEC China 4g 5g Cellular gsm signal amplifier booster network extender Wholesale Repeditor Company Low loss
* 99% pass customs clearance,Amplitec have many certificates,such as CE,RoHS,FCC,etc...
* New design of 4g 5g dual band signal booster, meet market demand.
* With the world's top 5G communication technology, good quality is guaranteed, welcome to become a partner with us.
* Sample test is available, we are confident in our products and capacity.
* one year warranty, our team of engineers support 24-hour consultation on technical issues.

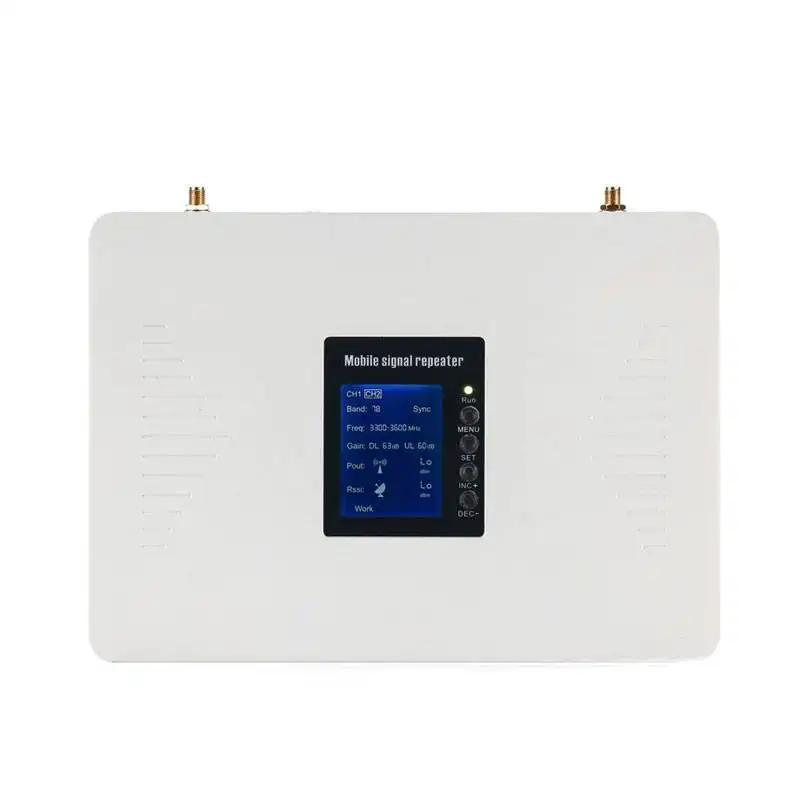

China 4g 5g cellular gsm signal amplifier booster network extender wholesale repeditor company
* 100% solve mobile cell phone weak signal problem.
* Large-size LCD display screen, perfect display equipment operating parameters.
* Support 4G+5G input and output.
* Automatic shutdown function, automatically shuts down the downstream output when excessive self-excitation or over power occurs.
* Uplink sleep function, the device enters sleep state when there is no user in the coverage area, reducing interference to the base station.
* MGC gain control function, 1dB step, adjustable gain within 31dB.
* ALC automatic power control function to keep the signal stable.
*Automatic linkage link balance function.
|
Model |
C17M-BxNx |
|
Frequency Band |
Any one in 4G band 1, 2, 3, 4, 5, 7, 8, 20, 28 and any one in 5G N41 or N78 |
|
Bandwidth |
Full Bandwidth in 4G bands and custom bandwidth in 5G bands |
|
Gain |
UL 70dB , DL 70dB |
|
Output Power |
UL 17dBm, DL 17dBm |
|
Gain Attenuate |
1~31dB, Step of 1dB |
|
ALC Control Range |
≥30 dB |
|
VSWR |
≤2.0 |
|
Spurious Emission |
≤-36dBm @ 9KHz~1GHz, ≤-30dBm @ 1GHz~12.75GHz |
|
ACRR |
Fully comply with 3GPP |
|
EVM |
Fully comply with 3GPP |
|
PCDE |
Fully comply with 3GPP |
|
Noise figure |
≤8.0 dB |
|
Group delay |
≤1μs |
|
Power supply |
DC 12V /3A |
|
Dimension |
180*130*45mm |
|
Weight |
<1.8kg |
|
Note：The letter "x" means the 3gpp 4G band number: 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 and 5G bands : 41, 78 |
|
* 99% pass customs clearance,Amplitec have many certificates,such as CE,RoHS,FCC,etc...
* New design of 4g 5g dual band signal booster, meet market demand.
* With the world's top 5G communication technology, good quality is guaranteed, welcome to become a partner with us.
* Sample test is available, we are confident in our products and capacity.
* one year warranty, our team of engineers support 24-hour consultation on technical issues.
