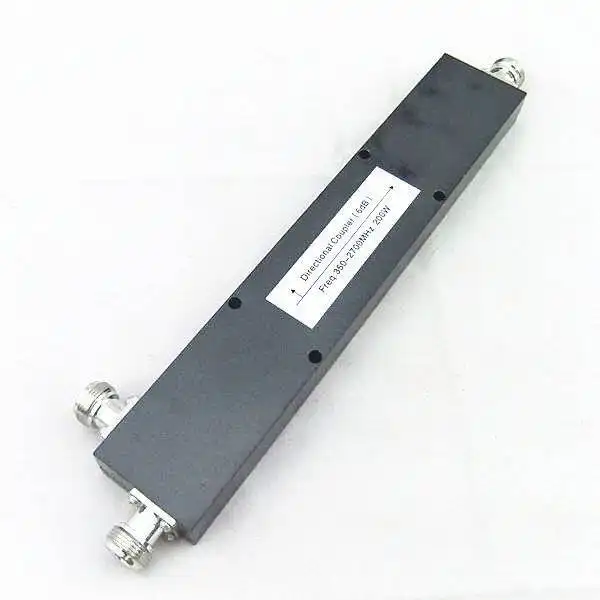

AMPLITEC Directional Coupler (350-2700MHz)

Directional Coupler (350-2700MHz)

* 350-2700MHz Wide Frequency Band

* Low Insertion Loss

* Low VSWR

* Low Intermodulation

* Widely used in IBS & DAS

* Guaranteed one year standard

    oops...!

    no product data.

    Go to homepage

    Coupler is used to distributed wire RF signal according to the requirements,and it plays a role as to seperate signal into 2 parts unevenly (called trunk-side and coupling end,or may called straight end and coupling end)

    Model No

    CP200-6N-0327

    CP200-10N-0327

    CP200-15N-0327

    CP200-20N-0327

    CP200-30N-0327

    Frequency (MHz)

    350-2700

    Insertion Loss

    ≦1.80

    ≦1.0

    ≦0.6

    ≦0.6

    ≦0.6

    Coupling

    6

    10

    15

    20

    30

    Accuracy

    ±1.0

    ±1.2

    ±1.5

    ±1.5

    ±.2.0

    Directivity

    ≧18

    ≧18

    ≧18

    ≧18

    ≧18

    VSWR

    ≦1.30

    PIM

    -150dBc@2*43dBm

    Power

    200W

    Impedance

    50 ohm

    RF Connector

    N-female

    Color

    Black-plated

    Temperature

    -20~+70

    Humidity

    5%-95%

    Weight(kg)

    0.40


    directional coupler

    coupler

    power coupler


    * 350-2700MHz Wide Frequency Band

    * Low Insertion Loss

    * Low VSWR

    * Low Intermodulation

    * Widely used in IBS & DAS

    * Guaranteed one year standard

    Directional Coupler (350-2700MHz)
