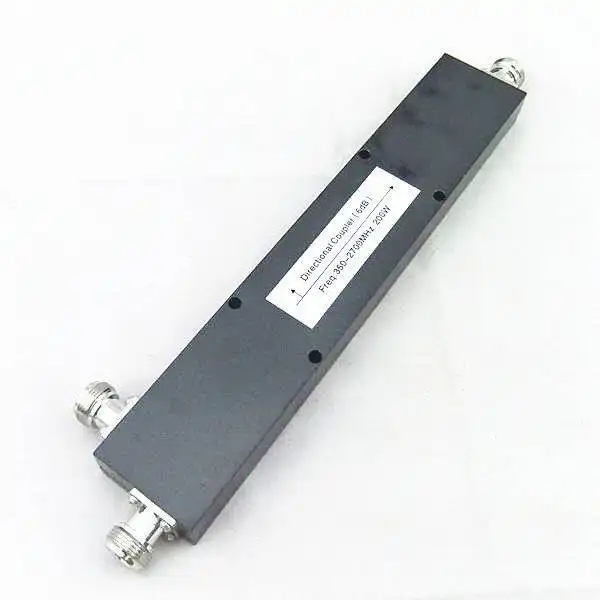

AMPLITEC Directional Coupler (800-3500MHz)
* Wide Frequency Band
* Low Insertion Loss
* Low VSWR
* Low Intermodulation
* Widely used in IBS & DAS
* Guaranteed one year standard
Coupler is used to distributed wire RF signal according to the requirements,and it plays a role as to seperate signal into 2 parts unevenly (called trunk-side and coupling end,or may called straight end and coupling end)
|
Model No. |
CP200-6N-0835 |
CP200-10N-0835 |
CP200-15N-0835 |
CP200-20N-0835 |
CP200-30N-0835 |
|
Frequency (MHz) |
800-3500 |
||||
|
Insertion Loss |
≦1.80 |
≦1.0 |
≦0.6 |
≦0.6 |
≦0.6 |
|
Coupling |
6 |
10 |
15 |
20 |
30 |
|
Accuracy |
±1.0 |
±1.2 |
±1.5 |
±1.5 |
±.2.0 |
|
Directivity |
≧18 |
≧18 |
≧18 |
≧18 |
≧18 |
|
VSWR |
≦1.30 |
||||
|
PIM |
-150dBc@2*43dBm |
||||
|
Power |
200W |
||||
|
Impedance |
50 ohm |
||||
|
RF Connector |
N-female |
||||
|
Color |
Black-plated |
||||
|
Temperature |
-20~+70 |
||||
|
Humidity |
5%-95% |
||||
|
Weight(kg) |
0.35 |
||||
