Specialize in Signal Repeater & Jammer R&D and manufacturing since 2006

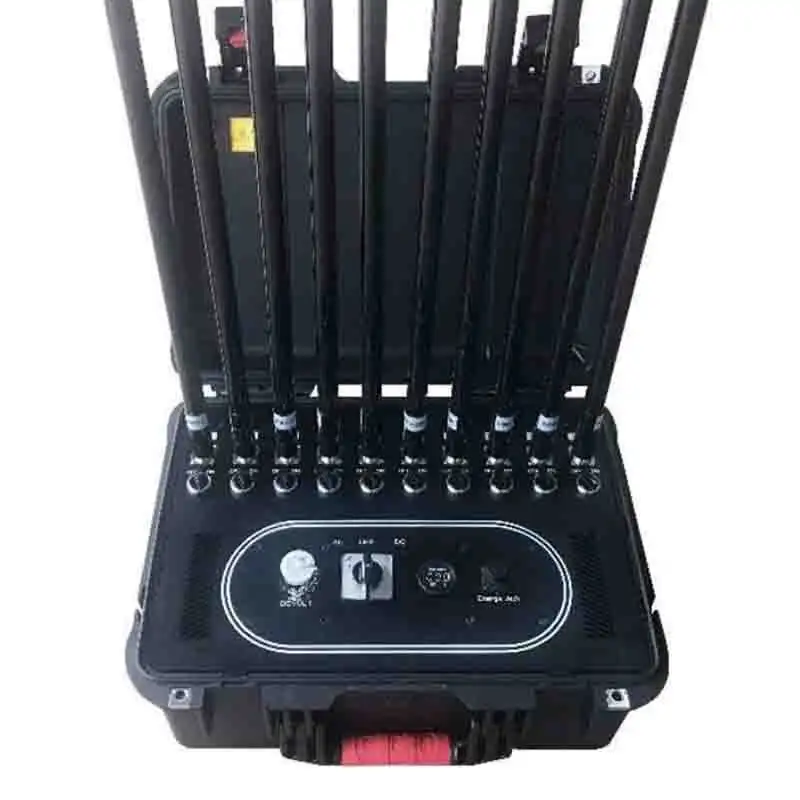

AMPLITEC P40-10B-PJ 100W 10 Channels Portable Signal Jammer Low loss
* Adopting a portable chassis design, easy to carry, one click power on/off
* Powered by AC and DC, with built-in battery, it can work for nearly 1 hour without an external power source.
* Shielding radius 10-60 meters (non fixed value, depending on the distance from the site to the base station and signal strength)
* Only block 2G/3G/4G signals from mobile phones, without affecting the normal operation of other electronic devices
* Ultra low radiation, safe and environmentally friendly, with no adverse effects on human health
* Only blocking the downlink frequency of the transmitting base station does not affect the uplink frequency
* Application: Used in various emergency situations, etc
|
Item |
Specifications |
||
|
Jamming Frequency Range |
B28 (700) |
758 ~ 803MHz |
Various Frequencies Can be Customized According to Customer Needs |
|
B20 (800) |
791 ~ 821MHz |
||
|
B5 (850) |
869 ~ 894MHz |
||
|
B8 (900) |
925 ~ 960MHz |
||
|
B3 (1800) |
1805 ~ 1880MHz |
||
|
B1 (2100) |
2110 ~ 2170MHz |
||
|
WIFI (2400) |
2400 ~ 2500MHz |
||
|
B7 (2600) |
2600 ~ 2700MHz |
||
|
B78 A (2600) |
3300 ~ 3400MHz |
||
|
B78 B (3800) |
3400 ~ 3500MHz |
||
|
Total power |
100 W |
||
|
Jamming Distance |
10 ~ 60 m(Depends on signal strength) |
||
|
RF Connector |
N-Female ×10 Fiberglass Omnidirectional Antenna |
||
|
Installation method |
Placed on a Desktop |
||
|
Power Supply |
AC Adapter (Built in 24V/15AH battery) |
||
|
Power Consumption |
≤360 W |
||
|
Dimensions |
476×361×223mm |
||
|
Weight |
≤ 16kg |
||
|
IP Rating |
IP40 |
||
|
Operating Temperature |
-10 to 50℃ |
||
* Adopting a portable chassis design, easy to carry, one click power on/off
* Powered by AC and DC, with built-in battery, it can work for nearly 1 hour without an external power source.
* Shielding radius 10-60 meters (non fixed value, depending on the distance from the site to the base station and signal strength)
* Only block 2G/3G/4G signals from mobile phones, without affecting the normal operation of other electronic devices
* Ultra low radiation, safe and environmentally friendly, with no adverse effects on human health
* Only blocking the downlink frequency of the transmitting base station does not affect the uplink frequency
* Application: Used in various emergency situations, etc
