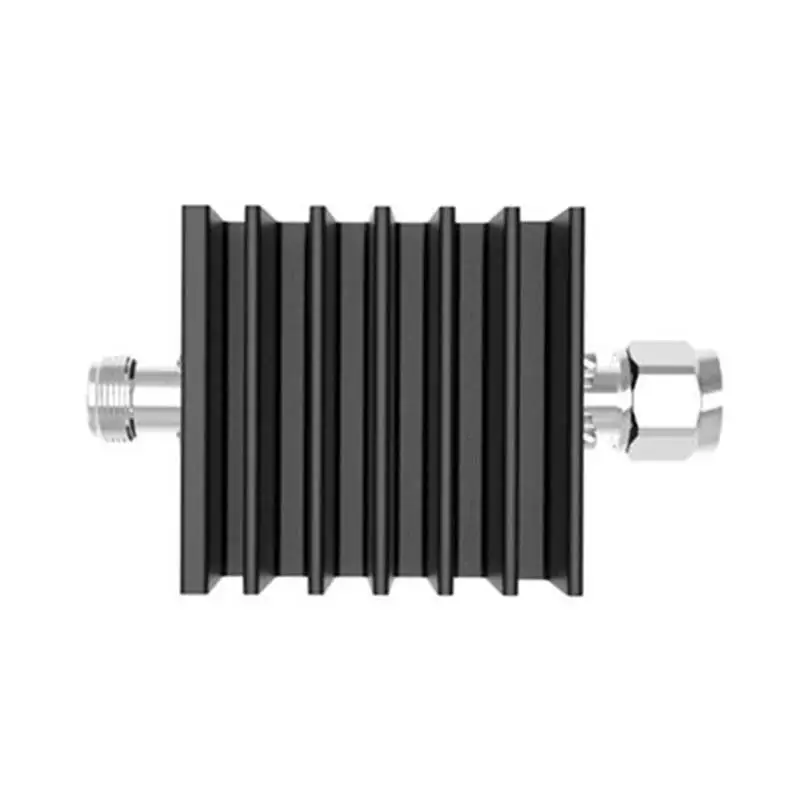

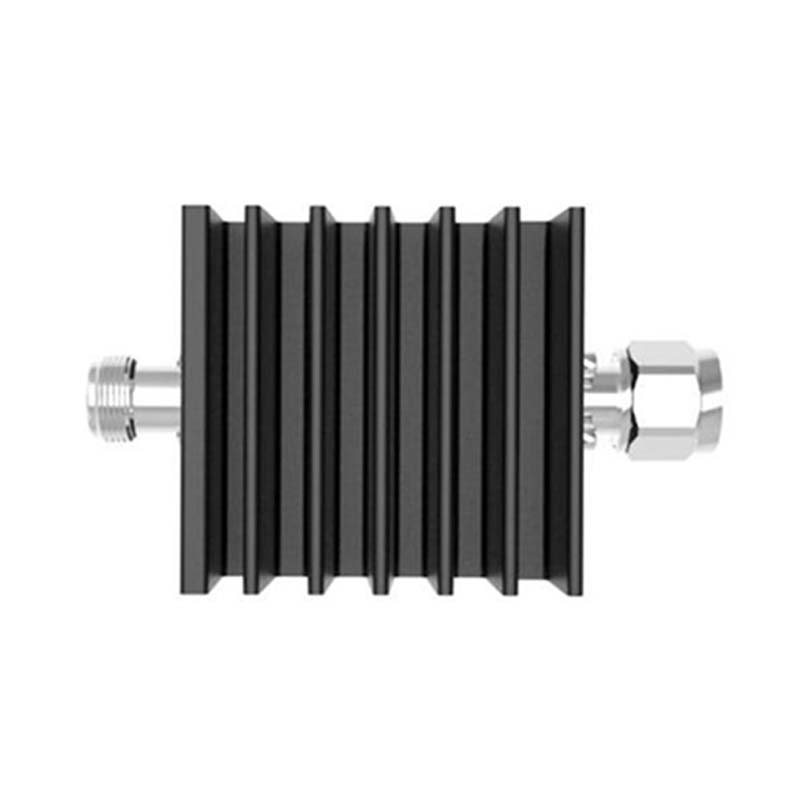

AMPLITEC RADC60-xN-10 Low loss 1
AMPLITEC RADC60-xN-10 Low loss 1

AMPLITEC RADC60-xN-10 Low loss

Wide band design, DC -6000MHz

Simple installation & stable performance

Good anti-vibration and aging resistance

Small size & light weight

    oops...!

    no product data.

    Go to homepage

    AMPLITEC RADC60-xN-10 Low loss 2

                     AMPLITEC RADC60-xN-10 Low loss 3



    Model Name

    RADC60-3N-10

    RADC60-6N-10

    RADC60-10N-10

    RADC60-15N-10

    RADC60-20N-10

    RADC60-30N-10

    Frequency Range (MHz)

    DC-6000

    Varieties

    3dB

    6dB

    10dB

    15dB

    20dB

    30dB

    Loss Input - Output(dB)

    ±0.8

    ±0.8

    ±0.9

    ±1

    ±1

    ±1

    VSWR

    1.25

    Impedance(Ω)

    50

    Power Rating(W)

    10,Avg.

    PIM(dBc)

    ≤-120dBc@2*36dBm

    Dimension (L×W×H, excl connector) (mm)

    60×70×60

    Weight (including connectors and mounting bracket) (kg)

    1

    Connector Type

    N-Female to N-Male

    Color

    Black

    Operational Temperature (°C)

    -40 to +80

    Operational Humidity (%)

    95

    Ingress Protection Class

    Indoor (IP40)


    Wide band design, DC -6000MHz

    Simple installation & stable performance

    Good anti-vibration and aging resistance

    Small size & light weight
