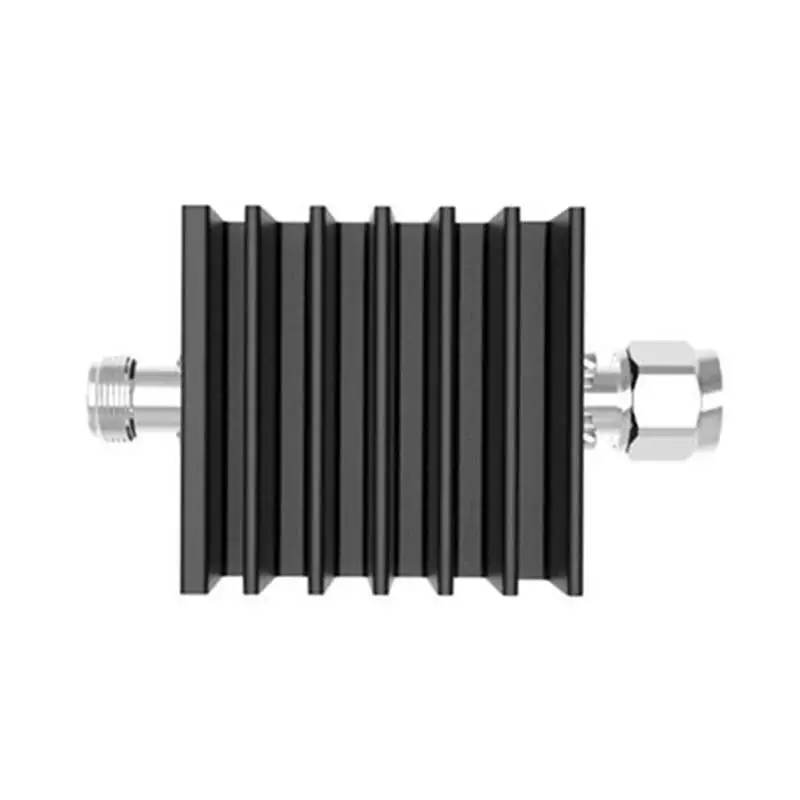

AMPLITEC RADC60-xN-20 Low loss
* Wide band design, DC -6000MHz
* Simple installation & stable performance
* Good anti-vibration and aging resistance
* Small size & light weight
|
Model Name |
RADC60-3N-20 |
RADC60-6N-20 |
RADC60-10N-20 |
RADC60-15N-20 |
RADC60-20N-20 |
RADC60-30N-20 |
|
Frequency Range (MHz) |
DC-6000 |
|||||
|
Varieties |
3dB |
6dB |
10dB |
15dB |
20dB |
30dB |
|
Loss Input - Output(dB) |
±0.8 |
±0.8 |
±0.9 |
±1 |
±1 |
±1 |
|
VSWR |
≤1.3 |
|||||
|
Impedance(Ω) |
50 |
|||||
|
Power Rating(W) |
20,Avg. |
|||||
|
PIM(dBc) |
≤-110dBc@2*43dBm |
|||||
|
Dimension (L×W×H, excl connector) (mm) |
60×70×60 |
|
Weight (including connectors and mounting bracket) (kg) |
1 |
|
Connector Type |
N-Female to N-Male |
|
Color |
Black |
|
Operational Temperature (°C) |
-40 to +80 |
|
Operational Humidity (%) |
≤95 |
|
Ingress Protection Class |
Indoor (IP40) |
* Wide band design, DC -6000MHz
* Simple installation & stable performance
* Good anti-vibration and aging resistance
* Small size & light weight
