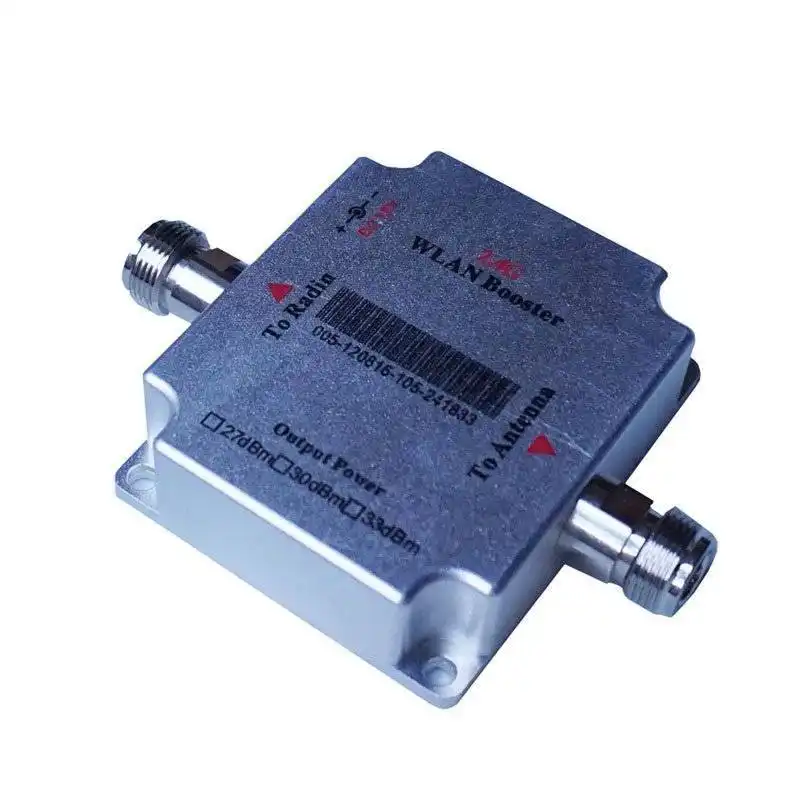

WLAN BOOSTER

WLAN BOOSTER

* Applicated in WLAN accessing point and client

* Based on 2.4GHz wireless coverage

* Based on 2.4GHz wireless bridge network

* Based on 2.4GHz wireless base stations

    oops...!

    no product data.

    Go to homepage

    WLAN (Wireless Local Area Network) system is a sophisticated wireless mobile broadband access technology. With the continuous development of the Internet, WLAN system has more and more embodied the advantages of convenient use.

    However, due to the lower AP transmit power, the working frequency of 2.4GHz, great transmission loss of wireless signal and poor penetration, the indoor signal coverage of this system in many buildings is uneven, which can not fully meet users' needs. To solve the indoor signal coverage problem of this system, WLAN system is introduced into the indoor signal coverage system in recent years, to expand the coverage area of AP through passive antenna systems, achieving the good and average coverage of WLAN signal.

    Items

    RF specification

    Access Specification

    Frequency

    2400 – 2500MHz

    2400 – 2500MHz

    Output Power(With ALC Control)

    (+33) ± 0.5 dBm

    (-10) ± 1 dBm

    Gain (dB)

    16 ± 1 dB

    12 ± 1 dB

    Input Level (dBm)

    -10 ~ +20

    -30 ~ -20

    Gain Flatness (dB)

    ≤ ± 0.5

    ≤ ± 0.5

    3rd Order IMD Suppression

    ≥43dBc @ 2450MHz (Two-tone spacing is 100KHz when PEP measured maximum output power)

    Turn On/Off time (us)

    ≤0.6us

    ≤ 0.6us

    Input/Output VSWR

    ≤ 1.5

    ≤ 1.5

    RF Connector

    N Connector

    N Connector

    Typical Noice Figure

    -

    ≤ 3.5

    RF Working Power

    ≤ 1.0A

    Accept Working Power

    ≤ 0.06A

    Power Supply

    12V DC


    * Applicated in WLAN accessing point and client

    * Based on 2.4GHz wireless coverage

    * Based on 2.4GHz wireless bridge network

    * Based on 2.4GHz wireless base stations
