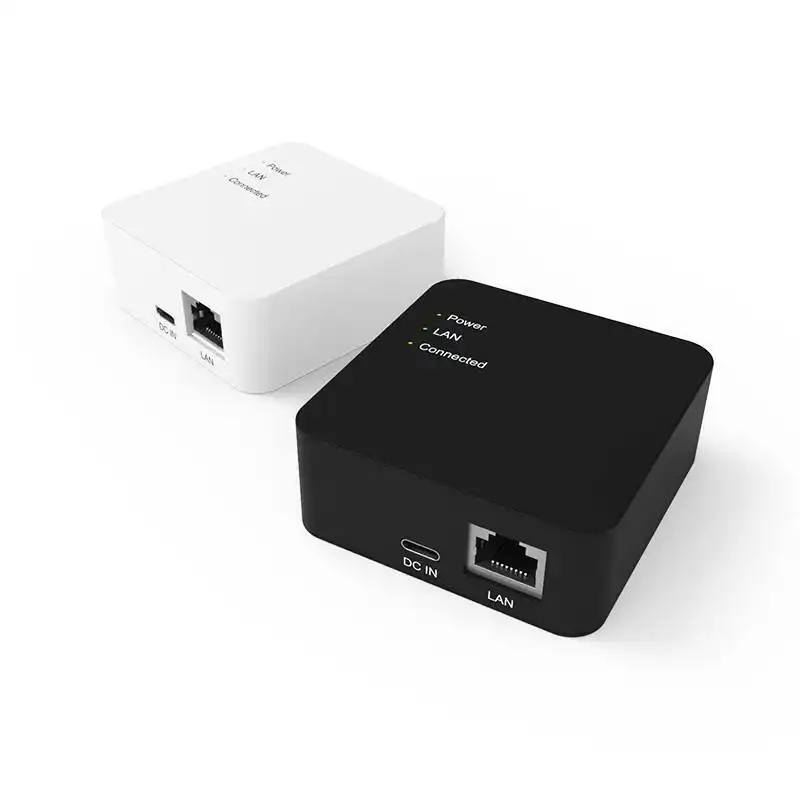

AMPLITEC Wlan TDMA Point To Point CPE Video Transmitter Wifi To Ethernet WDS Wireless Bridge Mode For Elevator Low loss
* Adopting a high-performance AR9531 chip, the maximum rate can reach 300Mbps, and the elevator transmission distance is 200 meters.
* Elevator bridge special design, the stable transmission of front-end camera.
* TDMA technology maximizes the use of bandwidth resources and better supports data transmission.
* It can be controlled and managed remotely via a web page for easy configuration.
Amplitec R&D started in 2006, focusing on mobile communication technology research, providing mobile communication public network cellular coverage equipment and large bandwidth, TDMA protocol-based wireless private network equipment.
The company's wireless private network equipment, which has been vigorously promoted in recent years, combines TDMA and 802.11a/b/g/n/ac/ax technologies, with the stability of industrial wireless private networks and the economy of commercial products.
The company's business direction is mainly focused on the application and development in the webcasting, industrial Internet, smart city, and smart security market, providing users with professional equipment and overall solutions for urban video surveillance based on a wireless private network.
After more than ten years of development, our cooperative customers spread across the whole industry, distributed in important fields such as urban security, forest fire prevention, ports and terminals, highways, drones, webcasting, etc., and have been recognized by users.
Product Model | AWB-802-L2(2.4G)/ AWB-805-L2(5.8G) |
Network Protocol | Management tools to automatically search for IP addresses; Web management |
Wireless Transmission Distance | 200 meters |
Support Capacity | 10 channel 2M stream IPC |
Networking Method | Point to point |
Wireless Standards | IEEE 802.11b/g/n（2*2 MIMO 300 Mbps） |
Working Frequency | 2300MHz～2700MHz(2.4G)/ 4900MHz～6100MHz(5.8G) |
Antenna Angle | Half-power beamwidth：65° ± 5° |
Reception Sensitivity | 87 ± 2dB @11Mbps |
Maximum Air Interface Transmission Rate | ≤ 300 Mbps |
Network Interface Type | 1 RJ45 ,10/100 Mbps self-adaptive |
Channel Width | 20/40 MHz |
Working Scenes | Elevator |
Security Mode | WPA2-PSK |
Security Mechanisms | Hide the wireless network name |
Network Mode | Bridging |
Management Approach | Web,client |
System Logs | System log information printing |
Software Updates | Web,Client Updates |
Power Input | 5 VTYPE-C, 2A |
Power Consumption | ≤6W |
Overall Dimensions | 72mm × 70mm × 27 mm |
Weight | 50 g (single device itself only) |
Working Temperature | -30℃~70℃ |
Working Humidity | 5% RH～95% RH Non-condensing |
Storage Temperature | -40℃~80℃ |
Storage Humidity | 5% RH～95% RH Non-condensing |
Installation Method | Wall-mounted |
Power Supply Method | TYPE-C power supply |
Packing Method | Pairs Pack |
* Adopting a high-performance AR9531 chip, the maximum rate can reach 300Mbps, and the elevator transmission distance is 200 meters.
* Elevator bridge special design, the stable transmission of front-end camera.
* TDMA technology maximizes the use of bandwidth resources and better supports data transmission.
* It can be controlled and managed remotely via a web page for easy configuration.
