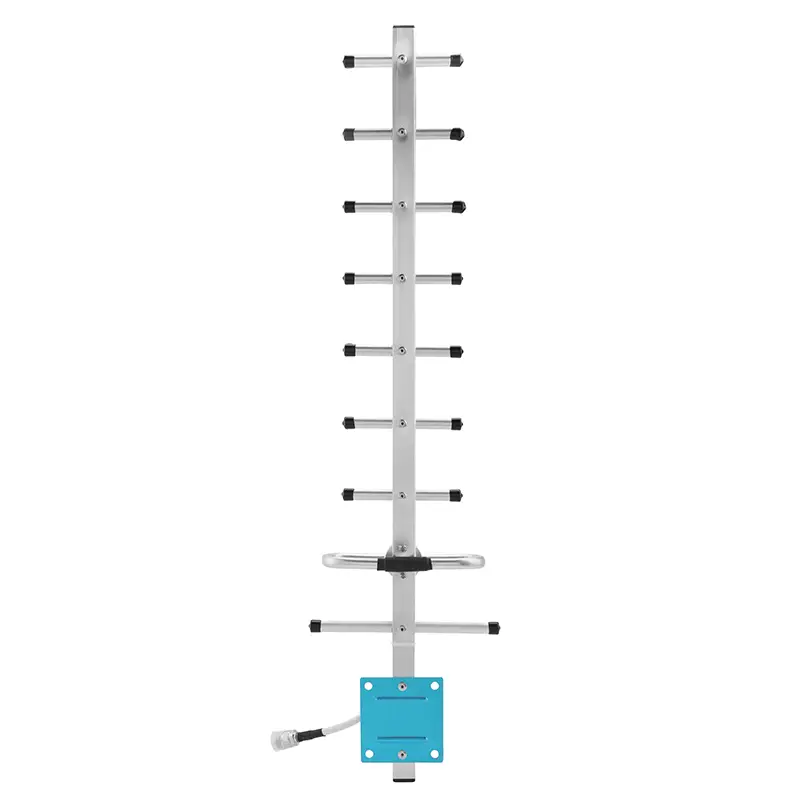

Amplitec Outdoor External Signal Receiver Mobile Cell Phone 10dBi Yagi Antenna

* Wide band, high gain and low VSWR.

* High quality aluminum alloy material.

* Good environmental adaptability.

* With cable leads.

* Can be installed horizontally or vertically.

* Outdoor signal Yagi cell phone antenna,frequency range 698~2700mhz,gain 9/14dBi,widely used as the donor antenna to receiving the signal from base station for mobile signal booster.

* Amplitec mobile cell phone signal yagi antenna is simple installation and stable performance.

* Amplitec signal receiver yagi anntena is small size and light weight design,but high gain 9/14dBi.

* Amplitec yagi signal antenna suitable for outdoor wall mounting and hold pole installation.

    oops...!

    no product data.

    Go to homepage

    Yagi antenna features good direction and high gain, especially suitable for direction detection and long distance communication. Yagi antenna is suitable for point to point transmission, and installed on pole.
    When used in point to point transmission, installation point and the receiving point must be in a straight line of sight range without any obstacle; when commissioning, the direction must align. The more accurate the pointing direction is, the higher the utility ratio is.

    MODEL

    OY8496-1062

    OY1720-1062

    OY1921-1062

    Frequency

    824-960MHz

    1710-2000MHz

    1920-2170MHz

    Gain

    10dBi

    VSWR

    ≤1.5

    Max power

    50W

    Impedance

    50Ω

    Polarization

    Vertical

    Horizontal Beamwidth

    62°

    Vertical Beamwidth

    60°

    Front to Back Ratio

    ≥16dB

    Lightning Protection

    DC Ground

    Weight

    0.78kg

    0.65kg

    0.65kg

    Dimension

    740×185mm

    670×185mm

    670×185mm

    Connector Type

    N-Female or customized

    Terminal line

    Black 5D-FB,L=300mm

    Hold pole diameter

    φ30-50mm



    * Wide band, high gain and low VSWR.

    * High quality aluminum alloy material.

    * Good environmental adaptability.

    * With cable leads.

    * Can be installed horizontally or vertically.



    * Outdoor signal Yagi cell phone antenna,frequency range 698~2700mhz,gain 9/14dBi,widely used as the donor antenna to receiving the signal from base station for mobile signal booster.

    * Amplitec mobile cell phone signal yagi antenna is simple installation and stable performance.

    * Amplitec signal receiver yagi anntena is small size and light weight design,but high gain 9/14dBi.

    * Amplitec yagi signal antenna suitable for outdoor wall mounting and hold pole installation.

    Project Case:



    Amplitec Outdoor External Signal Receiver Mobile Cell Phone 10dBi Yagi Antenna 3Amplitec Outdoor External Signal Receiver Mobile Cell Phone 10dBi Yagi Antenna 4
