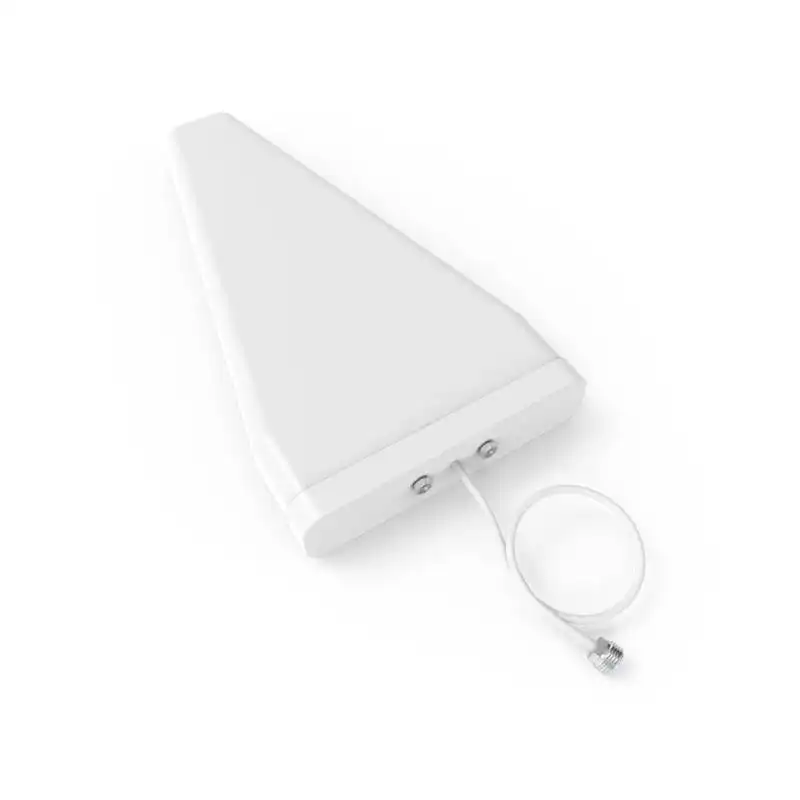

AMPLITEC 11dBi Outdoor Donor Mobile Network Celluar Log Periodic Dipole Antenna For Signal Booster Low loss
* Wide band and high gain.
* Elegant appearance, simple installation, stable performance.
* Good performance in anti-vibration and resistant to aging.
* Can be installed indoor or outdoor on pole.
* Outdoor cellular signal log periodic antenna,frequency range 698~2700mhz,gain 9/11dBi,widely used as the donor antenna to receiving the signal from base station for mobile signal booster.
* Amplitec mobile cell phone signal log periodic antenna is simple installation and stable performance.
* Amplitec signal receiver log periodic anntena is small size and light weight design,but high gain 9/11dBi.
* Amplitec log periodic antenna suitable for indoor and outdoor wall mounting.
Log Periodic Dipole Antenna is a kind of wide band antenna, and affiliated to directional panel antenna. Usually used as donor antenna and in situation where signal coverage reaches to the elevator.
|
Model |
OY8025-1165 |
|
Frequency Range |
824-960/1710-2500-MHz |
|
Bandwidth |
136/790-MHz |
|
Gain |
11-dBi |
|
Beamwidth |
H：65/50° E：50/40° |
|
F/B ratio |
≥18-dB |
|
VSWR |
≤1.5 |
|
Polarization |
Vertical |
|
Max power |
100 –W |
|
Nominal Impedance |
50 Ω |
|
Connector |
N female or customized |
|
Antenna Dimension |
410x215x65-mm |
|
Weight |
1 kg |
|
Rated Wind Velocity |
60 m/s |
|
Mounting Kits |
L bracket & U bolts |
|
Mounting Mast Diameter |
Ф40-Ф50-mm |
* Wide band and high gain.
* Elegant appearance, simple installation, stable performance.
* Good performance in anti-vibration and resistant to aging.
* Can be installed indoor or outdoor on pole.
* Outdoor cellular signal log periodic antenna,frequency range 698~2700mhz,gain 9/11dBi,widely used as the donor antenna to receiving the signal from base station for mobile signal booster.
* Amplitec mobile cell phone signal log periodic antenna is simple installation and stable performance.
* Amplitec signal receiver log periodic anntena is small size and light weight design,but high gain 9/11dBi.
* Amplitec log periodic antenna suitable for indoor and outdoor wall mounting.
