Specialize in Signal Repeater & Jammer R&D and manufacturing since 2006

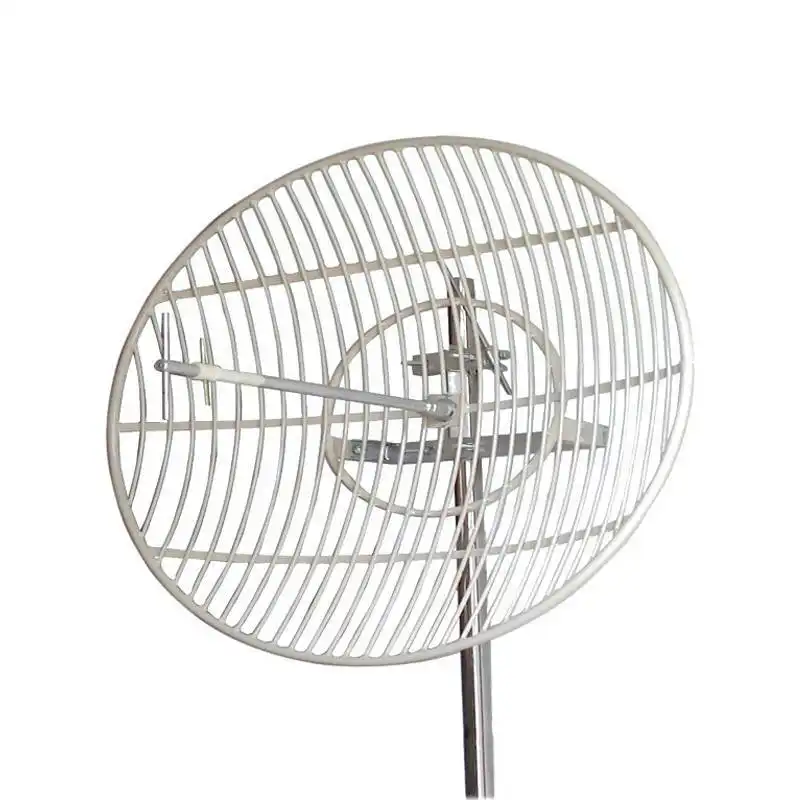

Amplitec High Gain 2g 3g 4g Mobile Network Cell Phone Signal Outdoor Grid Parabolic Antenna 1
Amplitec High Gain 2g 3g 4g Mobile Network Cell Phone Signal Outdoor Grid Parabolic Antenna 2
Amplitec High Gain 2g 3g 4g Mobile Network Cell Phone Signal Outdoor Grid Parabolic Antenna 1
Amplitec High Gain 2g 3g 4g Mobile Network Cell Phone Signal Outdoor Grid Parabolic Antenna 2

Amplitec High Gain 2g 3g 4g Mobile Network Cell Phone Signal Outdoor Grid Parabolic Antenna

* Amplitec outdoor high gain 18dBi parabolic grid antenna,4g 5g network booster antenna,frequency range 698~3800mhz,suitable for outdoor remote rural area.

* Elegant appearance, simple installation, stable performance.

* Good performance in anti-vibration and resistant to aging.

* Fit for Outdoor Hold Pole mounted.

    oops...!

    no product data.

    Go to homepage

    -Why All People Must Choose Amplitec High Gain Signal Antennas?

    -Amplitec handle many engineering cases around the world,we have rich experience in mobile phone signal coverage project.

    -Amplitec Own Chinese the largest signal antennas manufacturing factory,so our quality control and production capacity leading the world.

    -Most of Amplitec's signal antennas and booster have certificates,such as CE,RoHS,FCC,etc...

    -Amplitec have rich exhibition experience,our signal antennas and boosters are recognized in many regions around the world.

    Advantage:

    1、Quality advantage:100% test, 5 test process during production, FA,singl time pass rate 99%,

    2、Technical advantage:high gain, low attenuation, signal receiving ability 30 engineers have helped us develop our   current selection and trained our 200 production workers to ensure they stay on top of the latest technology.


    OEM&ODM

    1、R & D, design, Packing, size, color.

    2、Magnetic, adhesive, or screwing mouting as per customer’s installation requirement.
    3、Can meet your unique requirement, for example waterproof, salt spray proofing, UV protect and so on.

    Fast Delivery

    1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.


    Repairing And Maintanance:

    Replacement or maintanance for 1 year as quality guarantee.


    Electrical and RF testing

    Climatic cabinet: 80℃ to +150℃ / 5% to 98% humidity.

    Temperature cabinet: up to 250℃.

    Salt spray cabinet: IEC68-2-150.

    Durability test: Mating cycles/ Ware off/ Deflection.

    ROHS Test.

    Force test: up to 2,5 KN/ 200Kg-cm up to 2,5 KN/ 200Kg-cm.


    Environmental and Mechanical testing

    Network Analyser: up to 8 GHz.

    Further equipment: High Power up to 50A/ High Voltage up to 5KV/ Isolation resistance up to IKM Ohm/ Contact resistance m Ohm area.

    Anechoic chamber-Antenna diagrams/ Power ratings/ Frequency range 400MHz up to 18 GHz, Attenuation 100dB.

    Frequency

    698~960/ 1710~2700/ 3300~3800 MHz

    Bandwidth

    262 / 990 / 500 MHz

    Gain

    15 / 18 / 15 dBi

    VSWR

    ≤1.5

    Max power

    100W

    Impedance

    50Ω

    Polarization

    Vertical

    Horizontal Beamwidth

    20°/25°/14°

    Vertical Beamwidth

    30°/12°/20°

    Front to Back Ratio

    ≥30dB

    Rated Wind Velocity

    60m/s

    Lightning Protection

    DC Ground

    Weight

    3kg

    Color

    Grey

    Dimension

    900×600×600mm

    Connector Type

    N-Female or customized

    Ingression Grade

    IP65

    Terminal line

    white 3D-FB, L=30mm

    Radiating Element Material

    Aluminum Alloy

    Radome Material

    UV-Resistance ABS


    Grid Parabolic Antenna

    Outdoor antenna


    * Amplitec outdoor high gain 18dBi parabolic grid antenna,4g 5g network booster antenna,frequency range 698~3800mhz,suitable for outdoor remote rural area.

    * Elegant appearance, simple installation, stable performance.

    * Good performance in anti-vibration and resistant to aging.

    * Fit for Outdoor Hold Pole mounted.

    Amplitec High Gain 2g 3g 4g Mobile Network Cell Phone Signal Outdoor Grid Parabolic Antenna
