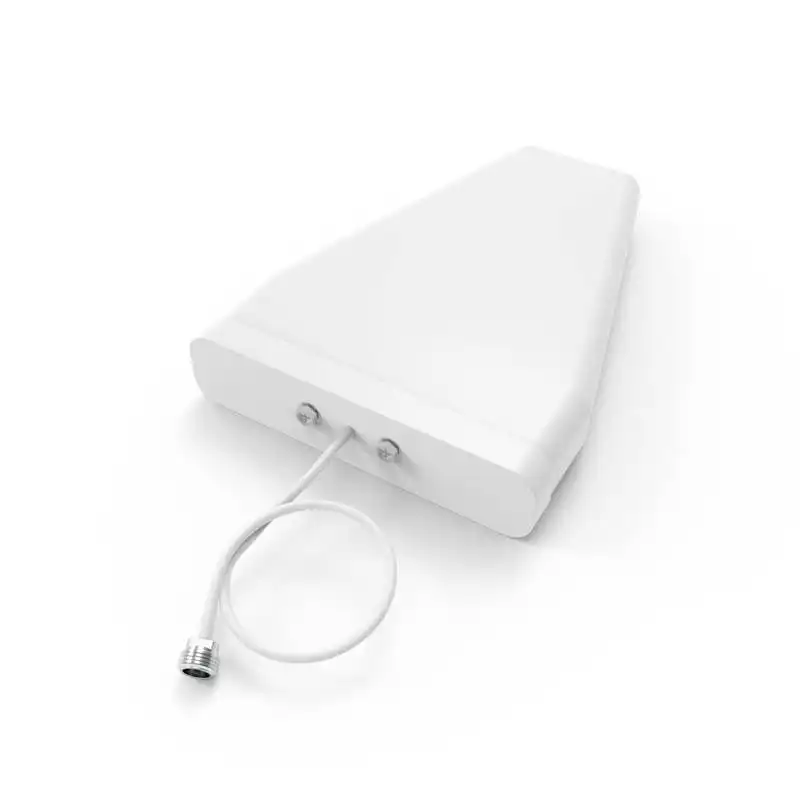

AMPLITEC Mobile Network Celluar Log Periodic Dipole Indoor Signal Antenna For Signal Repeater
* Wide band and high gain, low VSWR.
* Elegant appearance, simple installation, stable performance.
* Good performance in anti-vibration and resistant to aging.
* Can be installed indoor or outdoor on pole.
Log Periodic Dipole Antenna is a kind of wide band antenna, and affiliated to directional panel antenna. Usually used as donor antenna and in situation where signal coverage reaches to the elevator.
Outdoor cellular signal log periodic antenna,frequency range 698~2700mhz,gain 9/11dBi,widely used as the donor antenna to receiving the signal from base station for mobile signal booster.
Amplitec mobile cell phone signal log periodic antenna is simple installation and stable performance.
Amplitec signal receiver log periodic anntena is small size and light weight design,but high gain 9/11dBi.
Amplitec log periodic antenna suitable for indoor and outdoor wall mounting.
MODEL | OY8025-0965 |
Frequency | 806-960/1710-2500MHz |
Gain | 8.2dBi@806-960,9.5dBi@1710-2500 |
VSWR | ≤1.4 |
Max power | 100W |
Impedance | 50Ω |
Polarization | Vertical |
Horizontal Beamwidth | 65° |
Vertical Beamwidth | 55° |
Front to Back Ratio | ≥18dB |
Lightning Protection | DC Ground |
Weight | 0.87kg |
Color | white |
Dimension | 293×210×65mm |
Connector Type | N-Female or customized |
Terminal line | White 5D-FB, L=350mm |
Radiating Element Material | copper |
Radome Material | UV-Resistance ABS |
* Wide band and high gain, low VSWR.
* Elegant appearance, simple installation, stable performance.
* Good performance in anti-vibration and resistant to aging.
* Can be installed indoor or outdoor on pole.
