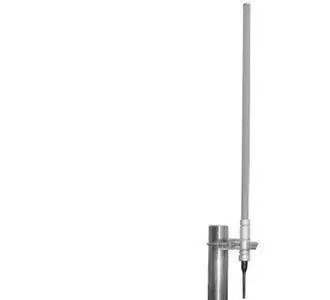

AMPLITEC 11dBi Outdoor Cell Phone External Signal Receiver Fiberglass 360° Omni Antenna Low loss
* High gain and low VSWR.
* With high quality of Radome material, elegant appearance, UV protection.
* With bottom springs protection.
* Suitable for outdoor coverage.
* Frequency range 698~2700MHz,gain 11dBi.
* 360° receive good signal sources, ideal for installation and use in urban environments such as office buildings, cinemas, and coffee shops.
Fiberglass 360° Omni Antenna features low VSWR, high gain, anti-erosion and anti-wind and water-proof etc.
Usually installed outdoors to cover an area close to it with 360° homogenous radiation.
The 11dBi high gain can easily obtain the best signal source, ensuring that the mobile phone signal booster can work well, and the 360° omnidirectional is very convenient, automatically obtaining the best nearby base station signal. IP65 waterproof material, made of high-quality wear-resistant and corrosion-resistant materials, can be used as usual even in bad weather, without affecting the use effect, and the service life is very long, far superior to most suppliers.
It is easy to install. It only needs to be installed and fixed in high places such as the roof where good signal sources can be received. It is very suitable for installation and use in urban environments such as office buildings, cinemas, and coffee shops.
|
MODEL |
OO8796-11360 |
OO1718-11360 |
|
Frequency |
870-960MHz |
1710-1880MHz |
|
Gain |
11dBi |
11dBi |
|
VSWR |
≤1.5 |
≤1.4 |
|
Horizontal& Beamwidth |
360° |
360° |
|
Vertical& Beamwidth |
6° |
7° |
|
Max& power |
500W |
200W |
|
Impedance |
50Ω |
|
|
Polarization |
Vertical |
|
|
Lightning& Protection |
DC& Ground |
|
|
Weight |
7.5kg |
6kg |
|
Dimension |
Φ65×3560mm |
Φ50×1800mm |
|
Color |
beige |
|
|
Connector& Type |
N-K& or& customized |
|
|
Radiating& Element& Material |
copper |
|
|
Max& wing& velocity |
200Km/h |
|
* High gain and low VSWR.
* With high quality of Radome material, elegant appearance, UV protection.
* With bottom springs protection.
* Suitable for outdoor coverage.
* Frequency range 698~2700MHz,gain 11dBi.
* 360° receive good signal sources, ideal for installation and use in urban environments such as office buildings, cinemas, and coffee shops.
