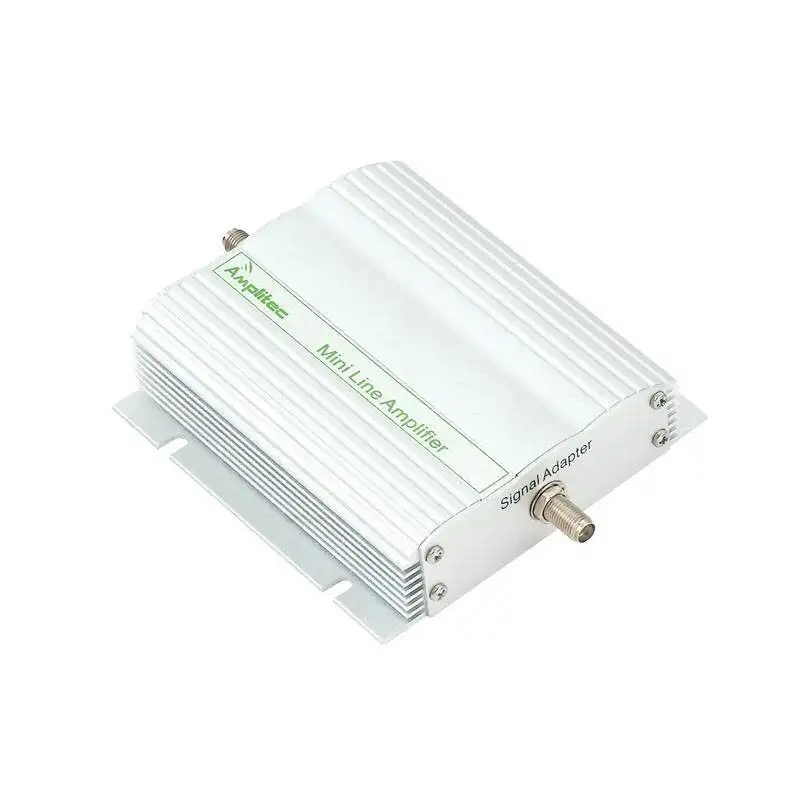

15 dBm Mini Line Amplifier

15 dBm Mini Line Amplifier

* 15dBm output, small and elegant appearance.

* Work with indoor repeaters to expand coverage.

* Reduce cellphone transmit power and radiation, extend cellphone battery life.

* Coverage up to 100 ~ 300 m².

* Low UL noise design, improve repeater sensitivity, keep communication quality.

    oops...!

    no product data.

    Go to homepage

    Line amplifiers are actually applied as linear amplifier, it is used as the indoor coverage solution and must worked with mobile signal repeater. It amplifies transmitting RF signal in order to compensate signal loss by excessive cable or components.

    It is composed by two independent links: Uplink (or Forward Link) and Down Link (or Reverse Link). Downlink receives donor signals from BTS or Repeaters and amplify the donor signals; Uplink receives and amplifies signals from MS, in order to improve indoor coverage extension.

    Amplifier enhances consumer satisfaction greatly with its integrated design, compact size, easy engineering and rapid installation and debugging.

    Standard package
    1) AC90-260V,DC9V/2A  power supply (EU standard/ US standard/UK standard/ SA standard/China standard,etc) 1PCS
    2) Installation kit 1PCS
    3) User manual 1PCS


    Model frequency

    Model

    Frequency range

    Uplink

    Downlink

    L33

    EGSM/ LTE 8

    880-915MHz

    925-960MHz

    GSM

    890-915MHz

    935-960MHz

    DCS/ LTE 3

    1710-1785MHz

    1805-1880MHz

    PCS/ LTE 2

    1850-1910MHz

    1930-1990MHz

    CDMA/ LTE 5

    824-849MHz

    869-894MHz

    WCDMA/ LTE 1

    1920-1980MHz

    2110-2170MHz

    IDEN

    806-824MHz

    851-869MHz

    AWS/ LTE 4

    1710~1755MHz

    2110~2155MHz



    Electrical Specification

    Items

    Uplink

    Downlink

    Frequency Range

    CDMA800 & GSM850

    824 ~ 849 MHz

    869 ~ 894 MHz

    GSM900

    890 ~ 915MHz

    935 ~ 960 MHz

    DCS

    1710 ~ 1785 MHz

    1805 ~ 1880 MHz

    PCS

    1850 ~ 1910 MHz

    1930 ~ 1990 MHz

    WCDMA

    1920 ~ 1980 MHz

    2110 ~ 2170 MHz

    Max.Gain

    ≧15dB

    ≧20dB

    Bandwidth

    Wide Band

    Ripple in Band

    ±3dB

    Max. Input Power Without Damage

    0dBm

    10dBm

    Output Power

    ≧0dBm

    ≧15dBm

    Intermodulation Products

    9KHz~1GHz

    ≦ -36dBm

    ≦ -20dBm

    1GHz~12.75GHz

    ≦ -30dBm

    ≦ -20dBm

    Spurious Emission

    9KHz~1GHz

    ≦ -36dBm

    ≦ -36dBm

    1GHz~12.75GHz

    ≦ -30dBm

    ≦ -30dBm

    Spurious Emission Mask( WCDMA )

    Complies with 3GPP TS 25.106

    Modulation Accuracy( WCDMA )

    Complies with 3GPP TS 25.106

    Peak Code Domain Error( WCDMA )

    Complies with 3GPP TS 25.106

    ACRR( WCDMA )

    ≥30dB @ ±5MHz & ±10MHz

    Noise Figure @ max. gain

    ≦6dB(Typical)

    Return loss

    ≦-10dB

    Time Delay

    ≦0.5μs

    MTBF

    > 50000hours

    Power Supply

    AC:90~265V, 50/ 60Hz; DC:9V2A

    Power Consumption

    < 10W

    Impedance

    50 ohm

    Input Signal Levels

    -60dBm or more

    -15dBm to -5dBm

    LED Indication

    DC ON/OFF



    Mechanical Specification

    RF Connector

    N-Female

    Switch

    Power SwitchManual Gain Control Switch

    Cooling

    Heatsink Convection cooling

    Dimensions (D x W xH )

    93 * 92 * 25 (mm)

    Weight

    < 0.7 Kg

    Installation Type

    Wall Installation(or Pole Mount)

    Environment Conditions

    IP40

    Humidity

    < 90%

    Operating Temperature

    -10℃ ~ 55℃



    15 dBm Mini Line Amplifier 4

    * 15dBm output, small and elegant appearance.

    * Work with indoor repeaters to expand coverage.

    * Reduce cellphone transmit power and radiation, extend cellphone battery life.

    * Coverage up to 100 ~ 300 m².

    * Low UL noise design, improve repeater sensitivity, keep communication quality.



    15 dBm Mini Line Amplifier 5
