* Dust proof design, prolong equipment lifetime.
* Support 2 system.
* Work with indoor repeaters to expand coverage.
* Reduce cellphone transmit power and radiation, extend cellphone battery life.
* Coverage up to 5000~30000 m².
* Low UL noise design, improve repeater sensitivity, keep communication quality.
* Local and remote monitoring function (RS232/wireless modem).

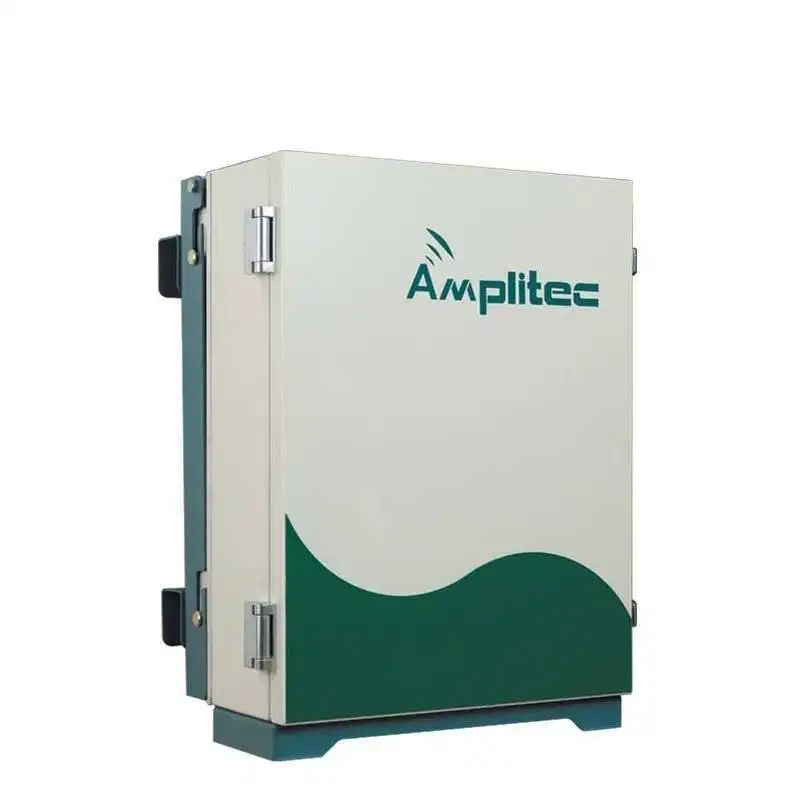

Line amplifiers are actually applied as linear amplifier, it is used as the indoor coverage solution and must worked with mobile signal repeater. It amplifies transmitting RF signal in order to compensate signal loss by excessive cable or components.
It is composed by two independent links: Uplink (or Forward Link) and Down Link (or Reverse Link). Downlink receives donor signals from BTS or Repeaters and amplify the donor signals; Uplink receives and amplifies signals from MS, in order to improve indoor coverage extension
Amplifier enhances consumer satisfaction greatly with its integrated design, compact size, easy engineering and rapid installation and debugging
Standard package
1) AC power cable (EU standard/ US standard/UK standard/ SA standard/China standard, etc) 1PCS
2) Installation kit 1PCS
3) User manual 1PCS
Frequency range | Uplink | Downlink |
EGSM / LTE8 | 880-915MHz | 925-960MHz |
GSM | 890-915MHz | 935-960MHz |
DCS / LTE3 | 1710-1785MHz | 1805-1880MHz |
PCS / LTE2 | 1850-1910MHz | 1930-1990MHz |
CDMA / LTE5 | 824-849MHz | 869-894MHz |
WCDMA / LTE1 | 1920-1980MHz | 2110-2170MHz |
IDEN | 806-824MHz | 851-869MHz |
AWS / LTE4 | 1710~1755MHz | 2110~2155MHz |
Items | Uplink | Downlink | |
Frequency Range | GD | 890 ~ 915 MHz & 1710 ~ 1785 MHz | 935 ~ 960 MHz & 1805 ~ 1880 MHz |
CP | 824 ~ 849 MHz & 1850 ~ 1910 MHz | 869 ~ 894 MHz & 1930 ~ 1990 MHz | |
GW | 890 ~ 915 MHz & 1920 ~ 1980 MHz | 935 ~ 960 MHz & 2110 ~ 2170 MHz | |
DW | 1710 ~ 1785MHz &1920 ~ 1980MHz | 1805 ~ 1880MHz & 2110 ~ 2170MHz | |
Max.Gain | ≧35dB | ≧40dB | |
Manual Gain Control | 31dB in step of 1dB | ||
Automatic Gain Control | >20dB | ||
Bandwidth | Wide Band | ||
Ripple in Band | ±2dB | ||
Max. Input Power Without Damage | 0dBm | 10dBm | |
Output Power | ≧0dBm | ≧33dBm | |
Intermodulation Products | 9KHz~1GHz | ≦ -36dBm | ≦ -45dBm |
1GHz~12.75GHz | ≦ -30dBm | ≦ -45dBm | |
Spurious Emission | 9KHz~1GHz | ≦ -36dBm | ≦ -36dBm |
1GHz~12.75GHz | ≦ -30dBm | ≦ -30dBm | |
Spurious Emission Mask( WCDMA ) | Complies with 3GPP TS 25.106 | ||
Modulation Accuracy( WCDMA ) | Complies with 3GPP TS 25.106 | ||
Peak Code Domain Error( WCDMA ) | Complies with 3GPP TS 25.106 | ||
ACRR( WCDMA ) | ≥30dB @ ±5MHz &±10MHz | ||
Noise Figure @ max. gain | ≦5dB(Typical) | ||
Return loss | ≦-14dB | ||
Time Delay | ≦0.5μs | ||
MTBF | > 50000hours | ||
Power Supply | AC:90~265V, 50/ 60Hz | ||
Power Consumption | <200W | ||
Impedance | 50 ohm | ||
Input Signal Levels | -60dBm or more | -15dBm to -5dBm | |
LED indication | Power LED | DC ON/OFF | |
Alarm LED | Normal :Green ; Any Alarm Happen: Red | ||
Remote/ Local Control | Local:Via RS232 ; Remote:Via wireless Modem |
RF Connector | N-Female |
Switch | Power Switch |
Cooling | Heatsink Convection cooling |
Dimensions (D x W xH ) | 400 * 550 * 215 (mm) |
Weight | < 27 Kg |
Installation Type | Wall Installation(or Pole Mount) |
Environment Conditions | IP55 |
Humidity | < 90% |
Operating Temperature | -10℃ ~ 55℃ |
* Dust proof design, prolong equipment lifetime.
* Support 2 system.
* Work with indoor repeaters to expand coverage.
* Reduce cellphone transmit power and radiation, extend cellphone battery life.
* Coverage up to 5000~30000 m².
* Low UL noise design, improve repeater sensitivity, keep communication quality.
* Local and remote monitoring function (RS232/wireless modem).
