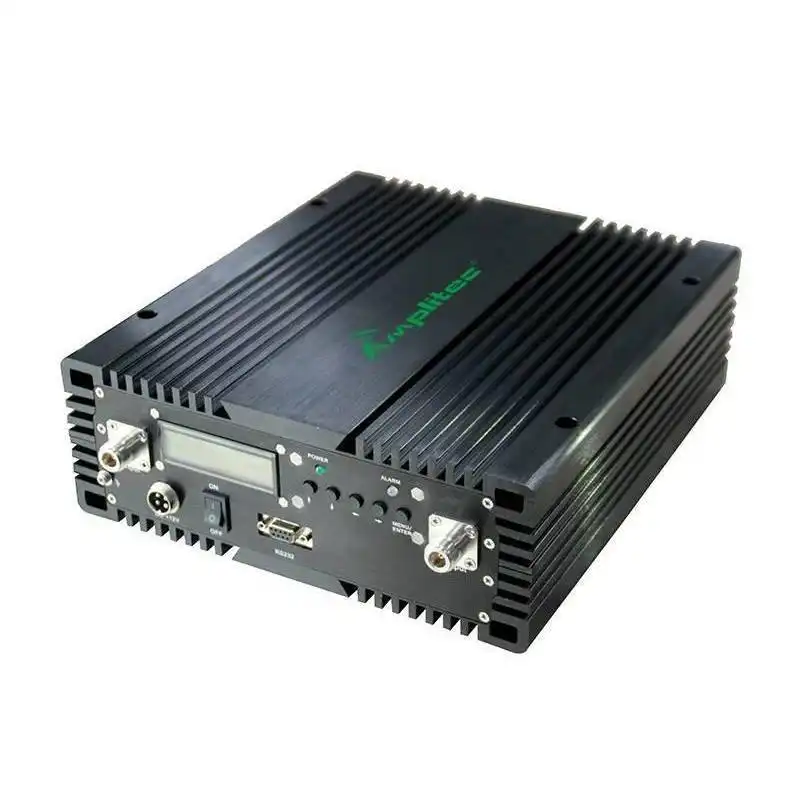

AMPLITEC 17~24dBm Dual Band Multi Selective Repeater with OMT Low loss

    oops...!

    no product data.

    Go to homepage

          Dual Band Selective Repeater is an important part of the mobile net work wireless coverage construction. It mainly receives processes and amplifies RF signal, in this way extends to BTS coverage. It provides a rapid and perfect solution to solve and optimize the weak signal of houses, offices, hotels, elevators, underground parking lots and other small weak signal area.
          The Repeater has ALC and ATT function, which offer the product reliability and the coverage stable signal technically. In addition, it has ALC warning directive function to let users knowing signal quality by the indicator's colour.
         Indoor band selective repeater enhances consumer satisfaction greatly with its integrated design, compact size, easy engineering and rapid installation and debugging.
         Indoor mini band selective repeater series is made with the characteristics of industrial aesthetic design, and thus can be installed in high-class places as a decoration.
          SAW filter technology enables it to amplify only the targeted operator’s signals and reject all the others effectively, it is, therefore, an optimal solution for coverage extension.


    Standard Package
    1) DC12V/10A power supply 1PCS
    2) AC power cord (EU standard /US standard/UK standard/SA standard/China standard, etc ) 1PCS
    3) Installation kit 1PCS
    4) User manual 1PCS


    Items

    Uplink

    Downlink

    Frequency Range

    890 ~ 915 MHz 1710 ~ 1785 MHz

    935 ~ 960 MHz 1805 ~ 1880 MHz

    824 ~ 849 MHz 1850 ~ 1910 MHz

    869 ~ 894 MHz 1930 ~ 1990 MHz

    890 ~ 915 MHz 1920 ~ 1980 MHz

    935 ~ 960 MHz 2110 ~ 2170 MHz

    Max. Gain

    65 - 70 dB

    70 - 75 dB

    Bandwidth

    available upon request (1-3 selectable bands)

    Manual Gain Control

    31dB in step of 1dB

    Automatic Gain Control

    >20dB

    Ripple in Band

    ≤3dB(Typical)

    Out of Band Gain

    ± 400 KHz ≦ 50 dB

    ± 600 KHz ≦40 dB

    ± 1 MHz ≦ 35 dB

    ± 5 MHz ≦ 25 dB

    Max. Input Power Without Damage

    0 dBm

    Output Power

    15-20 dBm

    17~24 dBm

    Intermodulation Products

    ≦ -36 dBm

    ≦ -36 dBm

    ≦ -30 dBm

    ≦ -30 dBm

    Spurious Emission

    ≦ -36 dBm

    ≦ -36 dBm

    ≦ -30 dBm

    ≦ -30 dBm

    Spurious Emission Mask( WCDMA )

    Complies with 3GPP TS 25.106

    Modulation Accuracy( WCDMA )

    Complies with 3GPP TS 25.106

    Peak Code Domain Error( WCDMA )

    Complies with 3GPP TS 25.106

    ACRR( WCDMA )

    ≥ 30dB @ ±5MHz & ±10MHz

    Frequency Stability

    ≤0.01 ppm

    Noise Figure @ max. gain

    ≦8 dB(Typical)

    Return loss

    ≦-10 dB

    Time Delay

    ≦4.5 μs

    MTBF

    > 50000 hours

    Power Supply

    AC: 90~265V, 50/ 60HzDC:12V 10A

    Power Consumption

    <55W

    Impedance

    50 ohm

    LED indication

    DC ON/OFF

    Normal :Green Any Alarm Heppen: Red

    Remote/ Local Control

    Local:Via RS232 Remote Via CDMA Modem
