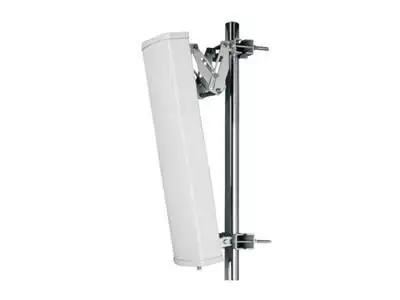

AMPLITEC 18dBi Outdoor Directional Panel Antenna Low loss
* High gain and low VSWR
* FRP Radome
* Strong Anti-corrosion ability
* Can be with Built-in connector
* With the angle Adjustable pole installation kits
Outdoor Directional Panel Antenna is a kind of mobile communication system antenna, mainly used outdoors.
Its advantages: high gain, good emission direction, small back lobe, easy control on the depression angle of the vertical surface, reliable seal ability and long life span.
MODEL | OP8096-1565 | OP1718-1865 |
Frequency | 849MHz～960MHz | 1710MHz～1880MHz |
Gain | 18dBi | |
VSWR | ≤1.4 | |
Horizontal Beamwidth | 65° | 65° |
Vertical Beamwidth | 7° | 6.5° |
Front-to-back ratio | 28dB | 25dB |
Max power | 500W | 300W |
Impedance | 50Ω | |
Polarization | Vertical | |
Lightning Protection | DC Ground | |
Weight | 13.5kg | 9kg |
Dimension | 2230×290×135mm | 1300×160×65mm |
Connector Type | N-Female or customized | |
Radiating Element Material | aluminum alloy | |
Material | Fiberglass | |
Adjustable angle | 0°-15° | |
Color | beige | |
Max wing velocity | 60M/S | |
Pole Installation | Φ40-80mm | |
Temperature | -40℃~ +70°℃ | |
* High gain and low VSWR
* FRP Radome
* Strong Anti-corrosion ability
* Can be with Built-in connector
* With the angle Adjustable pole installation kits
