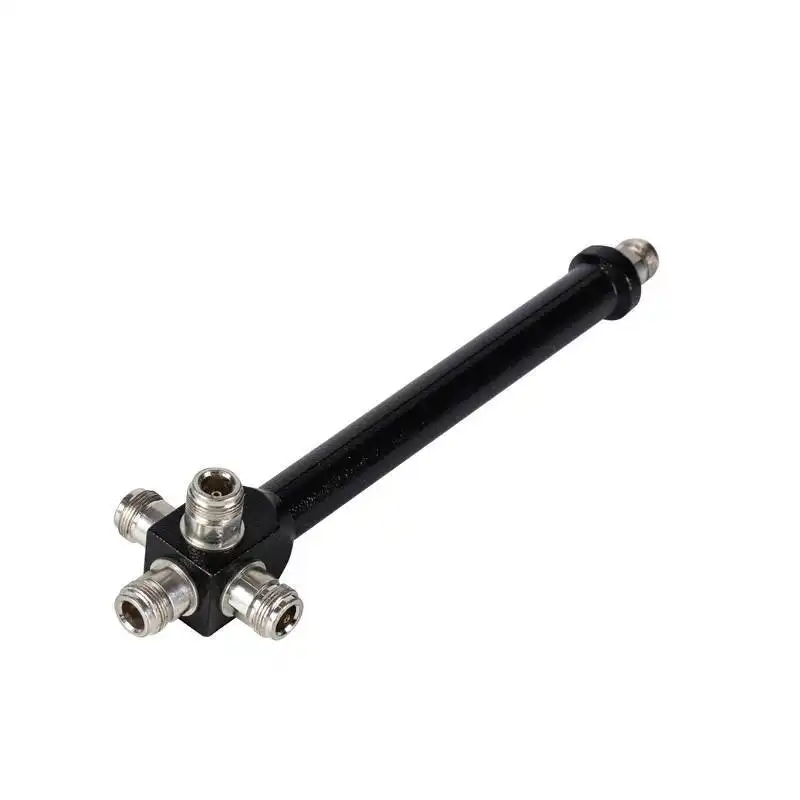

AMPLITEC 2 3 4 Way Antenna Prong Power Coaxial Cable Rf Cavity Splitter For Signal Booster Low loss
* Amplitec 2 way,3 way,4way power splitter,freuency range 698~3800MHz,N-female connector.
* Low PIM,Low Insertion Loss,Low VSWR,High Isolation.
* Compact size,light weight.
-Why All People Must Choose Amplitec When Purchase Cavity Splitter?
-Amplitec handle many engineering cases around the world,we have rich experience in mobile phone signal coverage project.
-Amplitec Own Chinese the largest signal antennas manufacturing factory,so our quality control and production capacity leading the world.
-Most of Amplitec's signal antennas and booster have certificates,such as CE,RoHS,FCC,etc...
-Amplitec have rich exhibition experience,our signal antennas and boosters are recognized in many regions around the world.
Power divider: power divider, which divides the signal power of one port equally to the output port; combiner: power combining, adding two or more signals to one port; coupler: coupling the signal to the coupling in proportion port. The power divider is used in reverse, which is a combiner. The coupler can be considered as a kind of power divider, but it is not equal. 2. Coupler: It is to distribute an input signal to multiple outputs in proportion; for example, a 10db coupler, the input signal is 50db, the output signal is direct output and coupled output, respectively, 50db-insertion loss, 40db-insertion loss.
|
Model: |
SP0727-2NB |
SP0727-3NB |
SP0727-4NB |
|
Frequency Band (MHz) |
698 ~ 2700 |
698 ~ 2700 |
698 ~ 2700 |
|
Input Port |
1 |
1 |
1 |
|
Output Ports |
2 |
3 |
4 |
|
Split Loss(dB) |
≤ 3.1 |
≤ 5.1 |
≤ 6.3 |
|
Insertion Loss (dB) |
≤ 0.3 |
≤ 0.45 |
≤ 0.55 |
|
VSWR |
≤ 1.25 |
≤ 1.25 |
≤ 1.25 |
|
PIM (dBc) @2*43dBm |
≤ -120 |
≤ -120 |
≤ -120 |
|
Average Power(W) |
300 |
300 |
300 |
|
RF Connector |
3 x N-female |
4 x N-female |
5 x N-female |
|
Working Temperature (℃) |
-35~+65 |
-35~+65 |
-35~+65 |
|
Relative Humidity |
5% ~ 95% |
5% ~ 95% |
5% ~ 95% |
|
Impedance (Ω) |
50 |
50 |
50 |
|
Cavity Material |
Aluminum |
Aluminum |
Aluminum |
|
Environmental Conditions |
IP65 |
IP65 |
IP65 |
|
Color |
Black-plated |
Black-plated |
Black-plated |
|
Weight(kg) |
≤ 0.4 |
≤ 0.45 |
≤ 0.5 |
|
Model Name |
SP0738-2NB |
SP0738-3NB |
SP0738-4NB |
|
Frequency Range (MHz) |
698-3800 |
||
|
Channel |
2 Way |
3 Way |
4 Way |
|
Distribution Loss(dB) |
3.6 |
5.7 |
6.7 |
|
Insertion Loss (dB) |
≤0.3 |
≤0.4 |
≤0.5 |
|
Return Loss (dB) |
≥19 |
||
|
PIM3 (@2x43 dBm Carrier) (dBc) |
≤-150 |
||
|
Input Power (W) |
≤300 |
||
|
Connector Type |
N-female |
||
|
Mounting |
Wall Mounted |
||
|
Operational Temperature (°C) |
-35 to +60 |
||
|
Operational Humidity (%) |
≤95 |
||
|
Ingress Protection Class |
IP65(Indoor and Outdoor) |
||
* Amplitec 2 way,3 way,4way power splitter,freuency range 698~3800MHz,N-female connector.
* Low PIM,Low Insertion Loss,Low VSWR,High Isolation.
* Compact size,light weight.
