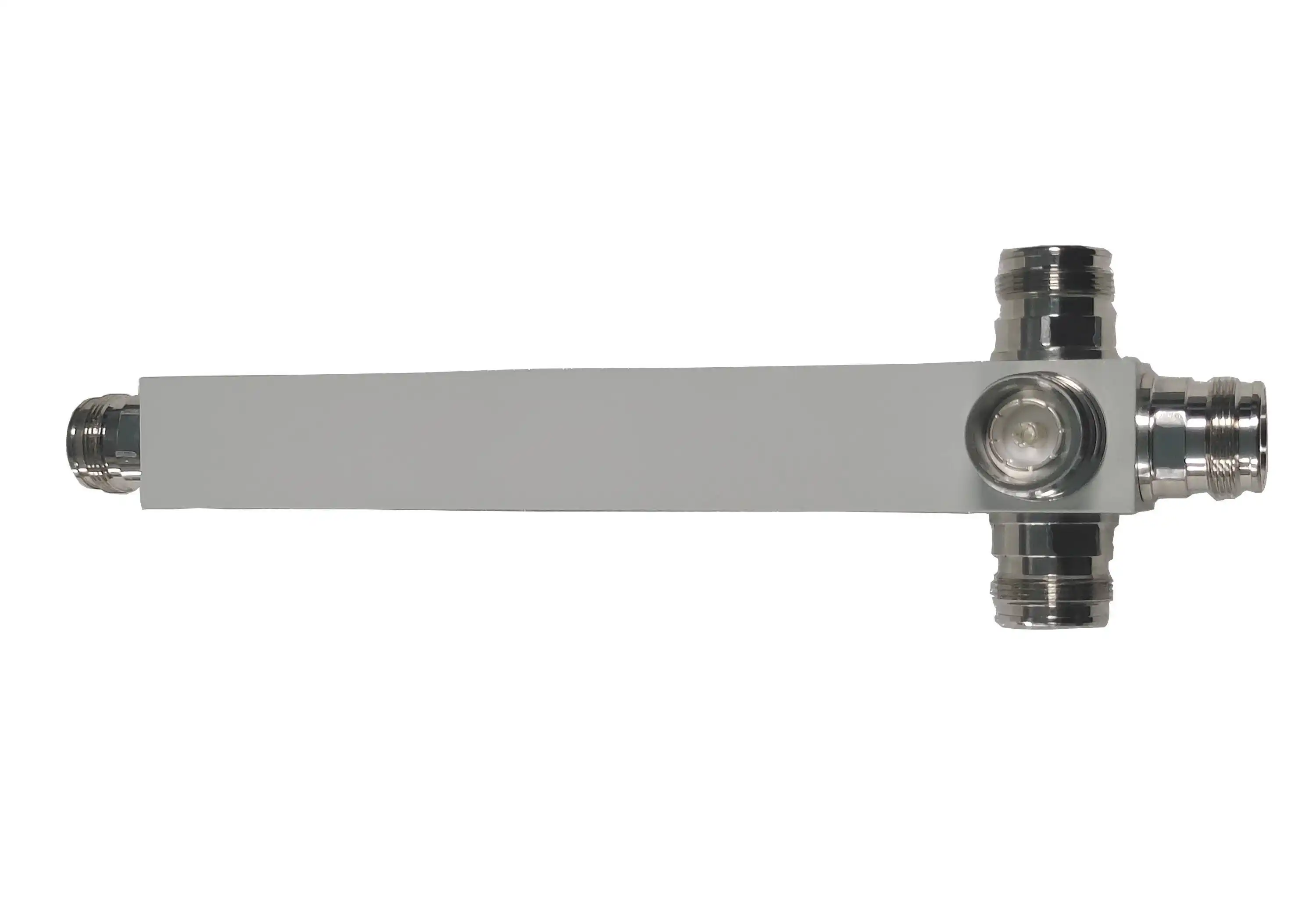

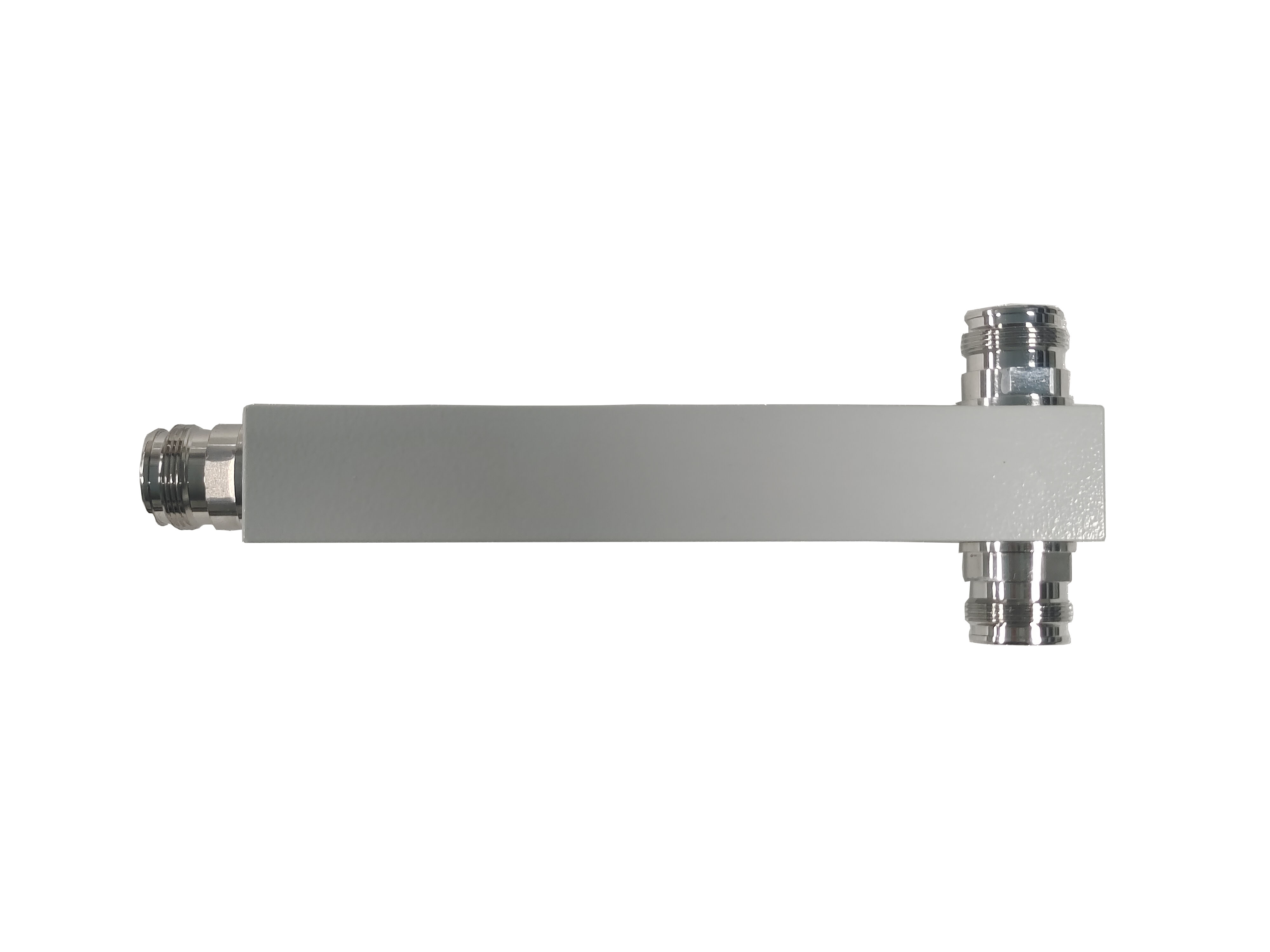

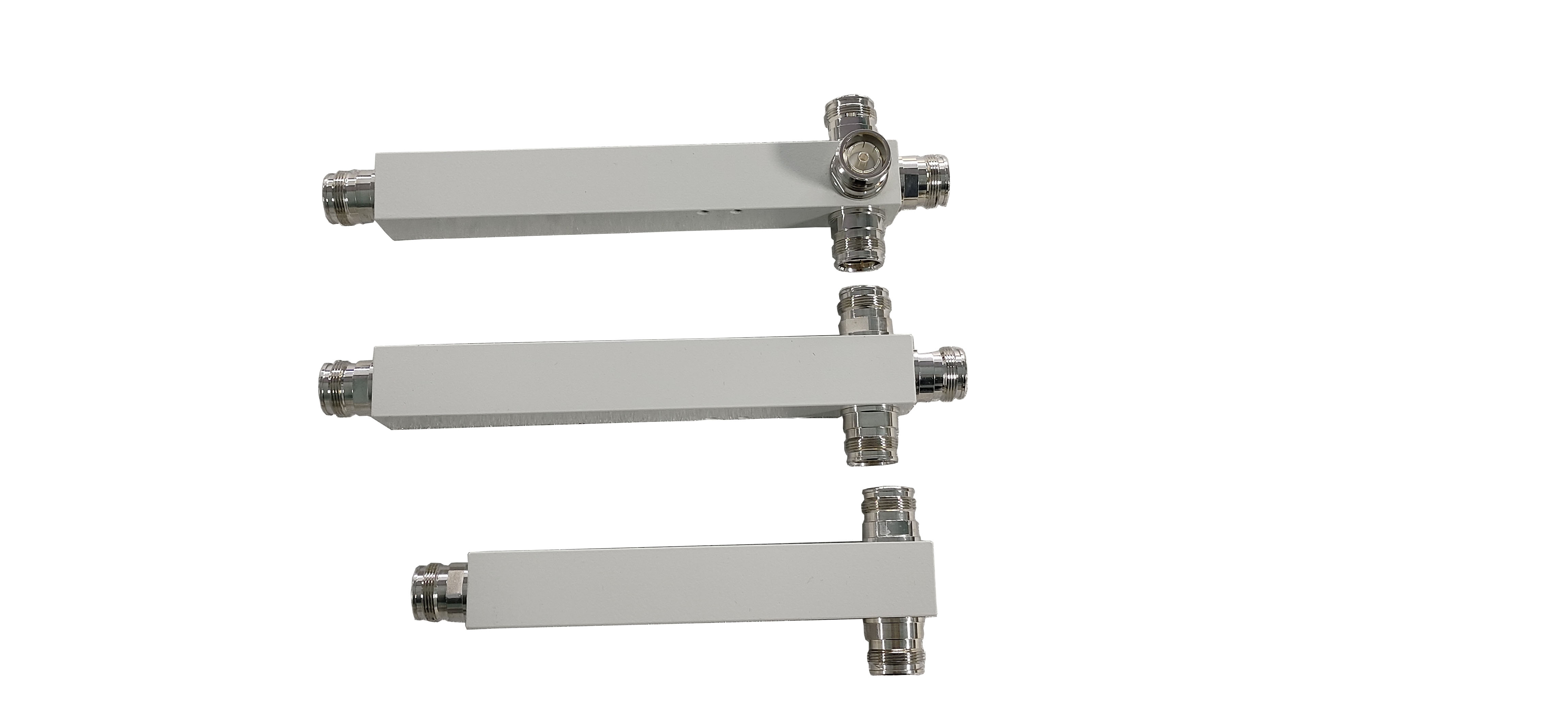

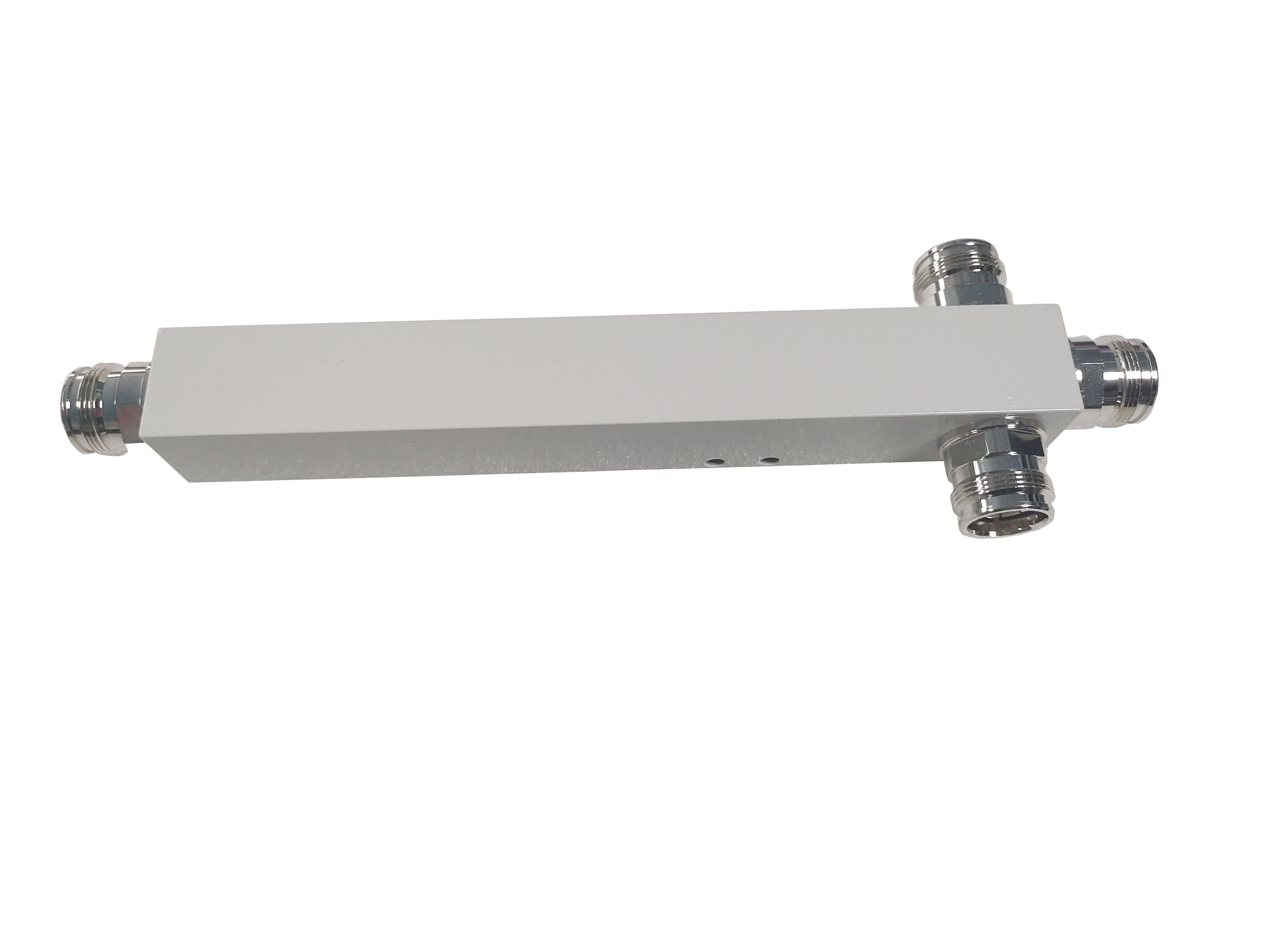

AMPLITEC Cavity power splitter sp0738-xd-b
* Wide Frequency Band
* Low Insertion Loss
* Low VSWR
* High Isolation
* Low PIM
|
Model: |
SP0738-2D-B |
SP0738-3D-B |
SP0738-4D-B |
|
Frequency Band (MHz) |
698 ~ 3800 |
698 ~ 3800 |
698 ~ 3800 |
|
Input Port |
1 |
1 |
1 |
|
Output Ports |
2 |
3 |
4 |
|
Split Loss(dB) |
≤ 3.0 |
≤ 4.8 |
≤ 6.0 |
|
Insertion Loss (dB) |
≤ 0.4 |
≤ 0.5 |
≤ 0.6 |
|
VSWR |
≤ 1.25 |
≤ 1.25 |
≤ 1.25 |
|
PIM (dBc) @2*43dBm |
≤ -160 |
≤ -160 |
≤ -160 |
|
Average Power(W) |
300 |
300 |
300 |
|
RF Connector |
3 x 4.3-10-Female |
4 x 4.3-10-Female |
5 x 4.3-10-Female |
|
Working Temperature (℃) |
-40 to +65 |
-40 to +65 |
-40 to +65 |
|
Relative Humidity |
≤95 |
≤95 |
≤95 |
|
Impedance (Ω) |
50 |
50 |
50 |
|
Environmental Conditions |
IP65 |
IP65 |
IP65 |
|
Color |
Gray or customized based on requirements |
||
|
Dimension(without connector)(mm) |
157x25x25 |
188x25x25 |
188x25x25 |
|
Weight(kg) |
≤ 0.25 |
≤ 0.35 |
≤ 0.45 |
