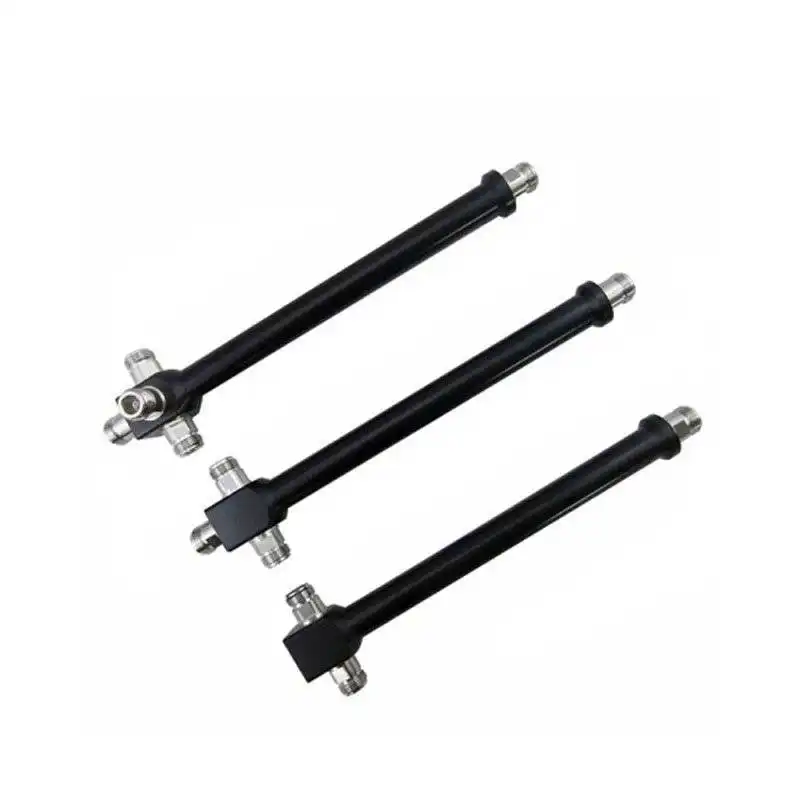

AMPLITEC Cavity Splitter (800-2500MHz) Low loss
* Wide Frequency Band
* Low Insertion Loss
* Low VSWR
* Low Intermodulation
* Widely used in IBS & DAS
* Guaranteed one year standard
|
Model Number |
SP200-2N-0825 |
SP200-3N-0825 |
SP200-4N-0825 |
|
Frequency Band (MHz) |
800-2500MHz |
||
|
Input Ports |
2-way |
3-way |
4-way |
|
Split Loss(dB) |
3.0 |
4.8 |
6.0 |
|
Insertion Loss(dB) |
≦0.3 |
≦0.4 |
≦0.4 |
|
VSWR |
≦1.25 (Type N); ≦1.30 (Type DIN) |
||
|
PIM (dBc) |
≦-150dBc@2*43dBm |
||
|
Average Power(W) |
200 (Type N); 700 (Type DIN) |
||
|
RF Connector |
N-female or 7/16 DIN-female |
||
|
Working Temperature(deg) |
-35~+65 |
||
|
Relative Humidity |
5%-95% |
||
|
Application |
Indoor or Outdoor, IP60 or IP65 |
||
|
Color |
Black-plated |
||
|
Weight(kg) |
0.22 |
0.27 |
0.32 |
* Wide Frequency Band
* Low Insertion Loss
* Low VSWR
* Low Intermodulation
* Widely used in IBS & DAS
* Guaranteed one year standard
