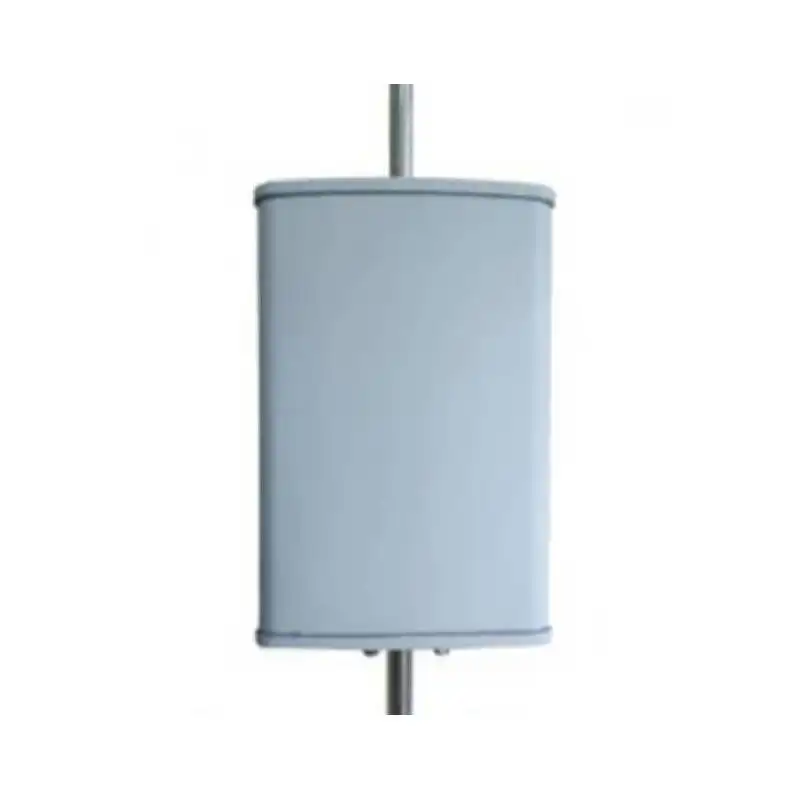

AMPLITEC 2 x 2 Directional Wall Mounted Antenna OP0740-0965-2N Low loss
|
ELECTRICAL SPECIFICATION |
|||
|
Model |
OP0740-0965-2P |
||
|
Frequency Range |
698-960 |
1710-2700 |
3400-4000 |
|
Gain /dBi |
7.5 |
8 |
8.5 |
|
Beamwidth |
H: 85±10 E: 70 |
H: 65±10 E: 60 |
H: 65±10 E: 50 |
|
Intermodulation IM3 |
≤ -107dBm (@2x33dBm) |
||
|
F/B ratio |
≥ 15 dB |
||
|
Isolation |
≥ 23 dB |
||
|
VSWR |
≤ 1.8（@698-800MHz） ≤ 1.5（@800-960/1710-2700/3400-4000MHz） |
||
|
Polarization |
± 45 |
||
|
Max power |
100 W |
||
|
Nominal Impedance |
50 Ω |
||
|
Lightning protection |
DC Ground |
||
|
MECHANICAL SPECIFICATION |
|
|
Connector |
2 x N female |
|
Antenna Dimension |
320 * 220 * 60 mm |
|
Rated Wind Velocity |
60 m/s |
|
Mounting |
Clamp Mounted |
