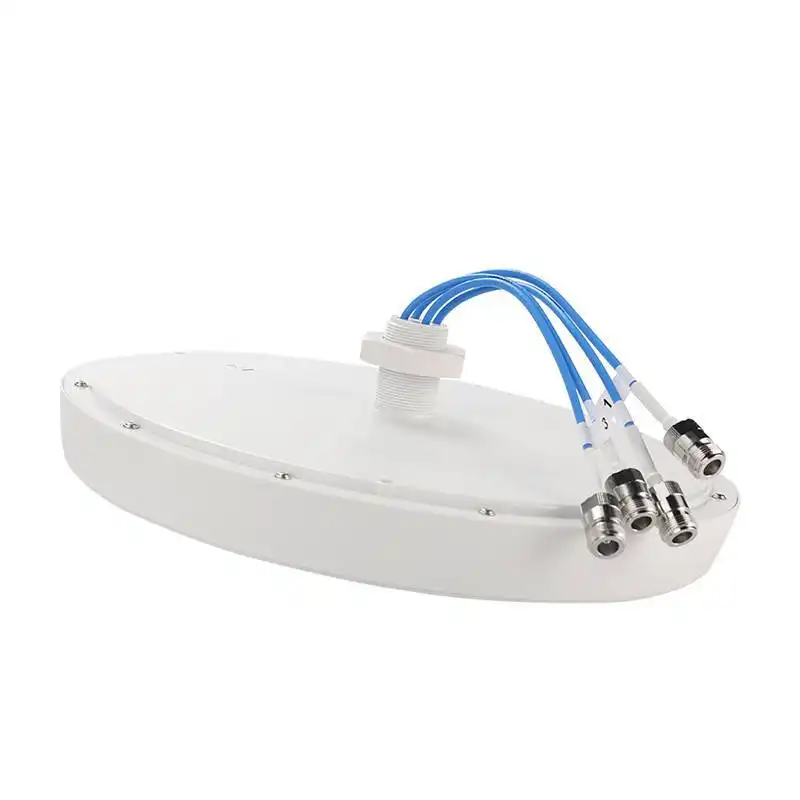

AMPLITEC 5G MIMO Omnidirectional Ceiling Antenna IO0660-06360-4N
* Amplitec 5G wide band ceiling antenna 617~6000mhz,gain 3/5 dBi used in 2G/3G/4G/5G system.
* Amplitec 4X4 Mimo omni directional 5g antenna,4*4.3-10 Femaleor 4*N-Female connectors.
617～960MHz typical pattern: 1710～2700MHz typical pattern: 3300～3800MHz typical pattern:
Product Pictures Product Size
Installation Sketch
1.Drill a round hole Φ36mm～Φ40mm on the ceiling.
2.Match the antenna to the round hole.
3.Fix the antenna onto the ceiling with the screws.
Remarks:
The hole on the ceiling must be slightly bigger than the antenna connector flange, and the antenna base plate should be in close contact with the ceiling, which influences the performance of the antenna.
Electrical specifications | ||||
Frequency range (MHz) | 617～960 | 1710～2700 | 3300～3800 | 4900～6000 |
Polarization | Linear * 4 | |||
Gain (dBi) | 4 | 5 | 6 | 6 |
Horizontal beam width (°) | 360 | |||
Vertical beam width (°) | 80 | 50 | 40 | 50 |
Non-circularity (dB) | / | |||
Isolation (dB) | ≥16 | ≥20 | ≥25 | |
Impedance (Ω | 50 | |||
VSWR | ≤2.0 | ≤1.8 | ||
Intermodulation IM3 (2×43dBm carrier) | ≤-150dBc | |||
Maximum power (W) | 50 | |||
Lighting protection | DC Ground | |||
Mechanical specifications | |
Connector | 4*4.3-10 Female or 4* N-Female |
Connector position | Bottom |
Exposed cable size | 30cm (or customer requirement) |
Height/width/depth | φ350*45 mm |
Packing size | 410 * 140 * 420 mm |
Weight | 1.3 kg |
Radome material | ABS |
Radome color | White |
Operating temperature | -40～60 ℃ |
Application | Indoor |
Mounting | Nut |
* Amplitec 5G wide band ceiling antenna 617~6000mhz,gain 3/5 dBi used in 2G/3G/4G/5G system.
* Amplitec 4X4 Mimo omni directional 5g antenna,4*4.3-10 Femaleor 4*N-Female connectors.
