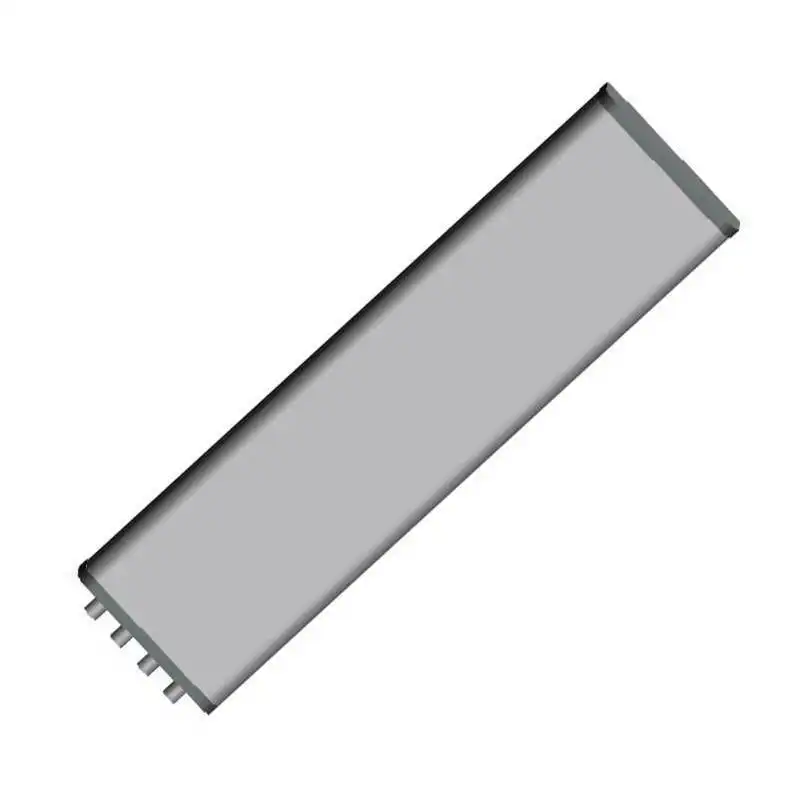

AMPLITEC Electrical Downtilt Antenna ODP1721-1865 Used in 3G/4G system MIMO Antenna
|
Electrical specifications |
|||
|
Frequency range (MHz) |
1710~1880 |
1850~1990 |
1920~2170 |
|
Polarization |
±45° |
||
|
Gain (dBi) |
17.2 |
17.5 |
17.2 |
|
Electrical Downtilt (°) |
0~10 |
||
|
Half-power beam width (°) |
Horizontal: 68 Vertical: 7.7 |
Horizontal: 65 Vertical: 7.4 |
Horizontal: 62 Vertical: 7.2 |
|
Sidelobe suppression for first sidelobe above main beam (dB) |
0°…5°…10° 15…15…15 |
||
|
Front-to-back ratio (dB) |
≥25 |
||
|
Cross-polar discrimination (dB) |
0° ≥ 15( ± 60° ≥10 ) |
||
|
Isolation (dB) |
≥28 |
||
|
Impedance (Ω) |
50 |
||
|
VSWR |
≤1.5 |
||
|
Intermodulation IM3 (2×43dBm carrier) |
≤-150dBc |
||
|
Maximum power (W) |
250 |
||
|
Lighting protection |
DC Ground |
||
|
Mechanical specifications |
|
|
Connector |
4×7/16 DIN Female |
|
Connector position |
Bottom |
|
Height/width/depth (mm) |
1250 × 320 × 110 |
|
Packing size (mm) |
1510 × 410 × 220 |
|
Weight (kg) |
13.5 |
|
Installation kit weight (kg) |
4.5 |
|
Radome material |
UPVC |
|
Radome color |
Gray |
|
Mechanical tilt (°) |
0~15 |
|
Operating temperature (℃) |
-40~60 |
|
Rated wind velocity (m/s) |
60 |
|
Suitable pole diameter (mm) |
50~115 |
|
Mounting kit |
JM-900DZA |
|
Electrical downtilt adjustment |
Integrated RCU (Replaceable, Included) |
|
RCU Model |
KRCU20D-2 |
1710~2170 MHz: ±45°Pol
