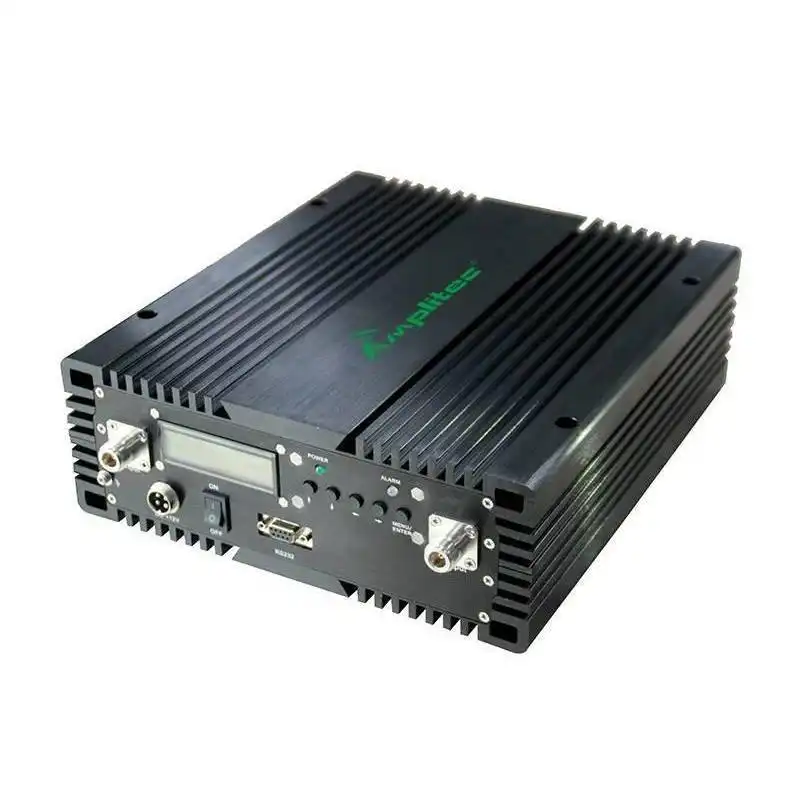

AMPLITEC 20~24 dBm Triple Band Selective Repeater with OMT Low loss

* Amplitec 20dBm 70dB high power easy to cover 600-1000 m2 and easy to install.

* Amplitec Digital ALC technology,auto limit the output power to ensure stable signal coverage.

* OLED display of system operating status such as frequency,gain,output power and isolation.

* Anti-interference,real time auto ISO detection and Self Oscillation Elimination keeping base station away from interference.

* Able to increase signal coverage,decrease mobile phone radiation, and increase mobile phone battery lifespan.

    oops...!

    no product data.

    Go to homepage

    In mobile communication, it is inevitable that macro-cell coverage cannot cover weak or dead zones; to use repeater is a good choice in these areas. Indoor repeaters mainly applied in covering small blind and weak zones.Indoor repeater is a good choice for VIP rooms, offices, houses, restaurants, apartments, parking lots, etc.

    Indoor repeater enhances consumer satisfaction greatly with its integrated design, compact size, easy engineering and rapid installation and debugging And this repeater is made with the characteristics of industrial aesthetic design, thus can be installed in high-class places as a decoration.

    IF SAW filter technology enables it to amplify only the targeted operator's signals and reject all the others’ effectively, it is, therefore, an optimal solution for coverage extension.



    Standard Package

    1) DC12V/10A power supply 1PCS

    2) AC power cord (EU standard/ US standard/UK standard/ SA standard/China standard, etc) 1PCS

    3) Installation kit 1PCS

    4) User Manual 1PCS

    Items

    Uplink

    Downlink

    Frequency Range

    890 ~ 915 MHz/

    1710 ~ 1785 MHz

    935 ~ 960 MHz/

    1805 ~ 1880 MHz

    1920 ~ 1980 MHz

    2110 ~ 2170 MHz

    890 ~ 915 MHz (2 bands)

    935 ~ 960 MHz (2 bands)

    1710 ~ 1785 MHz/

    1920 ~ 1980 MHz

    1805 ~ 1880 MHz/

    2110 ~ 2170 MHz

    Max.Gain

    60 ~ 70 dB

    60  ~ 70 dB

    Bandwidth

    available upon request

    Manual Gain Control

    31dB in step of 1dB

    Automatic Gain Control

    > 20dB

    Ripple in Band

    ≤3dB(Typical)

    Out of Band Gain

    ± 400 KHz ≦ 50 dB

    ± 600 KHz ≦40 dB

    ± 1 MHz ≦ 35 dB

    ± 5 MHz ≦ 25 dB

    Max. Input Power Without Damage

    0 dBm


    Output Power

    15 ~ 17 dBm

    20 ~ 24 dBm

    Intermodulation Products

    ≦ -36 dBm

    ≦ -36 dBm

    ≦ -30 dBm

    ≦ -30 dBm

    Spurious Emission

    ≦ -36 dBm

    ≦ -36 dBm

    ≦ -30 dBm

    ≦ -30 dBm

    Spurious Emission Mask( WCDMA )

    Complies with 3GPP TS 25.106

    Modulation Accuracy( WCDMA )

    Complies with 3GPP TS 25.106

    Peak Code Domain Error( WCDMA )

    Complies with 3GPP TS 25.106

    ACRR( WCDMA )

    ≥ 30dB @ ±5MHz & ±10MHz

    Frequency Stability

    ≤0.01 ppm

    Noise Figure @ max. gain

    ≦8 dB(Typical)

    Return loss

    ≦-10 dB

    Time Delay

    ≦4.5 μs

    MTBF

    > 50000 hours

    Power Supply

    AC: 90~265V, 50/ 60HzDC: 9V 10A

    Power Consumption

    < 65W

    Impedance

    50 ohm

    Input Signal Level

    At the edge of green and orange ( -50dBm or more)

    Green

    >1-5dB range: Orange;>20dB: Red


    * Amplitec 20dBm 70dB high power easy to cover 600-1000 m2 and easy to install.

    * Amplitec Digital ALC technology,auto limit the output power to ensure stable signal coverage.

    * OLED display of system operating status such as frequency,gain,output power and isolation.

    * Anti-interference,real time auto ISO detection and Self Oscillation Elimination keeping base station away from interference.

    * Able to increase signal coverage,decrease mobile phone radiation, and increase mobile phone battery lifespan.
