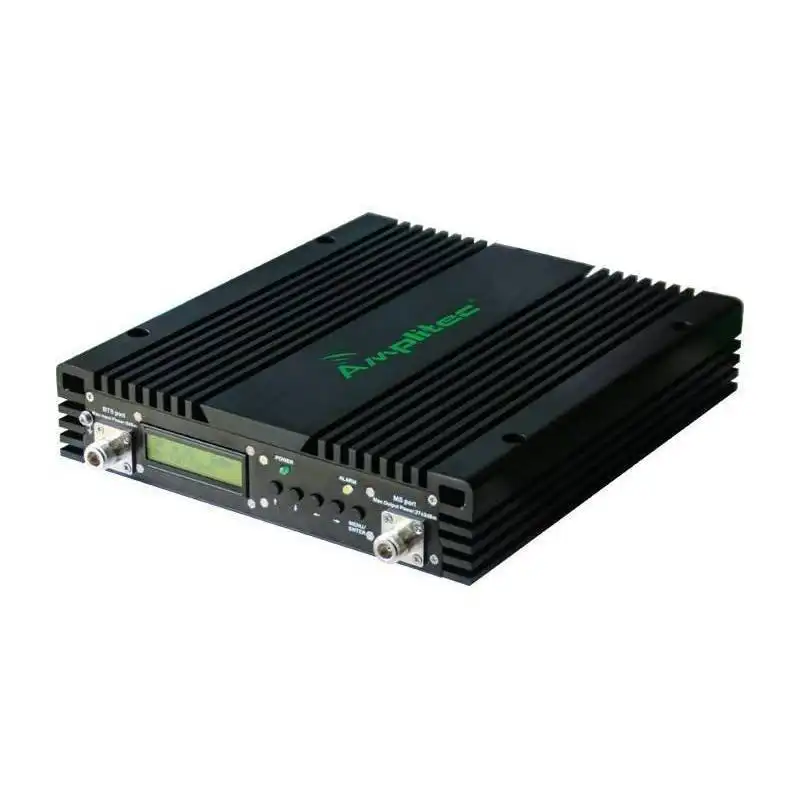

AMPLITEC 27dBm Single Band Multi Selective Repeater with OMT Low loss
* Amplitec 27dBm 75dB high power indoor coverage area upto 1000-3000㎡,outdoor upto 0.5-1km and easy to install.
* Amplitec Digital ALC technology,auto limit the output power to ensure stable signal coverage.
* OLED display of system operating status such as frequency,gain,output power and isolation.
* Anti-interference,real time auto ISO detection and Self Oscillation Elimination keeping base station away from interference.
* Able to increase signal coverage,decrease mobile phone radiation, and increase mobile phone battery lifespan.
In mobile communication, it is inevitable that macro-cell coverage cannot cover weak or dead zones; to use repeater is a good choice in these areas. Indoor repeaters mainly applied in covering small blind and weak zones.
Indoor repeater W27T Series is a good choice for VIP rooms, offices, houses, restaurants, apartments, parking lots, etc.
Indoor repeater W27T Series enhances consumer satisfaction greatly with its integrated design, compact size, easy engineering and rapid installation and debugging,
And this repeater is made with the characteristics of industrial aesthetic design, thus can be installed in high-class places as a decoration.
SAW filter technology enables it to amplify only the targeted operator’s signals and reject all the others’ effectively, it is, therefore, an optimal solution for coverage extension.
Standard Package
1) DC12V/5A power supply 1PCS
2) AC power cord (EU standard /US standard/UK standard/SA standard/China standard, etc ) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
| Items | Uplink | Downlink |
| Frequency Range | 824 ~ 849 MHz | 869 ~ 894 MHz |
| 890 ~ 915 MHz | 935 ~ 960 MHz | |
| 1710 ~ 1785 MHz | 1805 ~ 1880 MHz | |
| 1850 ~ 1910 MHz | 1930 ~ 1990 MHz | |
| 1920 ~ 1980 MHz | 2110 ~ 2170 MHz | |
| Max. Gain | 75 dB | 80 dB |
| Bandwidth | available upon request (1-3 selectable bands) | |
| Manual Gain Control | 31dB in step of 1dB | |
| Automatic Gain Control | >20dB | |
| Ripple in Band | ≤3dB(Typical) | |
| Out of Band Gain | ± 400 KHz ≦ 50 dB | |
| ± 600 KHz ≦40 dB | ||
| ± 1 MHz ≦ 35 dB | ||
| ± 5 MHz ≦ 25 dB | ||
| Max. Input Power Without Damage | 0 dBm | |
| Output Power | ≥20 dBm | ≥27 dBm |
| Intermodulation Products | ≦ -36 dBm | ≦ -36 dBm |
| ≦ -30 dBm | ≦ -30 dBm | |
| Spurious Emission | ≦ -36 dBm | ≦ -36 dBm |
| ≦ -30 dBm | ≦ -30 dBm | |
| Spurious Emission Mask( WCDMA ) | Complies with 3GPP TS 25.106 | |
| Modulation Accuracy( WCDMA ) | Complies with 3GPP TS 25.106 | |
| Peak Code Domain Error( WCDMA ) | Complies with 3GPP TS 25.106 | |
| ACRR( WCDMA ) | ≥ 30dB @ ±5MHz & ±10MHz | |
| Frequency Stability | ≤0.01 ppm | |
| Noise Figure @ max. gain | ≦6 dB(Typical) | |
| Return loss | ≦-10 dB | |
| Time Delay | ≦4.5 μs | |
| MTBF | > 50000 hours | |
| Power Supply | AC: 90~265V, 50/ 60Hz; DC: 9V 5A | |
| Power Consumption | < 55W | |
| Impedance | 50 ohm | |
LED indication | DC ON/OFF | |
Normal :Green ; Any Alarm Happen: Red | ||
| Remote/Local Control | Local:Via RS232 Remote:Via wireless Modem | |
* Amplitec 27dBm 75dB high power indoor coverage area upto 1000-3000㎡,outdoor upto 0.5-1km and easy to install.
* Amplitec Digital ALC technology,auto limit the output power to ensure stable signal coverage.
* OLED display of system operating status such as frequency,gain,output power and isolation.
* Anti-interference,real time auto ISO detection and Self Oscillation Elimination keeping base station away from interference.
* Able to increase signal coverage,decrease mobile phone radiation, and increase mobile phone battery lifespan.
