Specialize in Signal Repeater & Jammer R&D and manufacturing since 2006

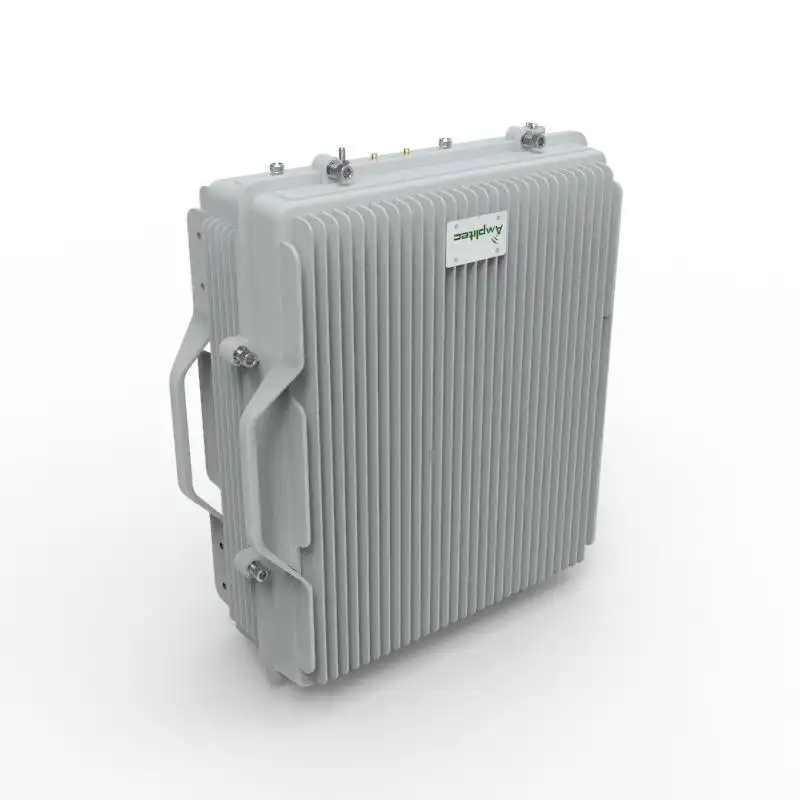

AMPLITEC 33dBm Digital Band Selective Outdoor Signal Rpeater For Rural Area Low loss 1
AMPLITEC 33dBm Digital Band Selective Outdoor Signal Rpeater For Rural Area Low loss 2
AMPLITEC 33dBm Digital Band Selective Outdoor Signal Rpeater For Rural Area Low loss 1
AMPLITEC 33dBm Digital Band Selective Outdoor Signal Rpeater For Rural Area Low loss 2

AMPLITEC 33dBm Digital Band Selective Outdoor Signal Rpeater For Rural Area Low loss



* 99% pass customs clearance,Amplitec have many certificates,such as CE,RoHS,FCC,etc...

* 100% solve mobile cell phone weak signal problem. Easy to cover over 3000-6000 m2 and easy to install.

* Sub-band frequency and bandwidth can be set by local monitoring panel, which is easier and more convenient

* Digital filter technology makes out-of-band rejection more effective

* OLED screen can clearly display working frequency, gain, output power and easily check    working status of the device

* Manual gain control function, to attenuate gain with 1dB step among range of  31dB

* ALC, with wide range of 31dB, auto limit the output power to ensure stable performance.

* Device auto detect isolation after start-up, to avoid self-oscillation.

* Can be controlled and monitored, via USB connects PC for local control, via 3G or4G modem connects PC for remote control.

    oops...!

    no product data.

    Go to homepage

    *Amplitec handle many engineering cases around the world,we have rich experience in mobile phone signal coverage project.

    *Amplitec Own Chinese the largest signal booster manufacturing factory, so our quality control and production capacity leading the world.

    *Most of Amplitec's signal booster have certificates,such as CE, RoHS, FCC, etc...

    *Amplitec have rich exhibition experience, our signal boosters are recognized in many regions around the world.

    -Do You Know Digital Band Selective Repeater?

    -Digital Band Selective Repeater adopts digital filtering technology, uses A/D circuit to convert radio frequency signal into digital signal, and then uses programmable FPGA chip to run algorithm software to edit digital signal. One frequency band signal can be edited into multiple subbands, and then digital The signal is converted into a radio frequency signal, and each subband processed by digital filtering has good out-of-band suppression performance and will not interfere with each other. Therefore, installing a Digital Band Selective Repeater can simultaneously support the networks of multiple operators in the same frequency band.

    -In addition, the equipment maintenance engineer can operate the monitoring software to turn on or turn off any subband of the Digital Band Selective Repeater, and can also flexibly set  bandwidth and frequency of any sub-band , and choose to support the network of a certain operator or multiple operators.

    -Recommended repeater antennas accessories full sets including:

       AMPLITEC 33dBm Digital Band Selective Outdoor Signal Rpeater For Rural Area Low loss 3



    Model

    S33T-Bx

    S33T-BxBx

    S33T-BxBxBx

    Frequency Band





    Any one in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ S33T-Bx

    Any two in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ S33T-BxBx

    Any three in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ S33T-BxBxBx

    Sub-bands

    1~3 for each band

    Bandwidth

    0.2 ~ 20 MHz can by set for each sub-band

    Gain

    UL 80dB , DL 85dB

    Output Power

    UL 23dBm, DL 33dBm

    Gain Attenuate

    1~31dB, Step of 1dB

    ALC Control Range

    ≥30dB

    VSWR

    ≤2.0

    Spurious Emission

    ≤-36dBm @ 9KHz~1GHz

    ≤-30dBm @ 1GHz~12.75GHz

    ACRR

    Fully comply with 3GPP

    EVM

    Fully comply with 3GPP

    PCDE

    Fully comply with 3GPP

    Out of band Gain

    Fully comply with 3GPP

    Noise Figure

    ≤6dB @ S33T-Bx

    ≤8dB @ S33T-BxBx,  @ S33T-BxBxBx

    Group Delay

    ≤13μs

    Power Supply

    DC 27V 5A @ S33T-Bx

    AC 100~264V / 50Hz @ S33T-BxBx, @ S33T-BxBxBx

    Dimension

    330x268x58mm @ S33T-Bx

    370x332x137mm @ S33T-BxBx

    490x410x210mm @ S33T-BxBxBx

    Weight





    <4.5kg @ S33T-Bx

    <15kg @ S33T-BxBx

    <28kg @ S33T-BxBxBx

    NoteThe letter "x" means the 3gpp 4G band number: 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66


    AMPLITEC 33dBm Digital Band Selective Outdoor Signal Rpeater For Rural Area Low loss 4

    AMPLITEC 33dBm Digital Band Selective Outdoor Signal Rpeater For Rural Area Low loss 5

    AMPLITEC 33dBm Digital Band Selective Outdoor Signal Rpeater For Rural Area Low loss 6


    * 99% pass customs clearance,Amplitec have many certificates,such as CE,RoHS,FCC,etc...

    * 100% solve mobile cell phone weak signal problem. Easy to cover over 3000-6000 m2 and easy to install.

    * Sub-band frequency and bandwidth can be set by local monitoring panel, which is easier and more convenient

    * Digital filter technology makes out-of-band rejection more effective

    * OLED screen can clearly display working frequency, gain, output power and easily check    working status of the device

    * Manual gain control function, to attenuate gain with 1dB step among range of  31dB

    * ALC, with wide range of 31dB, auto limit the output power to ensure stable performance.

    * Device auto detect isolation after start-up, to avoid self-oscillation.

    * Can be controlled and monitored, via USB connects PC for local control, via 3G or4G modem connects PC for remote control.

    33dBm Digital Band Selective Outdoor Signal Rpeater For Rural Area
