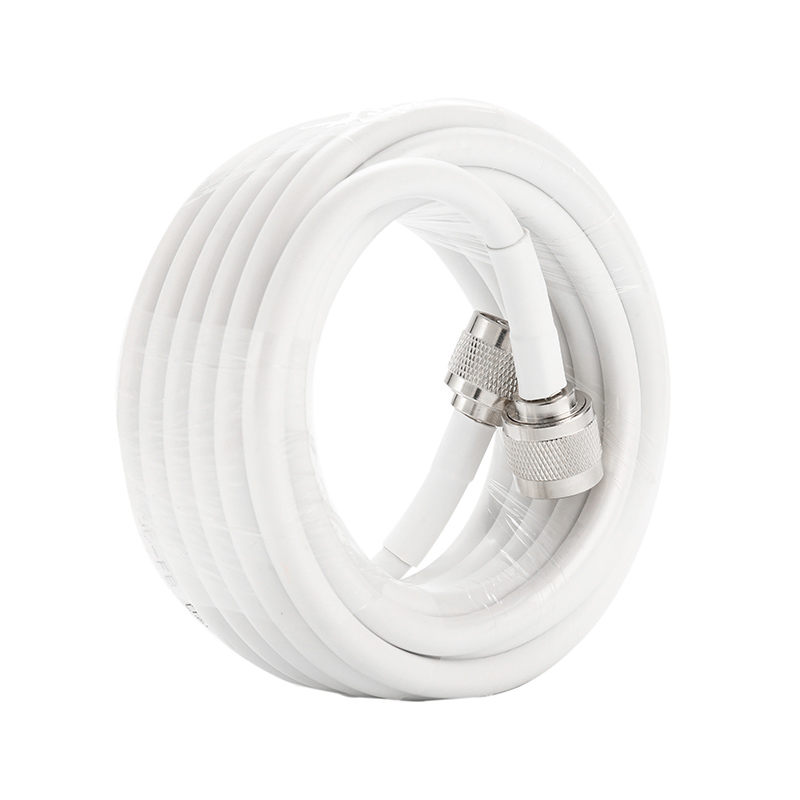

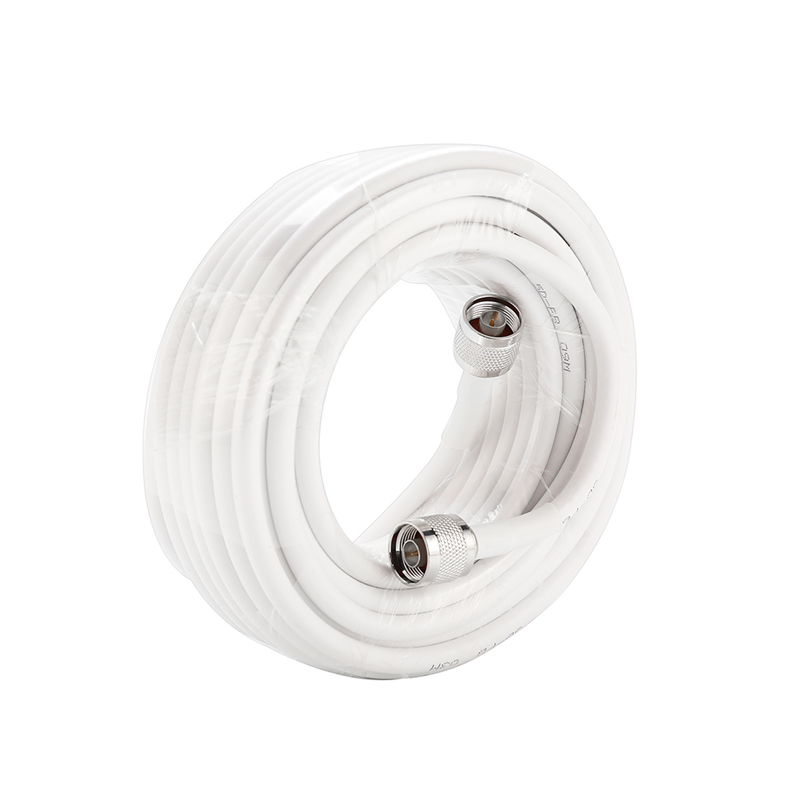

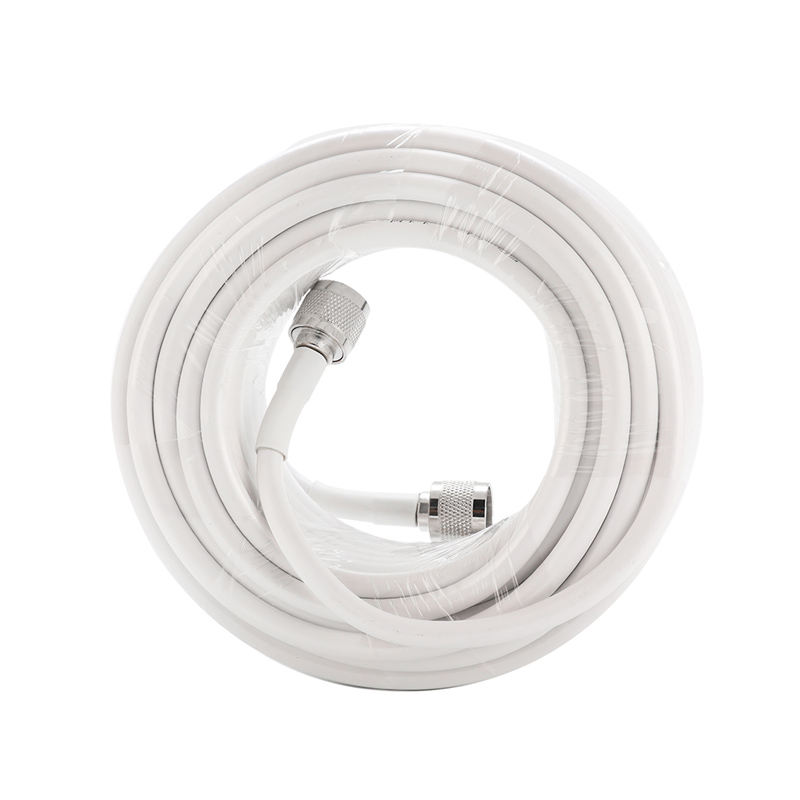

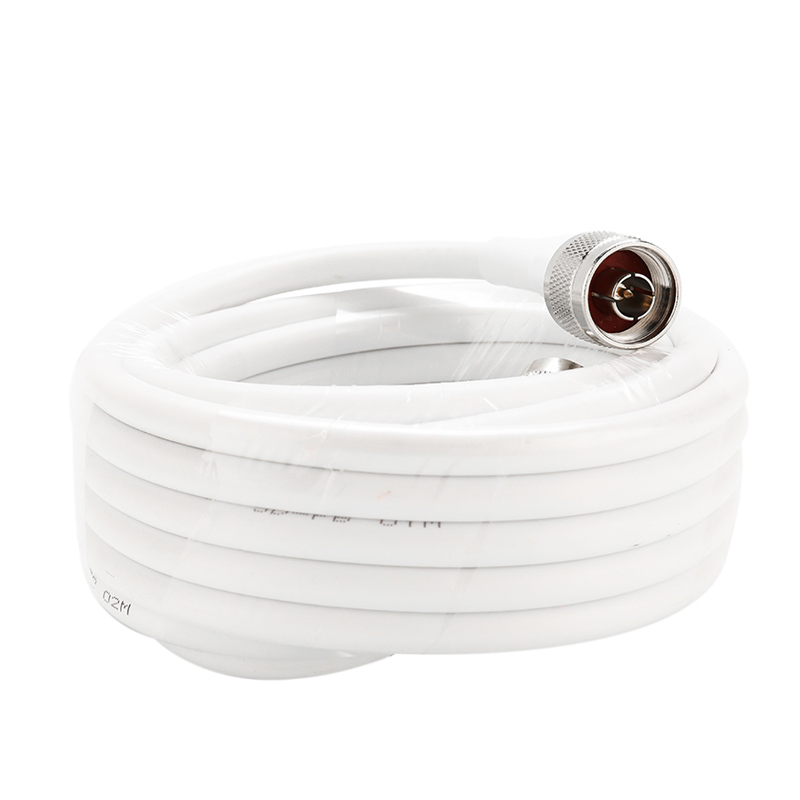

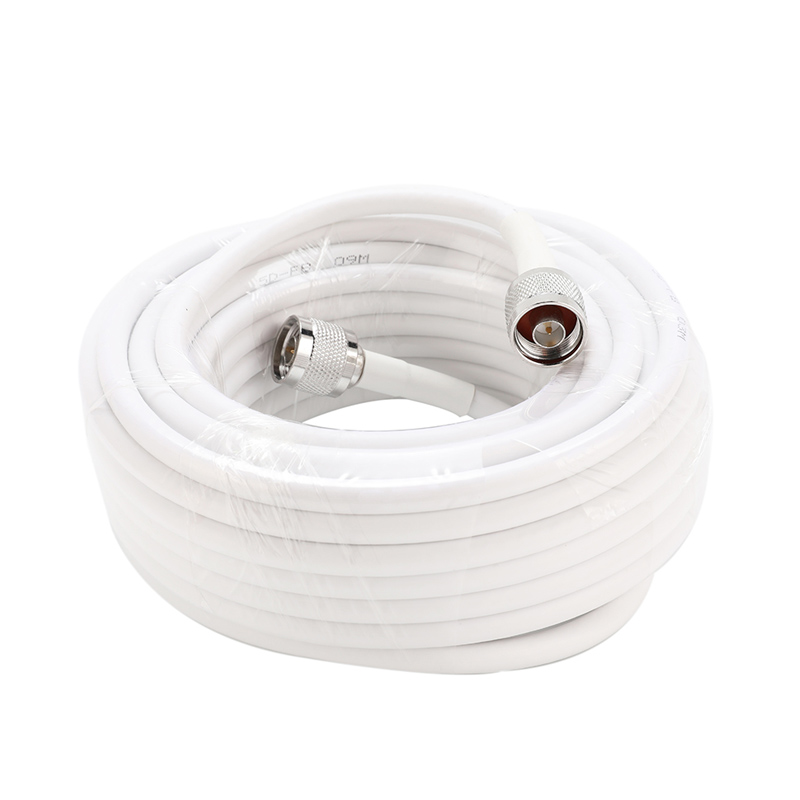

3D 5D 7D 1/4 1/2 7/8 LMR400 LRM240 Low Loss 50ohm RF Coaxial Cable Cord

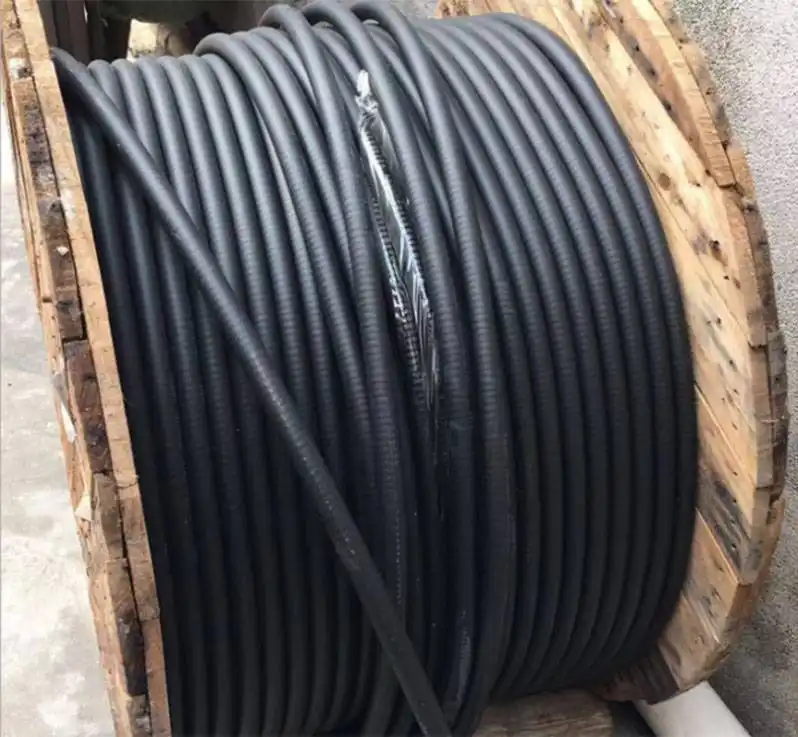

* 1/2 super flexible low loss 50ohm coaxial cable, suitabe to outdoor and indoor. This flexible coaxial cable 1/2 cable outter jacket layer material is fire-retardant PE, outer conductor material is helical corrugated copper tube, insulation layer material is foamed PE, and inner conductor layer material is CCA. It's a best quality coaxial cable for inbuilding signal coverage enhancement project, DAS project.
* 3D 5D 7D 1/4 1/2 7/8 LMR400 LRM240 type can be chosen.
* Low Loss 50ohm RF Coaxial Cable.
* Products meet the Rohs requirements, and according to the requirements of RoHS, you can see the Rohs mark on the outside package.
7D-FB Coaxial Cable Technical Specification | |||
Items | Material | Diameter | Remarks |
Inner Conductor | CCA | 2.60mm | Per customer’s requirements: |
Dielectric | Foam PE | 7.30mm | |
First Shield | Bonded Aluminum Foil | 7.40mm | |
Second Shield | AL-Mg Wire Braid | 8.00mm | |
Jacket | PVC/PE | 9.80mm | |
7D-FB Coaxial Cable Electrical Specification | |
Impedance | 50Ω |
Capacitance | 82±2pF/m |
Velocity of Propagation | 82.0% |
Dielectric strength | 1.6kV |
V.S.W.R | ≤1.3 |
Return Loss | ≥20 |
Screening Effectiveness | ≥90dB |
Min. Bending Radius | 45.0mm |
Operating Temperature | -25 to +70℃ |
1/2 Coaxial Cable Construction | ||
Inner conductor | Material | CCA |
Diameter | 4.80 mm | |
Outer conductor | Material | Annular corrugated copper tube |
Diameter | 13.8 mm | |
Insulation | Material | Foamed PE |
Diameter | 12.3 mm | |
Jacket | Material | LLDPE |
Min. thickness | ＞ 0.9 mm | |
Diameter | 15.7 mm | |
1/2 Coaxial Cable Electrical specifications | |
Characteristic impedance | 50 Ω |
Capacitance | 76 p F/m |
Velocity | 88 % |
Dielectric strength | 6.0 KV |
Insulation resistance | ＞1×104 MΩ/km |
Peak power rating | 40 KV |
Peak voltage | 1800 V |
Cut-off Frequency | 10.0 GHz |
* 1/2 super flexible low loss 50ohm coaxial cable, suitabe to outdoor and indoor. This flexible coaxial cable 1/2 cable outter jacket layer material is fire-retardant PE, outer conductor material is helical corrugated copper tube, insulation layer material is foamed PE, and inner conductor layer material is CCA. It's a best quality coaxial cable for inbuilding signal coverage enhancement project, DAS project.
* 3D 5D 7D 1/4 1/2 7/8 LMR400 LRM240 type can be chosen.
* Low Loss 50ohm RF Coaxial Cable.
