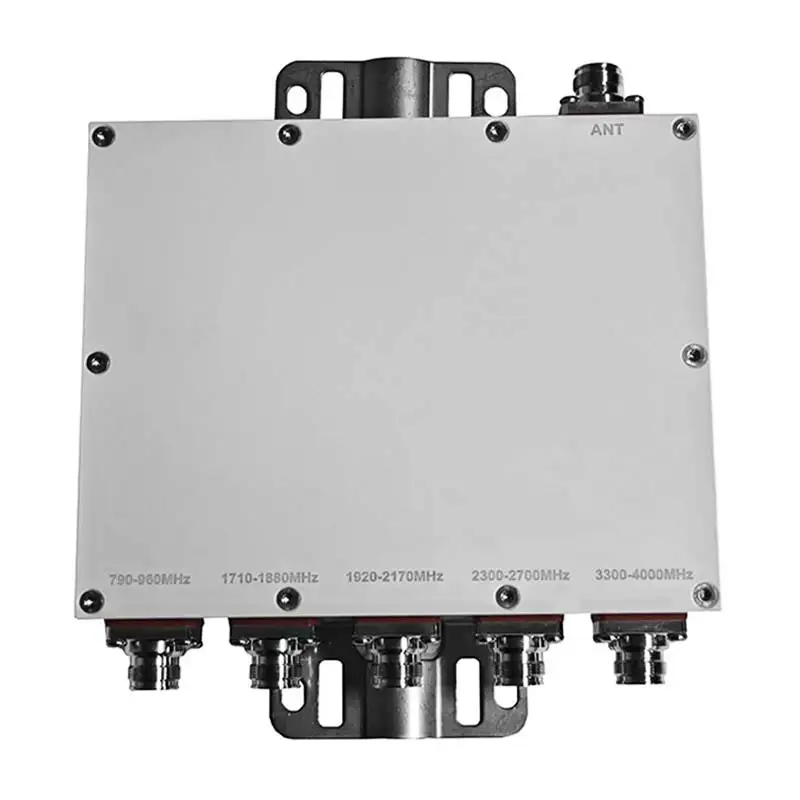

AMPLITEC CM0840-5D-B Combiner for 900、1800 & 2100 and 2300 & 2700 MHz Low loss
* Low VSWR & Insertion Loss
* High Out of Band Rejection
|
Model |
CM0840-5D-B |
||||
|
Technical Specifications |
|||||
|
Port |
Port1 |
Port2 |
Port3 |
Port4 |
Port5 |
|
Frequency Rang(MHz) |
790 - 960 |
1710 - 1880 |
1920 - 2200 |
2300 - 2700 |
3300 - 4000 |
|
VSWR |
≤1.3 |
||||
|
Insertion Loss |
≤0.5 |
||||
|
Out of Band Rejection |
≥50dB |
≥50dB |
≥50dB |
≥50dB |
≥50dB |
|
PIM |
≤-160dBc (43dBm×2) |
||||
|
Power Rating |
Continuous: ≥200W Peak: ≥500W |
||||
|
RF connector |
4.3-10 Female |
||||
|
Operating Temperature |
-25℃～+65℃ |
||||
|
Humidity |
≤95％ |
||||
|
Environment Condition |
Indoor or outdoor (IP65) |
||||
|
Dimension(without connector)(mm) |
233x187x49 |
||||
|
Weight(kg) |
≤ 5 |
||||
* Low VSWR & Insertion Loss
* High Out of Band Rejection
