Specialize in Signal Repeater & Jammer R&D and manufacturing since 2006

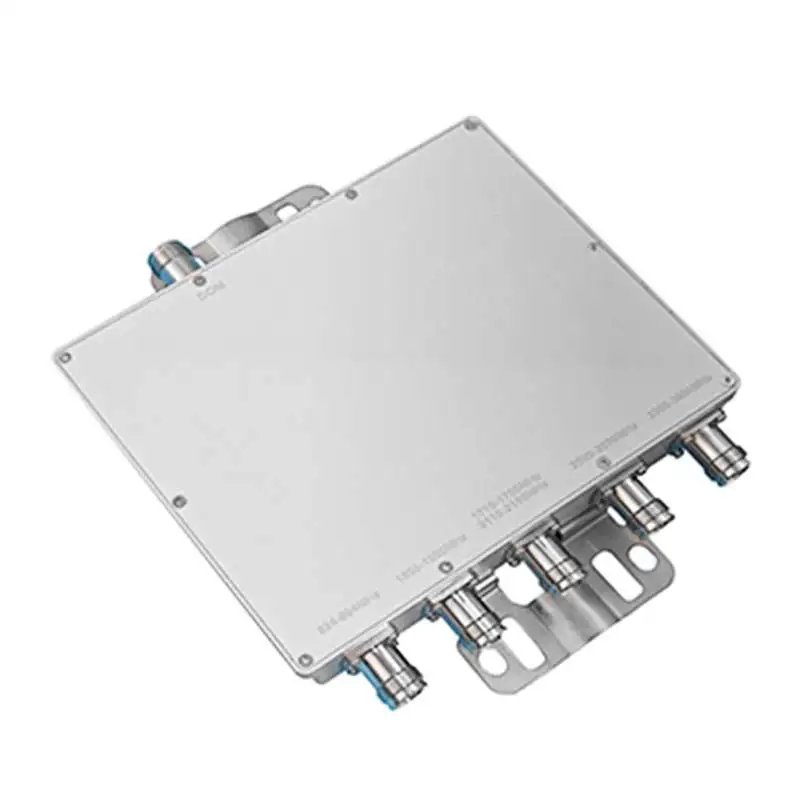

AMPLITEC CM0838-5D-B Combiner for 900/1700 & 1900 and 2500 & 3800 MHz Low loss 1
AMPLITEC CM0838-5D-B Combiner for 900/1700 & 1900 and 2500 & 3800 MHz Low loss 2
AMPLITEC CM0838-5D-B Combiner for 900/1700 & 1900 and 2500 & 3800 MHz Low loss 1
AMPLITEC CM0838-5D-B Combiner for 900/1700 & 1900 and 2500 & 3800 MHz Low loss 2

AMPLITEC CM0838-5D-B Combiner for 900/1700 & 1900 and 2500 & 3800 MHz Low loss

* Low VSWR & Insertion Loss

* High Out of Band Rejection

    oops...!

    no product data.

    Go to homepage

    AMPLITEC CM0838-5D-B Combiner for 900/1700 & 1900 and 2500 & 3800 MHz Low loss 3


    Model

    CM00838-5D-B

    Technical Specifications

    Port

    Port1

    Port2

    Port3

    Port4

    Port5

    Frequency Rang(MHz)

    824 - 894

    1850 - 1990

    1710 - 1755/ 2110 - 2155

    2500 - 2700

    3300 - 3800

    VSWR

    ≤1.3

    Insertion Loss

    ≤0.5

    Out of Band Rejection

    ≥60dB

    ≥60dB

    ≥60dB

    ≥60dB

    ≥60dB

    PIM

    ≤-150dBc (43dBm×2)

    Power Rating

    Continuous: ≥200W  Peak: ≥500W

    RF connector

    4.3-10 Female

    Operating Temperature

    -25℃~+65℃

    Humidity

    ≤95%

    Environment Condition

    Indoor or outdoor (IP65)

    Dimension(without connector)(mm)

    236x184x45

    Weight(kg)

    ≤ 5

    * Low VSWR & Insertion Loss

    * High Out of Band Rejection
