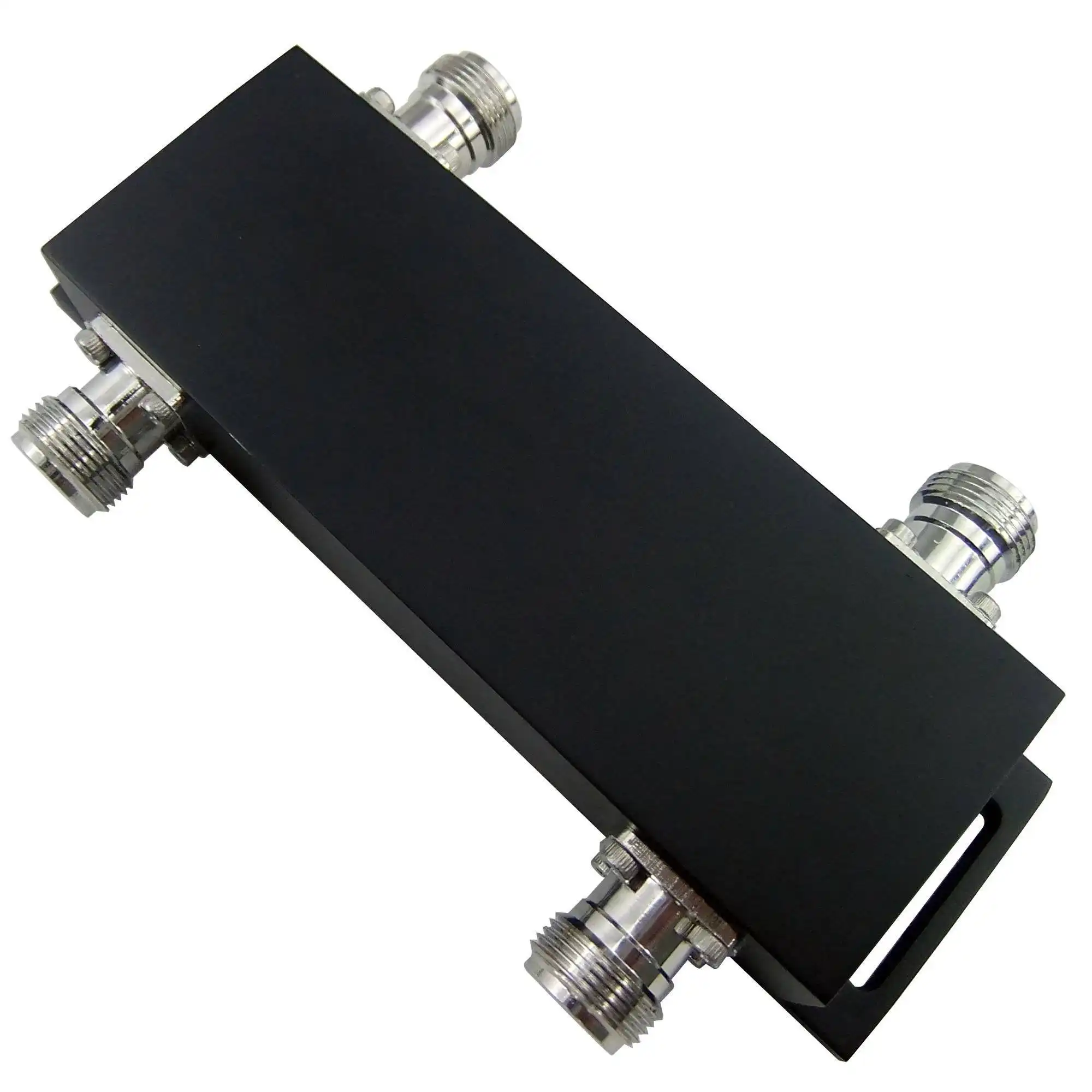

AMPLITEC 3dB Hybrid Coupler (800-2700MHz) Low loss
* Wide Frequency Band 800-2700MHz
* Low Insertion Loss
* Low VSWR
* Low Intermodulation
* Widely used in IBS & DAS
* Guaranteed one year standard
3dB Bridge ,also known as same frequency combiner, it could along one specific way of the transmission line to determine a continuous sampling,and also could divide one input signal into two equal and with same 90℃ phase difference signal. It is mainly use for the combination of the multi-signal,improve the usage rate of output signal and widely use for the combination of the indoor coverage system and the BTS signal.
|
Model No. |
HCP200-3dB-4N-0827 |
HCP500-3dB-4D-0827 |
HCP150-3dB-3N-0827 |
|
Frequency (MHz) |
800-2700 |
||
|
Insertion Loss |
≦0.6 |
≦0.6 |
≦0.6 |
|
Coupling |
3.0 |
3.0 |
3.0 |
|
Isolation(dB) |
≧23 |
≧23 |
≧23 |
|
VSWR |
≦1.25 (Type N) |
≦1.30 (Type DIN) |
≦1.25 |
|
PIM |
≦-140dBc@2*43dBm |
≦-120dBc@2*43dBm |
|
|
Power |
200W (Type N) |
500W (Type DIN) |
150W (Type N) |
|
Impedance |
50 ohm |
||
|
RF Connector |
N-female |
7/16 DIN-female |
N-female |
|
Color |
Black-plated |
||
|
Application |
Indoor or Outdoor, IP60 or IP65 |
||
|
Temperature |
-20~+70 |
||
|
Humidity |
5%-95% |
||
|
Weight(kg) |
0.50 (Type N) |
0.90 (Type DIN) |
0.45 |
