* Wide Frequency Band 698-2700MHz

* Low Insertion Loss

* Low VSWR

* Low Intermodulation

* Widely used in IBS & DAS

* Guaranteed one year standard


    oops...!

    no product data.

    Go to homepage

    A hybrid coupler is a four-port device that distributes power fed from either port equally to the other two ports without delivering power to the fourth port. When a larger output is required than can be achieved by a single device or a pair of devices, a "hybrid coupler" circuit can be used to combine two or more power amplifiers. It is unsatisfactory to use several devices directly in parallel because the current is not equally distributed among the devices.

    Hybrid couplers, however, don't solve all the problems that power amplifiers may encounter. For example, if the load is shorted or open, this effect is reflected to the collector of each amplifier. The reactance and variation of the load will also be transformed to the power amplifier.


    4_4 Hybrid Coupler (698-2700MHz) 5                                             4_4 Hybrid Coupler (698-2700MHz) 6

    Model No.

    HCP200-6dB-44N-0627

    HCP200-6dB-44D-0627

    Frequency (MHz)

    698-2700

    Insertion Loss

    ≦1.2

    ≦1.2

    Coupling

    6.0

    6.0

    Isolation(dB)

    ≧20

    ≧20

    VSWR

    ≦1.25 (Type N)

    ≦1.30 (Type DIN)

    PIM

    ≦-140dBc@2*43dBm

    Power

    200W (Type N)

    200W (Type DIN)

    Impedance

    50 ohm

    RF Connector

    N-female

    7/16 DIN-female

    Color

    Black-plated

    Temperature

    -20~+70

    Humidity

    5%-95%

    Weight(kg)

    1.30 (Type N)

    2.80 (Type DIN)


    Hybrid Coupler

    4*4 Hybrid Coupler

    698-2700mhz Hybrid Coupler


    * Wide Frequency Band 698-2700MHz

    * Low Insertion Loss

    * Low VSWR

    * Low Intermodulation

    * Widely used in IBS & DAS

    * Guaranteed one year standard

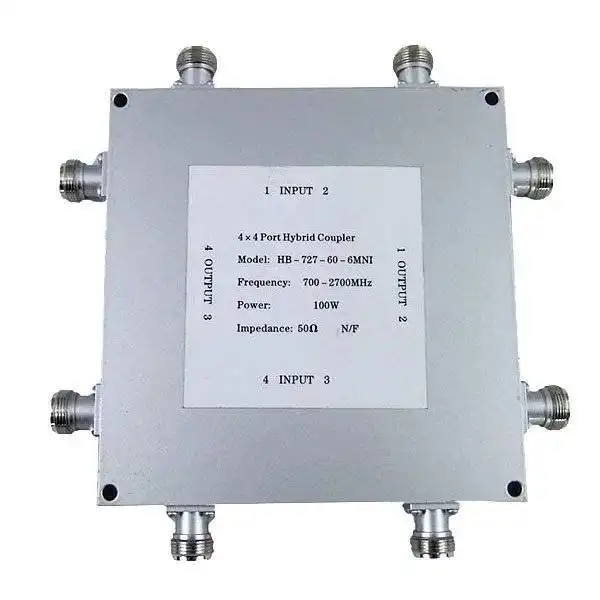

    4_4 Hybrid Coupler (698-2700MHz)
