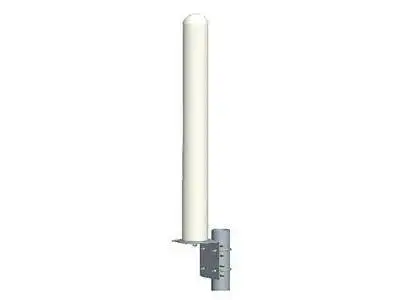

AMPLITEC 4.5dBi Outdoor Cell Phone External Signal Receiver Fiberglass 360° Omni Antenna Low loss
* High gain and low VSWR.
* With high quality of radome material, elegant appearance, UV protection.
* With bottom springs protection.
* Suitable for outdoor coverage.
* Fiberglass radome good performance in anti-vibration and resistant to aging.
* All weather operation,stable steel installation kit.
* Frequency range 698~2700MHz,gain 5/10.5 dBi.
This antenna features low VSWR, high gain, anti-erosion and anti-wind and water-proof etc.
Usually installed outdoors to cover an area close to it with 360° homogenous radiation.
|
MODEL |
OO8025-05360 |
|
Frequency |
824-960MHz / 1710-2500MHz |
|
Gain |
4.5dBi |
|
VSWR |
≤1.4 |
|
Horizontal Beamwidth |
360 |
|
Vertical Beamwidth |
60 |
|
Max power |
50W |
|
Impedance |
50Ω |
|
Polarization |
Vertical |
|
Lightning Protection |
DC Ground |
|
Weight |
0.75kg |
|
Dimension |
Φ63×220mm |
|
Color |
beige |
|
Connector Type |
N-K or customized |
|
Radiating Element Material |
copper |
|
Max wing velocity |
200Km/h |
* High gain and low VSWR.
* With high quality of radome material, elegant appearance, UV protection.
* With bottom springs protection.
* Suitable for outdoor coverage.
* Fiberglass radome good performance in anti-vibration and resistant to aging.
* All weather operation,stable steel installation kit.
* Frequency range 698~2700MHz,gain 5/10.5 dBi.
