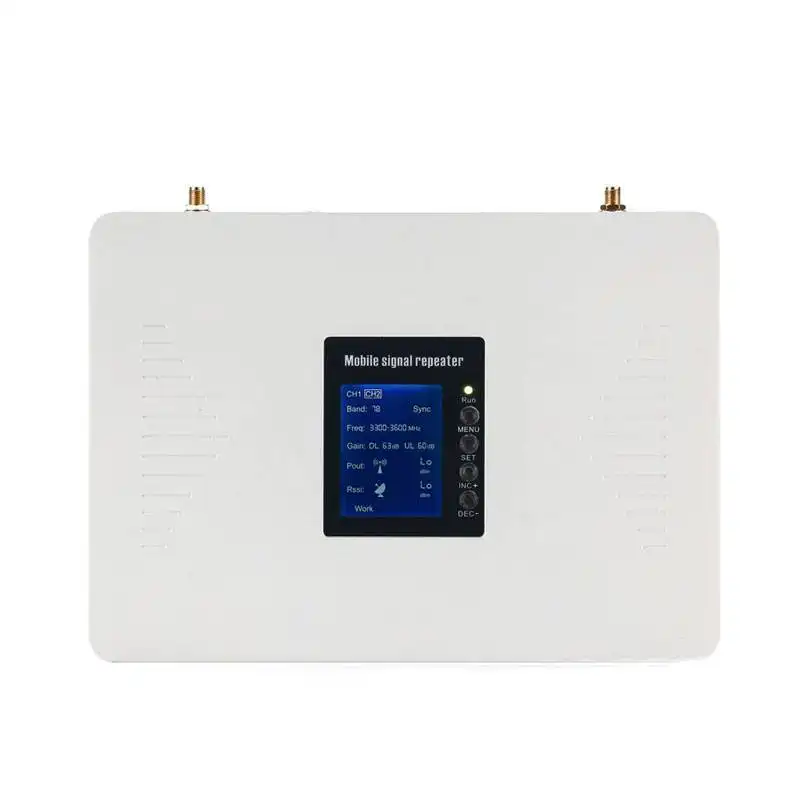

5g Mobile Cell Phone Signal Booster
* Large size LCD display screen, Perfect diaplay equipment operating parameters.
* Support FDD 4G LTE + TDD 5G NR technology.
* Automatic shutdown function, automatically shuts down the downstream output when excessive self-excitation or over power occurs.
* Uplink sleep function, the device enters sleep state when there is no user in the coverage area, reducing interference to the base station.
* MGC gain control function, 1dB step, adjustable gain within 31dB.
* ALC automatic power control function to keep the signal stable.
* Automatic linkage link balance function.
Why Amplitec is the most professional signal booster manufacturer?
-Amplitec handle many engineering cases around the world,we have rich experience in mobile phone signal coverage project.
-Amplitec Own Chinese the largest signal booster manufacturing factory, so our quality control and production capacity leading the world.
-Most of Amplitec's signal booster have certificates,such as CE, RoHS, FCC, etc...
-Amplitec have rich exhibition experience, our signal boosters are recognized in many regions around the world.
What's so special about Amplitec 5g mobile signal booster?
-The first point is Support 4G+5G input and output, not only support 5g frequency. At present, this technology Amplitec is very mature, and we will gradually open the customization of 4g+5g tri-band, quad-band and five-band signal repeater. As the top mobile phone signal amplifier manufacturer in China, it is not a vain reputation.
-The most cost-effective, you can't find products with the same quality and lower prices than ours.
-There is a display screen showing real-time parameters, not only automatic gain control but also manual adjustment of gain and power.
Recommended accessories full sets including:
Item | Uplink | Downlink | |
Frequency Band | LTE | Any one of band 1, 2, 3, 4, 5, 7, 8, 20, 28 | |
NR | Any one of band NR 41, 77, 78 | ||
Bandwidth | Could be customized | ||
Gain | LTE | ≧ 60dB | ≧ 65dB |
NR | ≧ 70dB | ≧ 75dB | |
Output Power | LTE | ≧ 17dBm | ≧ 17dBm |
NR | ≧ 20dBm | ≧ 20dBm | |
Ripple in band | ≦±3dB | ||
Manual gain control range（MGC） | 1~31dB, Step of 1dB | ||
Automatic gain control range（AGC ） | ≥40 dB | ||
VSWR | ≤2dB | ||
Max input power without damage | -10 dBm | ||
Spurious Emission | Fully comply with 3GPP | ||
Input intermodulation | Fully comply with 3GPP | ||
Output intermodulation | Fully comply with 3GPP | ||
Error vector magnitude（EVM） | LTE≦8% RMS, NR≦3.5% RMS | ||
ACRR | 5M | ≧33dB@P ≥ 31 dBm, ≧20dB @ P < 31 dBm | |
10M | ≧33dB@P ≥ 31 dBm, ≧20dB @ P < 31 dBm | ||
Noise figure | ≤6dB | ||
Time delay | ≤1μs | ||
TDD synchronization | Adaptive synchronization | ||
Local maintenance | LCD+ press buttons; Bluetooth connection mobile APP | ||
Remote monitoring | 4G Modem, wireless connection network management cloud platform | ||
Remote Monitoring Item | Operating temperature, Frequency, Gain, DL input level, DL output power, UL input level, UL output power, isolation, Device ID,Alarm information | ||
Remote Set item | ALC threshold, UL and DL gain adjustment, Alarm threshold, Factory setting. | ||
Power consumption | ≦15W | ||
Power supply | AC (110~220V, 20%) to DC 12V/2A | ||
RF connector | SMA -Female | ||
Local control connector | Micro USB | ||
Protect grade | IP40 | ||
Heat dissipation | Aluminum alloy radiator natural heat dissipation | ||
Shell material | ABS | ||
Environment temperature | -10℃ ~ 55℃ | ||
Environment humidity | ≦ 95% | ||
Dimension | 224*160*38mm | ||
Weight | <1.8kg | ||
* Large size LCD display screen, Perfect diaplay equipment operating parameters.
* Support FDD 4G LTE + TDD 5G NR technology.
* Automatic shutdown function, automatically shuts down the downstream output when excessive self-excitation or over power occurs.
* Uplink sleep function, the device enters sleep state when there is no user in the coverage area, reducing interference to the base station.
* MGC gain control function, 1dB step, adjustable gain within 31dB.
* ALC automatic power control function to keep the signal stable.
* Automatic linkage link balance function.
