27dBm Wide Band Cellular Mobile Network 4g Signal Repeater Amplifier
* 99% pass customs clearance, Amplitec have many certificates, such as CE, RoHS, FCC, etc...
* 100% solve mobile cell phone weak signal problem.
* OLED display of system operating status such as frequency, gain, output power and isolation.
* Real time isolation check and alarm.
* Self-oscillation elimination, auto degrading of output power in case of insufficient isolation detected.
* Auto turn-off in case of excessive self oscillation or over input.
* Idle turn-off, auto turn-off of uplink while no active users in the coverage , lowering interference to BTS.
* MGC, Manual control of output gain with 1dB step in the range of 31dB.
* ALC, auto control of output power, ensuring stable coverage.
* Linkage between uplink and downlink gain, keeping uplink and downlink balanced.

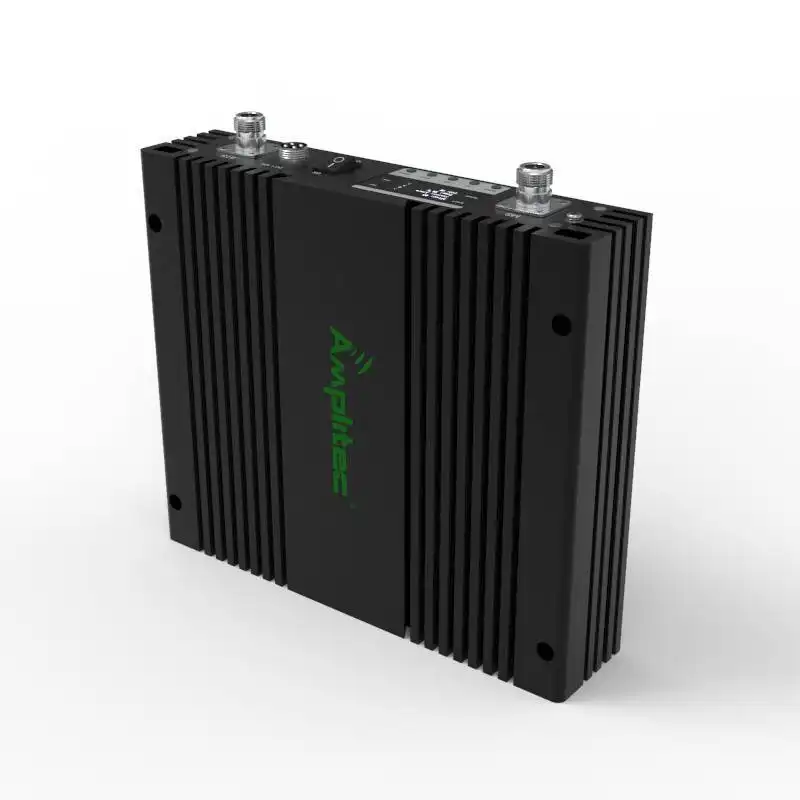

Amplitec C27S signal amplifier can solve many signal problems easily.
Amplitec 2g 3g 4g mobile cell phone signal repeater cover your signal without blind area easily.Our mobile phone signal repeaters all have one year warranty.
27dBm high power,75dB high gain is wide-used in Car park,Office building,Whole house coverage etc,.
Amplitec has a professional team,we promise to solve everyone signal problems and recommend the best choice for buyer.
Amplitec have cooperation with major mobile cellphone operators of the world.
Amplitec have more than 20 years experience in signal repeater,we are the best repeater manufacturer of the world.
Model | C27S-Bx C27S-BxBx C27S-BxBxBx |
Frequency Band | Any one in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ C27S-Bx Any two in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ C27S-BxBx Any three in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 @ C27S-BxBxBx |
Bandwidth | Full Bandwidth |
Gain | UL 75dB , DL 80dB |
Output Power | UL 23dBm, DL 27dBm |
Gain Attenuate | 1~31dB, Step of 1dB |
ALC Control Range | ≥30dB |
VSWR | ≤2.0 |
Spurious Emission | ≤-36dBm @ 9KHz~1GHz, ≤-30dBm @ 1GHz~12.75GHz |
ACRR | Fully comply with 3GPP |
EVM | Fully comply with 3GPP |
PCDE | Fully comply with 3GPP |
Noise Figure | ≤6dB @ C27S-Bx ≤8dB @ C27S-BxBx ≤8dB @ C27S-BxBxBx |
Group Delay | ≤1.5μs |
Power Supply | DC 27V /2A @ C27S-Bx DC 27V /3A @ C27S-BxBx DC 27V /5A @ C27S-BxBxBx |
Dimension | 310*268*58mm @ C27S-Bx 205*268*96mm @ C27S-BxBx 310*268*96mm @ C27S-BxBxBx |
Weight | <4.5kg @ C27S-Bx <6.5kg @ C27S-BxBx <9.0kg @ C27S-BxBxBx |
Note：The letter "x" means the 3gpp 4G band number: 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 | |
* 99% pass customs clearance, Amplitec have many certificates, such as CE, RoHS, FCC, etc...
* 100% solve mobile cell phone weak signal problem.
* OLED display of system operating status such as frequency, gain, output power and isolation.
* Real time isolation check and alarm.
* Self-oscillation elimination, auto degrading of output power in case of insufficient isolation detected.
* Auto turn-off in case of excessive self oscillation or over input.
* Idle turn-off, auto turn-off of uplink while no active users in the coverage , lowering interference to BTS.
* MGC, Manual control of output gain with 1dB step in the range of 31dB.
* ALC, auto control of output power, ensuring stable coverage.
* Linkage between uplink and downlink gain, keeping uplink and downlink balanced.
