Specialize in Signal Repeater & Jammer R&D and manufacturing since 2006

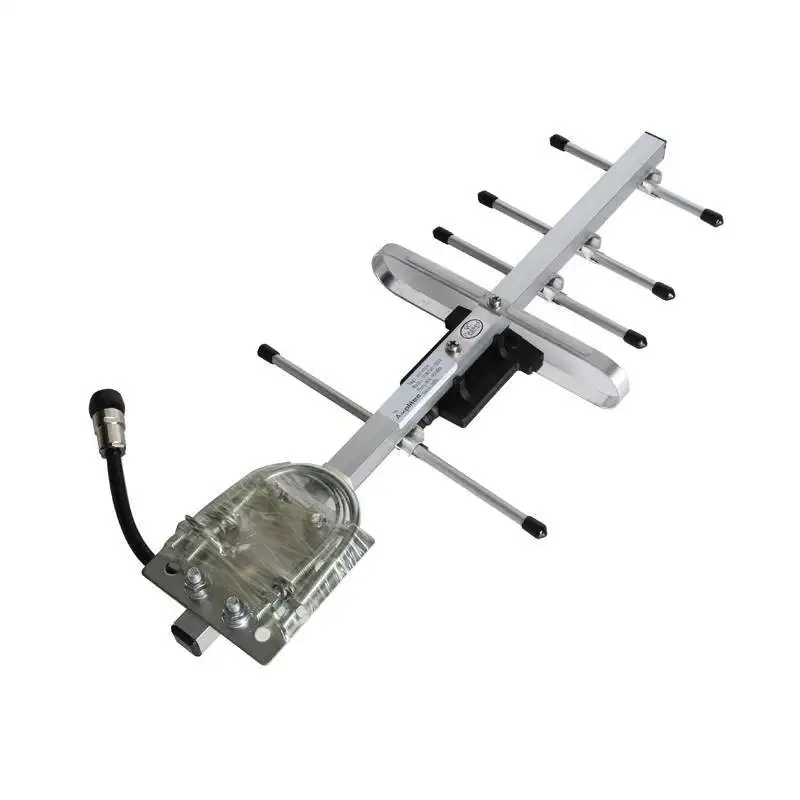

9dBi Yagi Antenna 1
9dBi Yagi Antenna 1

9dBi Yagi Antenna

9dBi Yagi Antenna

* Wide band, high gain and low VSWR.

* High quality aluminum alloy material.

* Good environmental adaptability.

* With cable leads.

* Can be installed horizontally or vertically.

    oops...!

    no product data.

    Go to homepage

    Yagi antenna features good direction and high gain, especially suitable for direction detection and long distance communication. Yagi antenna is suitable for point to point transmission, and installed on pole.
    When used in point to point transmission, installation point and the receiving point must be in a straight line of sight range without any obstacle; when commissioning, the direction must align. The more accurate the pointing direction is, the higher the utility ratio is. 351156781252973

    MODEL

    OY8096-0954

    OY1800-0954

    OY1900-0954

    Frequency

    806-960MHz

    1710-1880MHz

    1850-1990MHz

    Gain

    9dBi

    VSWR

    ≤1.5

    Max power

    100W

    Impedance

    50Ω

    Polarization

    Vertical

    Horizontal Beamwidth

    54°

    Vertical Beamwidth

    48°

    Front to Back Ratio

    ≥14dB

    Lightning Protection

    DC Ground

    Weight

    0.65kg

    0.53kg

    0.53kg

    Dimension

    400mm

    420mm

    380mm

    Connector Type

    N-Female or customized

    Terminal line

    Black 5D-FB,L=300mm

    hold pole diameter

    φ30-50mm


    * Wide band, high gain and low VSWR.

    * High quality aluminum alloy material.

    * Good environmental adaptability.

    * With cable leads.

    * Can be installed horizontally or vertically.

    Project Case:

    9dBi Yagi Antenna 2


    9dBi Yagi Antenna 3
