Specialize in Signal Repeater & Jammer R&D and manufacturing since 2006

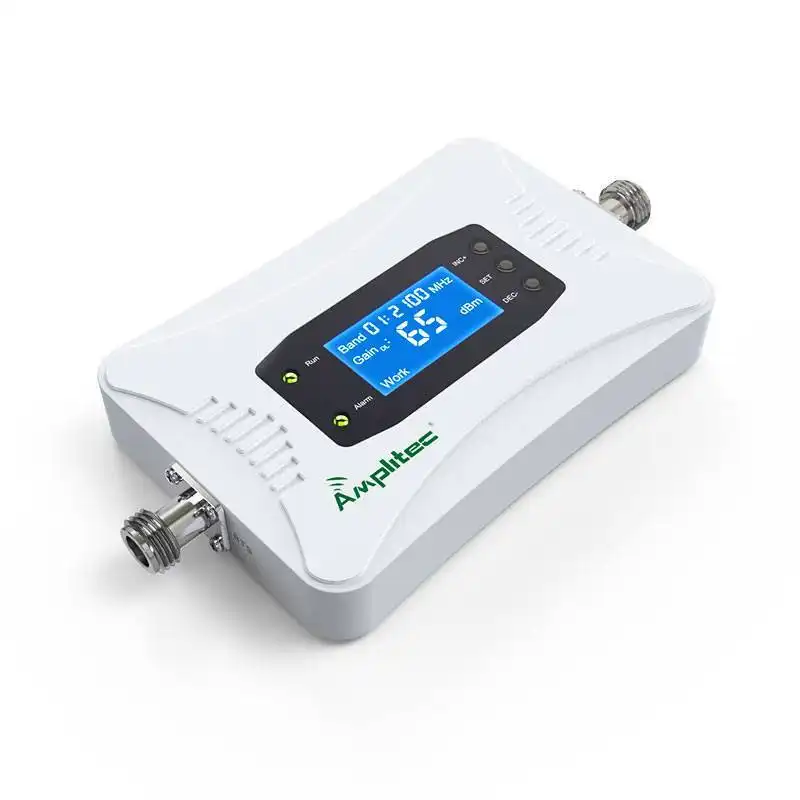

China Best Cellular Repeditor Cell Phone Booster Boster 3g 4g Lte Amplifier For Operator
* 99% pass customs clearance,Amplitec have many certificates,such as CE,RoHS,FCC,etc...
* 100% solve mobile cell phone weak signal problem.
* C13L mobile network signal repeater easy to cover over home 200-600m2 and easy to install.
* LCD display of operating figures.
* Real time isolation check and alarm.
* Self oscillation elimination, auto degrading of output power in case of insufficient isolation detected.
* Auto turn-off in case of excessive self oscillation or over input.
* Idle turn-off, auto turn-off of uplink while no active users in the coverage , lowering interference to BTS.
* MGC, Manual control of output gain with 1dB step in the range of 31dB.
* ALC, auto control of output power for stable coverage.
* Linkage between uplink and downlink gain, keeping uplink and downlink balanced.
* Compact size, low power consumption and easy to install.
-Why Amplitec is the most professional signal booster manufacturer?
-Amplitec handle many engineering cases around the world,we have rich experience in mobile phone signal coverage project.
-Amplitec Own Chinese the largest signal booster manufacturing factory,so our quality control and production capacity leading the world.
-Amplitec have rich exhibition experience,our signal boosters are recognized in many regions around the world.
China The Best Cellular Repeditor Cell Phone Booster Boster 3g 4g Lte Amplifier For Operator
-All parameters and indicators of C13L conform to the operator standards of various countries.
-One-year warranty, average service life of five years.
-Possess various certificates, such as CE/FCC/RoHS certificates, no pressure on customs clearance, welcome to join us as a partner.
-Deliberately increase the uplink to 17dBm to ensure that it can be transmitted back to the base station and ensure 100% signal coverage in weak signal areas.
-Small in size, powerful in function, and cost-effective.
-Recommended repeater antennas accessories full sets including:
Model | C13L-Bx |
Frequency Band | Any one in band 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 |
Bandwidth | Full Bandwidth |
Gain | UL 60dB , DL 65dB |
Output Power | UL 17dBm, DL 13dBm |
Gain Attenuate | 1~31dB, Step of 1dB |
ALC Control Range | ≥30dB |
VSWR | ≤2.0 |
Spurious Emission | ≤-36dBm @ 9KHz~1GHz, ≤-30dBm @ 1GHz~12.75GHz |
ACRR | Fully comply with 3GPP |
EVM | Fully comply with 3GPP |
PCDE | Fully comply with 3GPP |
Noise Figure | ≤6.0dB |
Group Delay | ≤1.5μs |
Power Supply | DC 5V /1A |
Dimension | 130*90*19.5mm |
Weight | <0.4kg |
Note：The letter "x" means the 3gpp 4G band number: 1, 2, 3, 4, 5, 7, 8, 20, 25, 28, 66 | |
* 99% pass customs clearance,Amplitec have many certificates,such as CE,RoHS,FCC,etc...
* 100% solve mobile cell phone weak signal problem.
* C13L mobile network signal repeater easy to cover over home 200-600m2 and easy to install.
* LCD display of operating figures.
* Real time isolation check and alarm.
* Self oscillation elimination, auto degrading of output power in case of insufficient isolation detected.
* Auto turn-off in case of excessive self oscillation or over input.
* Idle turn-off, auto turn-off of uplink while no active users in the coverage , lowering interference to BTS.
* MGC, Manual control of output gain with 1dB step in the range of 31dB.
* ALC, auto control of output power for stable coverage.
* Linkage between uplink and downlink gain, keeping uplink and downlink balanced.
* Compact size, low power consumption and easy to install.
