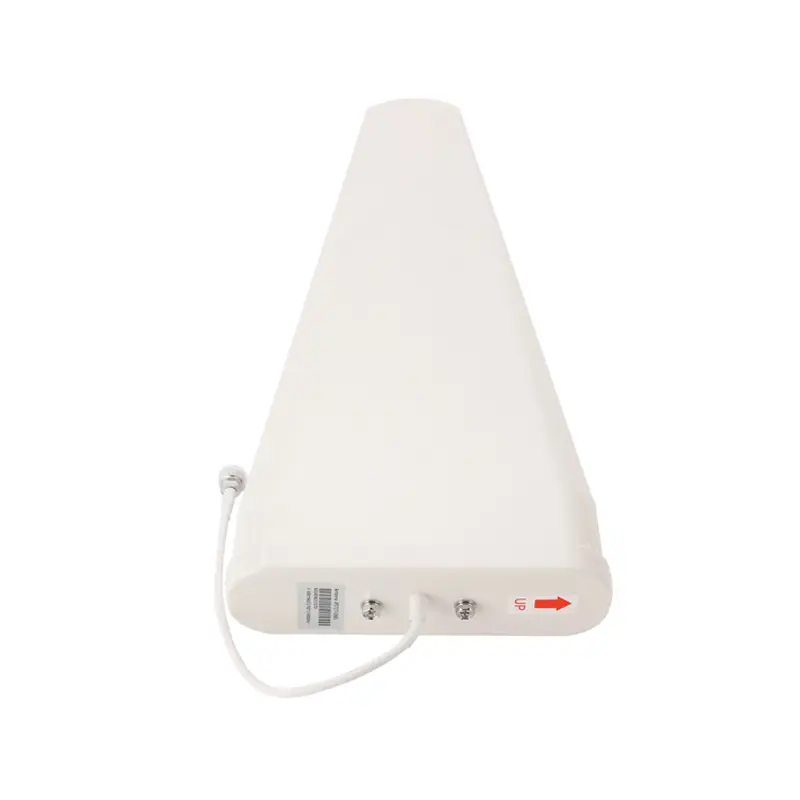

* Outdoor cellular signal log periodic antenna,frequency range 698~2700mhz,gain 9/11dBi,widely used as the donor antenna to receiving the signal from base station for mobile signal booster.
* Amplitec mobile cell phone signal log periodic antenna is simple installation and stable performance.
* Amplitec signal receiver log periodic anntena is small size and light weight design,but high gain 9/11dBi.
* Amplitec log periodic antenna suitable for indoor and outdoor wall mounting.
-Amplitec handle many engineering cases around the world,we have rich experience in mobile phone signal coverage project.
-Amplitec Own Chinese the largest signal antennas manufacturing factory,so our quality control and production capacity leading the world.
-Most of Amplitec's signal antennas and booster have certificates,such as CE,RoHS,FCC,etc...
-Amplitec have rich exhibition experience,our signal antennas and boosters are recognized in many regions around the world.
-Amplitec promise our LPDA is true 9/11dBi,if you find fake one we will compensate tenfold price for you.
-Other suppliers their log periodic dipole antenna mark as 5dBi,but actually they only 2dBi or 3dBi.
-Amplitec log periodic dipole antenna is waterproof and preservative.
-Other suppliers their log periodic dipole antenna using effect in rainy days will be poor and easy to damage.
-Amplitec is a professional and honest supplier,our antennas have one year quality warranty assurance.
-Other suppliers only sell the antenna to you,but not responsible for after-sales.
Frequency Range |
698-960 MHz/1710-2700 MHz |
698-960 MHz/1710-2700 MHz |
Gain |
11dBi |
9/10dBi |
VSWR |
≤ 1.5 |
≤ 1.5 |
Polarization |
Vertical |
Vertical |
Front to Back Ratio |
≥ 15dB |
≥ 15dB |
Horizontal Beamwidth |
65/50° |
65/50° |
Vertical Beamwidth |
50/40° |
50/40° |
Input Impedance |
50Ω |
50Ω |
Max. Power |
100W |
100W |
Lightning Protection |
DC Ground |
DC Ground |
Connector |
N-Female |
N-Female |
Dimensions |
410x215x65 mm |
295x215x65 mm |
Terminal Line |
White 3D-FB, L=350mm |
White 3D-FB, L=350mm |
Weight |
≤ 1 kg |
≤ 0.8 kg |
Reflector Material |
Aluminum |
Aluminum |
Radome Material |
ABS |
ABS |
Rated Wind Velocity |
210 km/h |
210 km/h |
Operating Temperature |
-40°C to +65 °C |
-40°C to +65 °C |
Mounting Pole |
Ø38~Ø52mm |
Ø38~Ø52mm |
* Outdoor cellular signal log periodic antenna,frequency range 698~2700mhz,gain 9/11dBi,widely used as the donor antenna to receiving the signal from base station for mobile signal booster.
* Amplitec mobile cell phone signal log periodic antenna is simple installation and stable performance.
* Amplitec signal receiver log periodic anntena is small size and light weight design,but high gain 9/11dBi.
* Amplitec log periodic antenna suitable for indoor and outdoor wall mounting.
