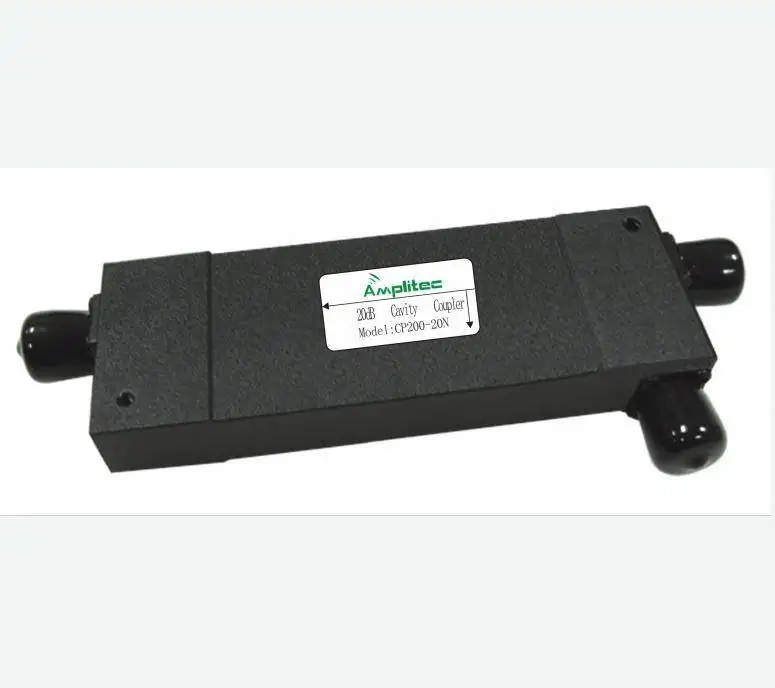

AMPLITEC Directional Coupler (800-2700) Low loss
* Wide Frequency Band
* Low Insertion Loss
* Low VSWR
* Low Intermodulation
* Widely used in IBS & DAS
* Guaranteed one year standard
Coupler is used to distributed wire RF signal according to the requirements,and it plays a role as to seperate signal into 2 parts unevenly (called trunk-side and coupling end,or may called straight end and coupling end)
|
Model No. |
CP300-6N-0827 |
CP300-8N-0827 |
CP300-10N-0827 |
CP300-15N-0827 |
CP300-20N-0827 |
CP300-30N-0827 |
|
Frequency (MHz) |
800-2700 |
|||||
|
Insertion Loss |
≦2.0 |
≦1.45 |
≦0.8 |
≦0.8 |
≦0.4 |
≦0.4 |
|
Coupling |
6 |
8 |
10 |
15 |
20 |
30 |
|
Accuracy |
±0.8 |
±0.8 |
±1.0 |
±1.0 |
±1.2 |
±1.5 |
|
Isolation |
≧25 |
≧27 |
≧28 |
≧32 |
≧35 |
≧45 |
|
VSWR |
≦1.25 (Type N); ≦1.30 (Type DIN) |
|||||
|
PIM |
≦-140dBc@2*43dBm |
|||||
|
Power |
300W (Type N) |
|||||
|
Impedance |
50 ohm |
|||||
|
RF Connector |
N-female |
|||||
|
Color |
Black-plated |
|||||
|
Temperature |
-20~+70 |
|||||
|
Application |
Indoor or Outdoor, IP60 or IP65 |
|||||
|
Humidity |
5%-95% |
|||||
|
Weight(kg) |
0.23 (Type N) |
|||||
* Wide Frequency Band
* Low Insertion Loss
* Low VSWR
* Low Intermodulation
* Widely used in IBS & DAS
* Guaranteed one year standard
